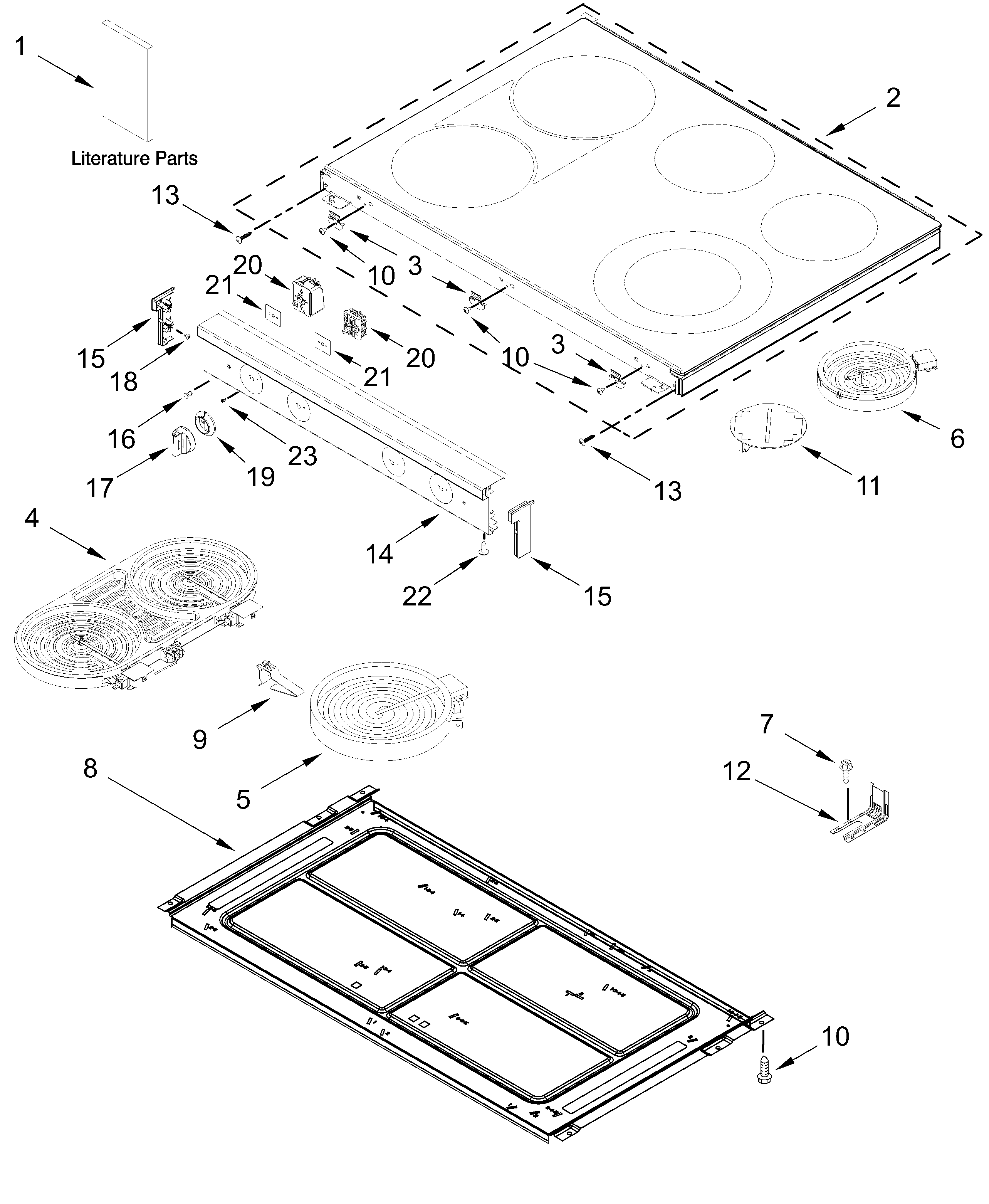

WFES7530RV0 COOKTOP PARTSadmin2025-04-26T11:25:00+00:00WFES7530RV0 COOKTOP PARTS
Products
| Position | Product |
|---|
| (Left Front, Left Rear) |
| HARNESS, WIRE |
| HARNESS, HIDDEN BAKE |
| OWNERS MANUAL |
| TECH, SHEET |
| ENDCAP-PNL |
| KNOB (DUAL, (BLACK STAINLESS)) |
| PANL-MNFLD |
| ENDCAP-PNL |
| ENDCAP-PNL |
| KNOB (SINGLE, (STAINLESS)) |
| KNOB (DUAL, (STAINLESS)) |
| (Right Front) |
| (Center Rear) |
| (Right Rear) |
| HARNESS, MAIN |
| HARNESS, COOKTOP |
| HARNESS, FRONT DUAL |
| QUICK START GUIDE |
| FOLLOWING PARTS NOT ILLUSTRATED |
| BEZEL (STAINLESS) |
| 1 | Literature Parts |
| 2 | COOKTOP |
| 3 | BRACKET, COOKTOP |
| 4 | BRIDGE, (1800W, 800W) (LEFT FRONT AND LEFT REAR) |
| 5 | ELEMENT (3000W) (RIGHT FRONT) |
| 6 | ELEMENT (SINGLE, 1200W) (RIGHT REAR) |
| 7 | SCREW, ANTI-TIP KIT |
| 8 | PAN, RADIANT ELEMENT |
| 9 | W11663556 Whirlpool Spring Assembly |
| 10 | WP3196557 Whirlpool Screw |
| 11 | ELEMENT, WARM ZONE (CENTER) |
| 12 | W11447673 Whirlpool Range Tip Anchor |
| 13 | Screw |
| 14 | PANL-MNFLD |
| 15 | ENDCAP-PNL |
| 16 | WP3196068 Whirlpool Light Lens |
| 17 | KNOB (SINGLE, (BLACK STAINLESS)) |
| 18 | W11245710 Whirlpool Refrigerator Screw |
| 19 | BEZEL (BLACK STAINLESS) |
| 20 | SWITCH-INF |
| 21 | GASKET, SWITCH |
| 22 | SCREW |
| 23 | 7101P676-60 Whirlpool Screw |
