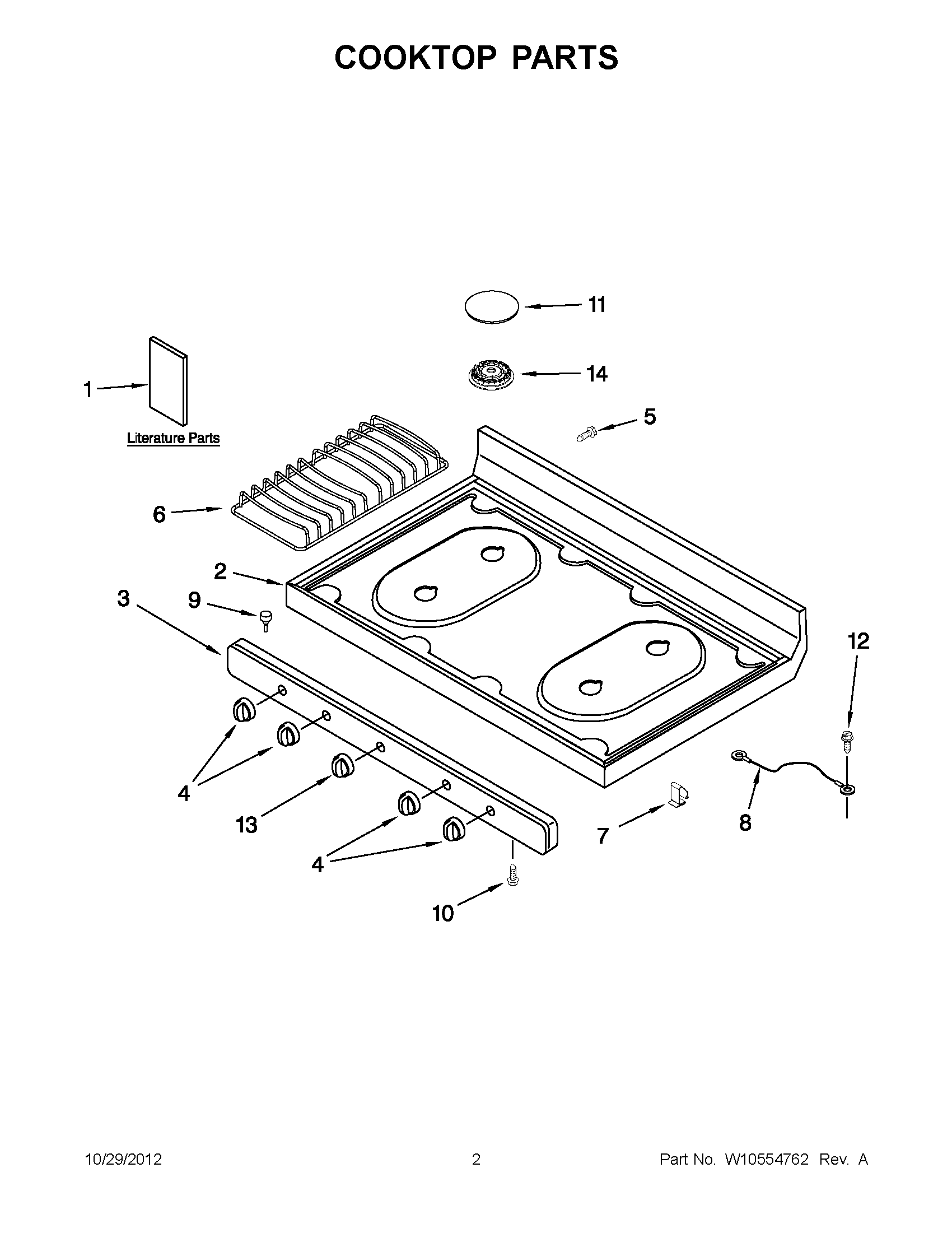

WFG111SVQ1 01 – COOKTOP PARTS

WFG111SVQ1 01 – COOKTOP PARTS

Written by

in

WFG111SVQ1 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Tech Sheet
1INSTRUCTIONS, INSTALLATION
1Safer Cooking Tips
2WP98017619W Whirlpool Cooktop
3Panel, Manifold
4WPW10483313 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
6WPW10180089 Whirlpool Burner Grate
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13WPW10483330 Whirlpool Knob
14WPW10243396 Whirlpool Burner Top
