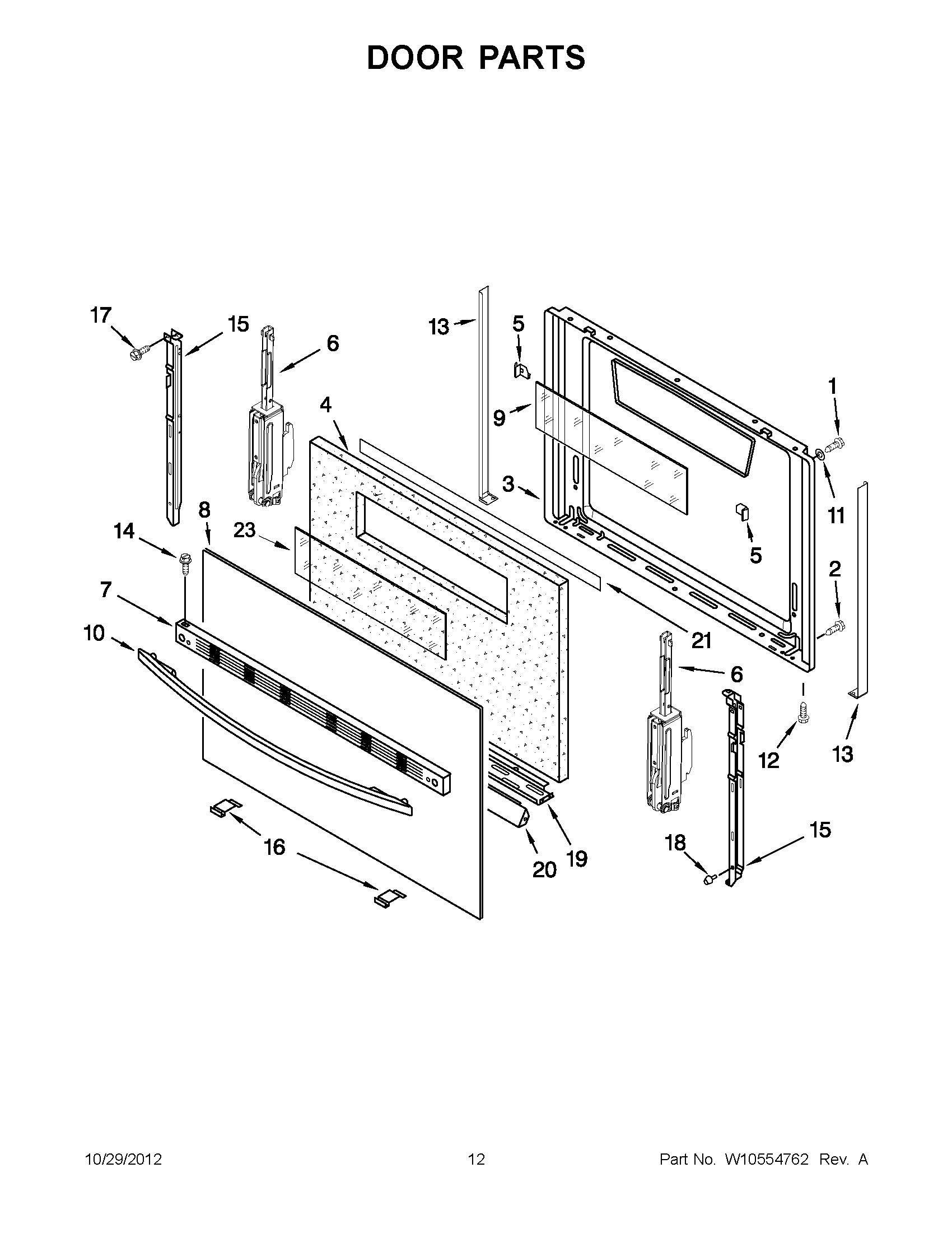

WFG111SVQ1 06 – DOOR PARTS

Products

Position	Product
1	SCREW
2	W11206744 Whirlpool Screw
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (Right)
7	WHITE
8	Panel, Door
9	WP98006801 Whirlpool Door Glass
10	WP98017790W Whirlpool Door Handle
11	Actuator (2)
12	WP59002061 Whirlpool Microwave Screw
13	Side Trim, Door (Right Hand)
13	Side Trim, Door (Left Hand)
14	WP98008544 Whirlpool Screw Assembly
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004227 Whirlpool Oven Bumper
19	98004938 Whirlpool Oven Retainer
20	Insulation, Retainer-Bottom
21	Retainer, Upper (2)
22	Insulation, Door
