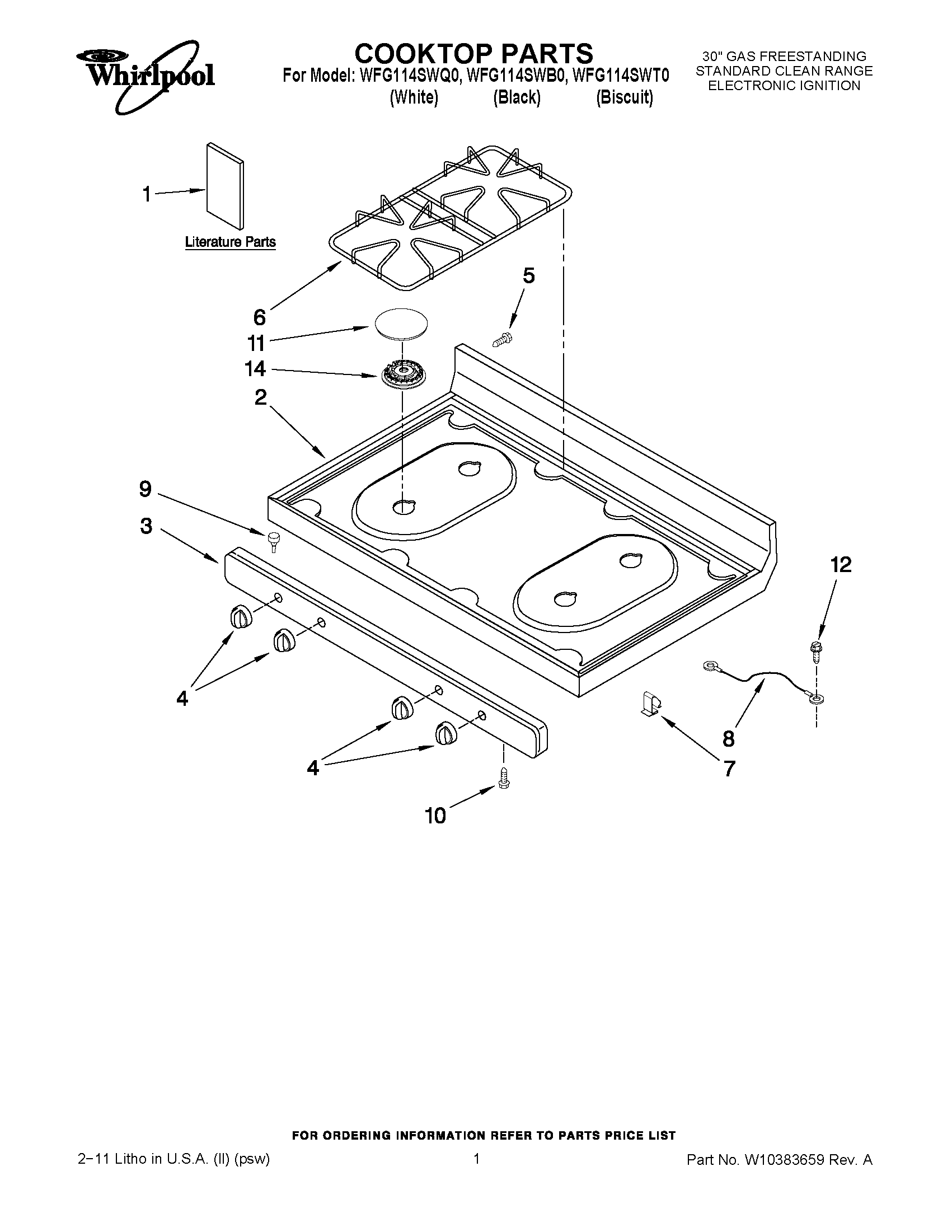

WFG114SWB0 01 – COOKTOP PARTS

WFG114SWB0 01 – COOKTOP PARTS

Written by

in

WFG114SWB0 01 – COOKTOP PARTS

Products

PositionProduct
1SHEET, TECH
1Instruct, Install (English (Template))
1Safer Cooking Tips
1Guide, Use & Care
2WP98017619W Whirlpool Cooktop
2Cooktop (Black)
2Cooktop (Biscuit)
3W10205696 Whirlpool Manifold Panel
3W10205698 Whirlpool Panel Manufactured
3Panel, Manifold (White)
4WP98006102 Whirlpool Knob
4WP98008208 Whirlpool Knob
4WP98006100 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
6W10333861A Whirlpool Grate Kit
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
14WPW10243396 Whirlpool Burner Top
