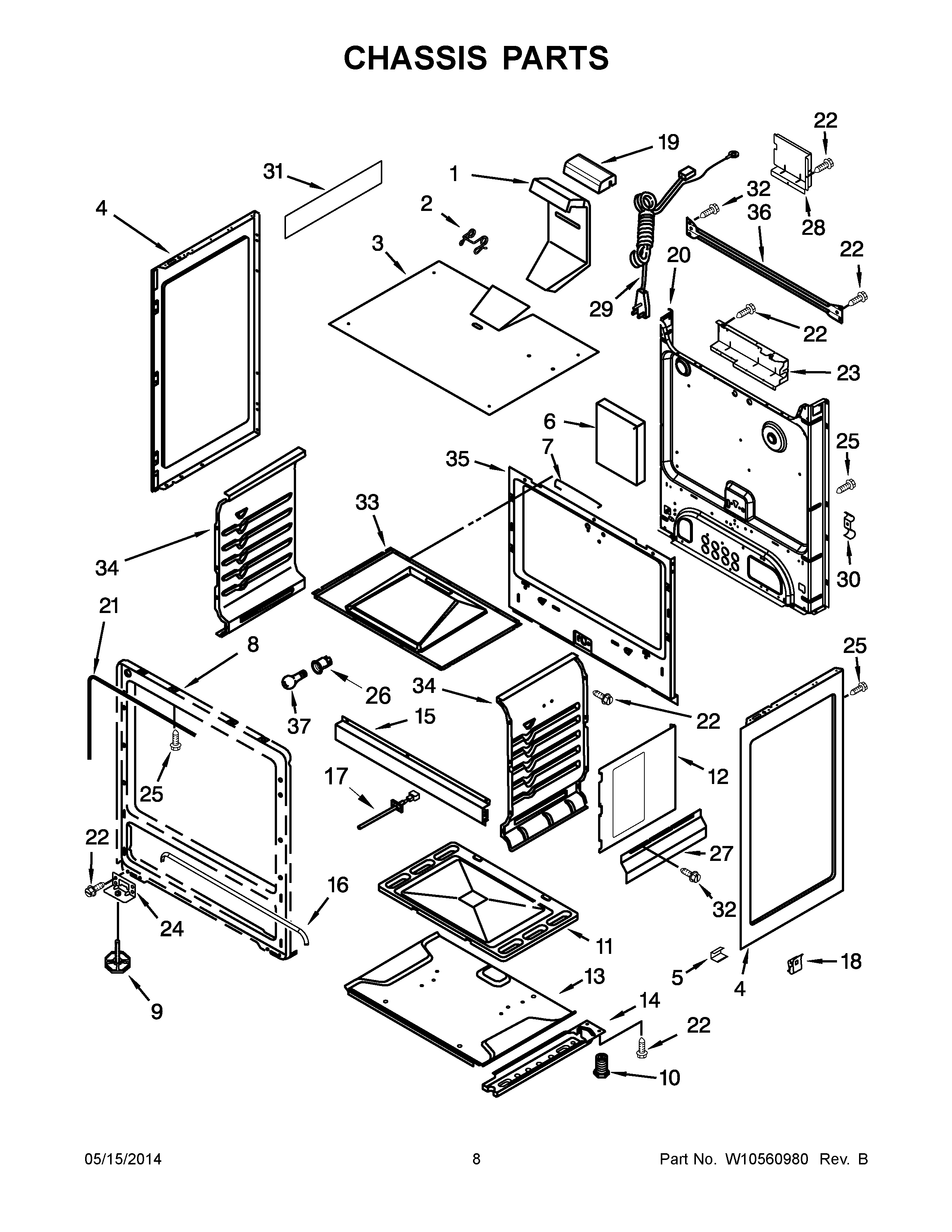

WFG114SWB1 05 – CHASSIS PARTS

Products

Position	Product
NI	W11706555 Whirlpool Insulation
NI	Insulation, Back
1	WPW10116396 Whirlpool Flue Box
2	98013690 Whirlpool Clip
3	SHIELD, TOP INSULATION
4	WP98010042 Whirlpool Side Panel
4	98010045 Whirlpool Oven Side Panel
4	WP98010043 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	Counterweight
7	98006739 Whirlpool Oven Wire Tie
8	W10166434 Whirlpool Front Frame
9	WP3196037 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP98004449 Whirlpool Oven Bottom
12	Baffle, Side (2)
13	98003847 Whirlpool Oven Bottom Baffle
14	98003830 Whirlpool Rail Base
15	98012175 Whirlpool Oven Support
16	BROILER, DOOR SEAL
17	WPW10181986 Whirlpool Oven Sensor
18	98009179 Whirlpool Oven Nut
19	98007205 Whirlpool Oven Vent Cap
20	98015100 Whirlpool Oven Rear Cover
21	WPW10217472 Whirlpool Door Gasket
22	W10837731 Whirlpool Screw Assembly
23	SAFETY VALVE, REAR COVER
24	98007126 Whirlpool Oven Stand Bracket
25	SCREW
26	W10856866 Whirlpool Light Socket
27	98007191 Whirlpool Oven Heat Shield
28	W10544177 Whirlpool Light Cover
29	W11173616 Whirlpool Power Cord
30	98005026 Whirlpool Oven Clip
31	98015346 Whirlpool Insulation
32	Screw
33	98004447 Whirlpool Top
34	98004452 Whirlpool Oven Side
34	98004451 Whirlpool Oven Side Panel
35	98013777 Whirlpool Back Liner
36	98015363 Whirlpool Oven Support
37	RANGE ONLY 40W 120V APPL BULB
