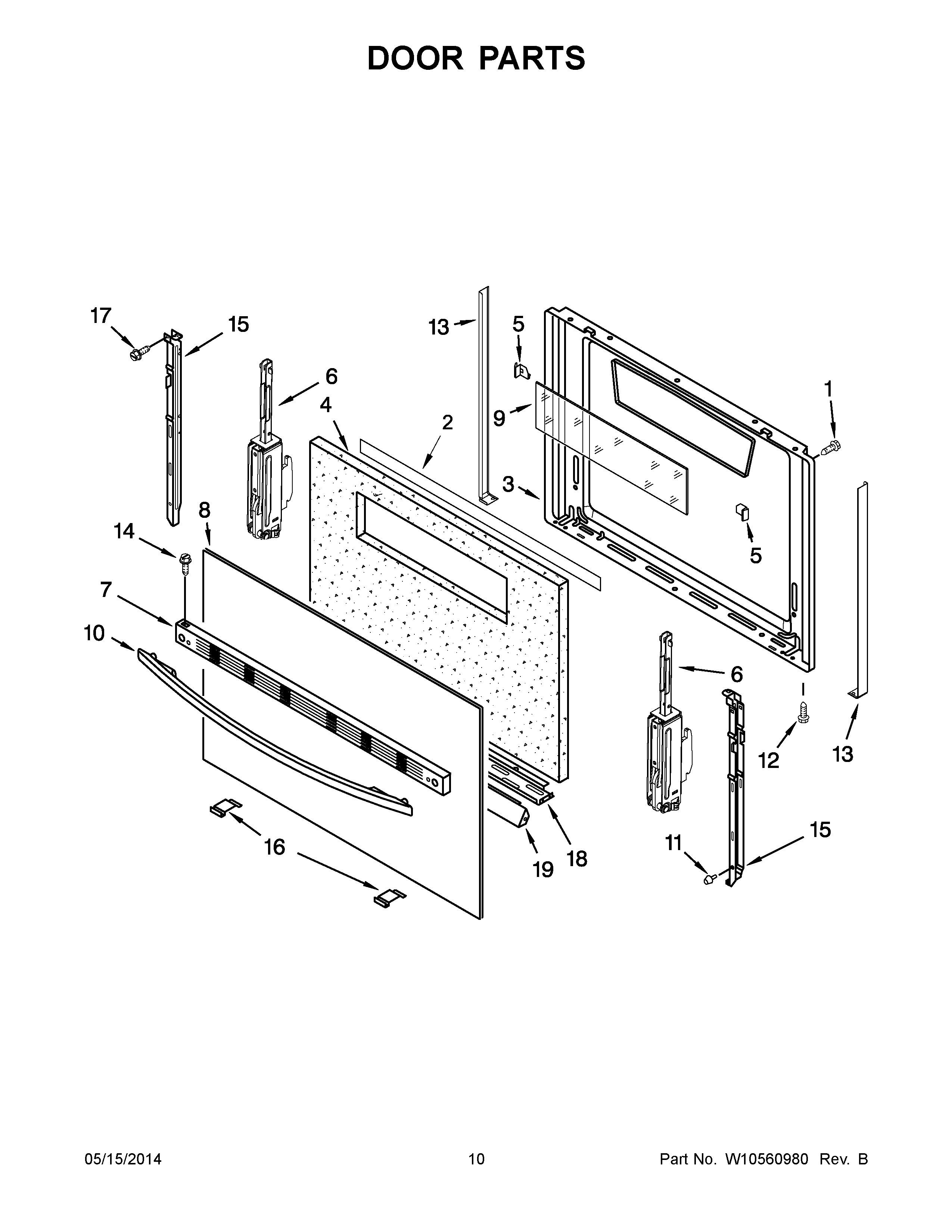

WFG114SWB1 06 – DOOR PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	98012220 Whirlpool Oven Door Pin
1	SCREW
2	W10544222 Whirlpool Retainer Clip
3	98010182 Whirlpool Door Liner
4	Insulation, Door
5	98004952 Whirlpool Oven Clip
5	98004953 Whirlpool Clip
6	Hinge, Door (Right)
7	Trim, Top Door (Biscuit)
7	WHITE
7	Trim, Top Door (Black)
8	Panel, Door
8	Panel, Door (Black)
8	Panel, Door (Biscuit)
9	WP98006801 Whirlpool Door Glass
10	WP98017790W Whirlpool Door Handle
10	Handle, Oven Door (Black)
10	Handle, Oven Door (Biscuit)
11	98004227 Whirlpool Oven Bumper
12	WP59002061 Whirlpool Microwave Screw
13	Side Trim, Door (2) (Black Right)
13	Side Trim, Door (2) (Black Left)
13	98016795T Whirlpool Door Trim
13	98016787T Whirlpool Door Trim
13	Side Trim, Door (Right Hand)
13	Side Trim, Door (Left Hand)
14	WP98008544 Whirlpool Screw Assembly
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	98010184 Whirlpool Oven Door Trim
16	WP98010185 Whirlpool Door Trim
16	WP98010187 Whirlpool Range Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	98004938 Whirlpool Oven Retainer
19	Insulation, Retainer-Bottom
