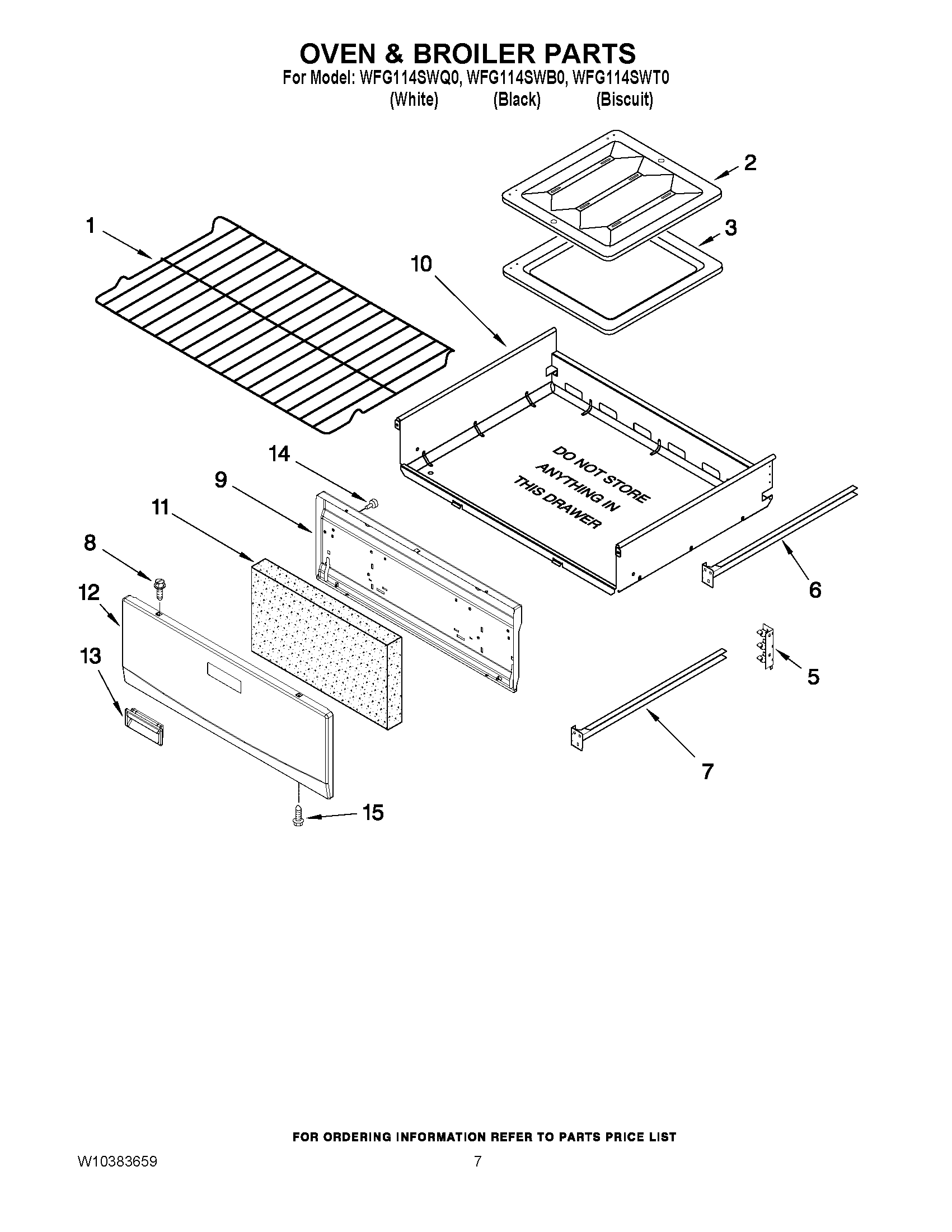

WFG114SWQ0 05 – OVEN & BROILER PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
5	98016666 Whirlpool Oven Support
5	98016664 Whirlpool Oven Support Assembly
6	WPW10206639 Whirlpool Drawer Guide
6	WPW10206640 Whirlpool Drawer Guide
7	WPW10206641 Whirlpool Drawer Guide
7	W10206642 Whirlpool Drawer Guide
8	WP3400832 Whirlpool Screw
8	3196166 Whirlpool Screw
8	Screw (Biscuit)
9	LINER, DOOR
10	Drawer, Broiler
11	W10137230 Whirlpool Insulation
12	98009341 Whirlpool Drawer Panel
12	Panel, Door (White)
12	98009343 Whirlpool Oven Black Drawer Panel
13	WP3405190 Whirlpool Handle Assembly
13	WP3405189 Whirlpool Handle
13	WP3405184 Whirlpool White Door Handle
14	BUMPER, DOOR
15	WP3400805 Whirlpool Screw Assembly
