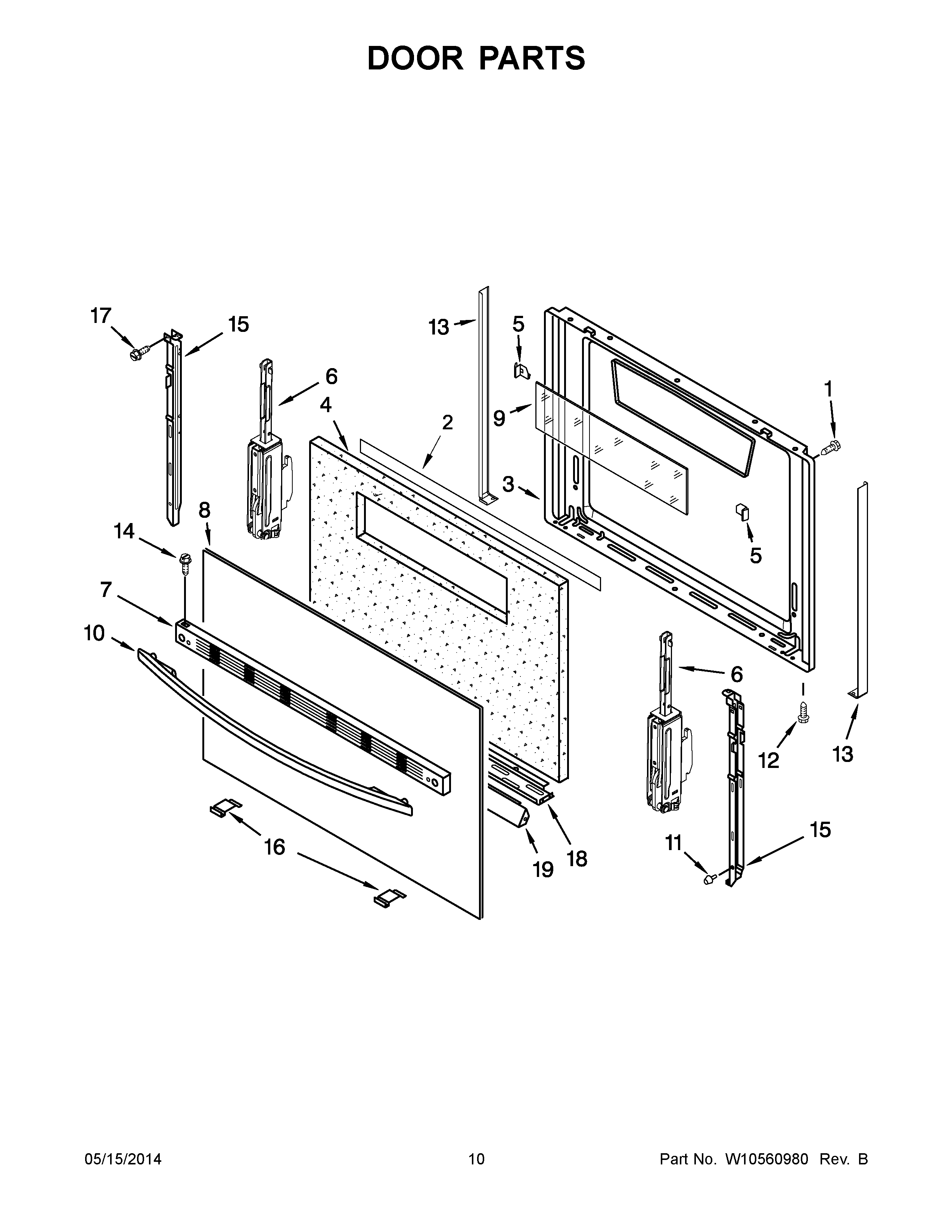

WFG114SWT1 06 – DOOR PARTSadmin2025-04-26T11:27:21+00:00WFG114SWT1 06 – DOOR PARTS
Products
| Position | Product |
|---|
| NI | CABINET (NOT A SERVICEABLE PART) |
| NI | 98012220 Whirlpool Oven Door Pin |
| 1 | SCREW |
| 2 | W10544222 Whirlpool Retainer Clip |
| 3 | 98010182 Whirlpool Door Liner |
| 4 | Insulation, Door |
| 5 | 98004952 Whirlpool Oven Clip |
| 5 | 98004953 Whirlpool Clip |
| 6 | Hinge, Door (Right) |
| 7 | Trim, Top Door (Biscuit) |
| 7 | WHITE |
| 7 | Trim, Top Door (Black) |
| 8 | Panel, Door |
| 8 | Panel, Door (Black) |
| 8 | Panel, Door (Biscuit) |
| 9 | WP98006801 Whirlpool Door Glass |
| 10 | WP98017790W Whirlpool Door Handle |
| 10 | Handle, Oven Door (Black) |
| 10 | Handle, Oven Door (Biscuit) |
| 11 | 98004227 Whirlpool Oven Bumper |
| 12 | WP59002061 Whirlpool Microwave Screw |
| 13 | Side Trim, Door (2) (Black Right) |
| 13 | Side Trim, Door (2) (Black Left) |
| 13 | 98016795T Whirlpool Door Trim |
| 13 | 98016787T Whirlpool Door Trim |
| 13 | Side Trim, Door (Right Hand) |
| 13 | Side Trim, Door (Left Hand) |
| 14 | WP98008544 Whirlpool Screw Assembly |
| 15 | 98004629 Whirlpool Oven Retainer |
| 15 | 98004564 Whirlpool Oven Retainer |
| 16 | 98010184 Whirlpool Oven Door Trim |
| 16 | WP98010185 Whirlpool Door Trim |
| 16 | WP98010187 Whirlpool Range Door Trim |
| 17 | WP3400805 Whirlpool Screw Assembly |
| 18 | 98004938 Whirlpool Oven Retainer |
| 19 | Insulation, Retainer-Bottom |
