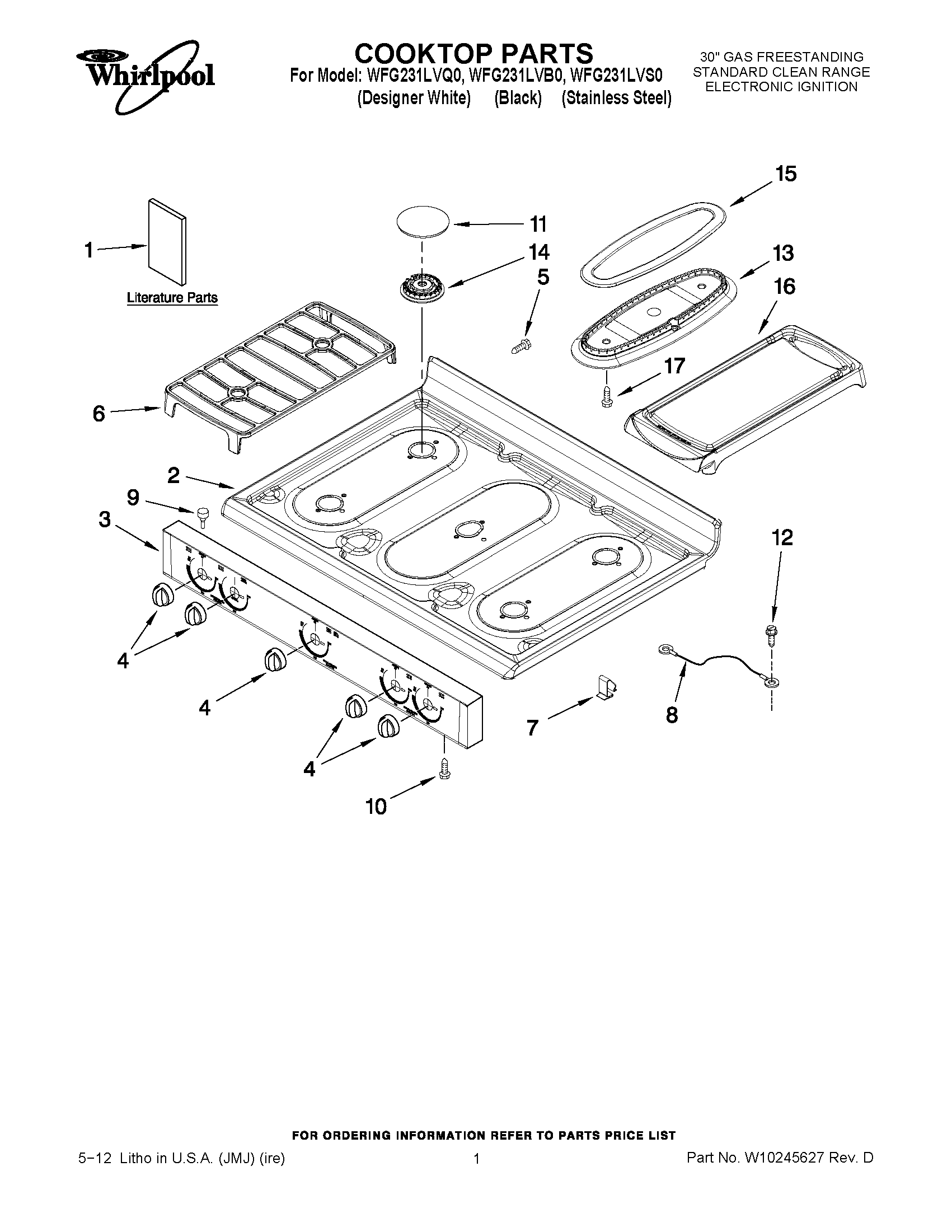

WFG231LVB0 01 – COOKTOP PARTS

WFG231LVB0 01 – COOKTOP PARTS

Written by

in

WFG231LVB0 01 – COOKTOP PARTS

Products

PositionProduct
1SHEET, TECH
1Instruct, Install
1Safer Cooking Tips (French)
1Installation Instr (Template)
1Guide, Use & Care
2Cooktop (Black)
2Cooktop (White)
3Panel, Manifold (Black)
3Panel, Manifold (White)
4WP98006102 Whirlpool Knob
4WP98006100 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
6Grate, Burner (3)
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
1398017539 Whirlpool Top Burner
14WP98017537 Whirlpool Top Burner
15CAP, FISH BURNER
16WPW10133861 Whirlpool Griddle
17Screw (2)
