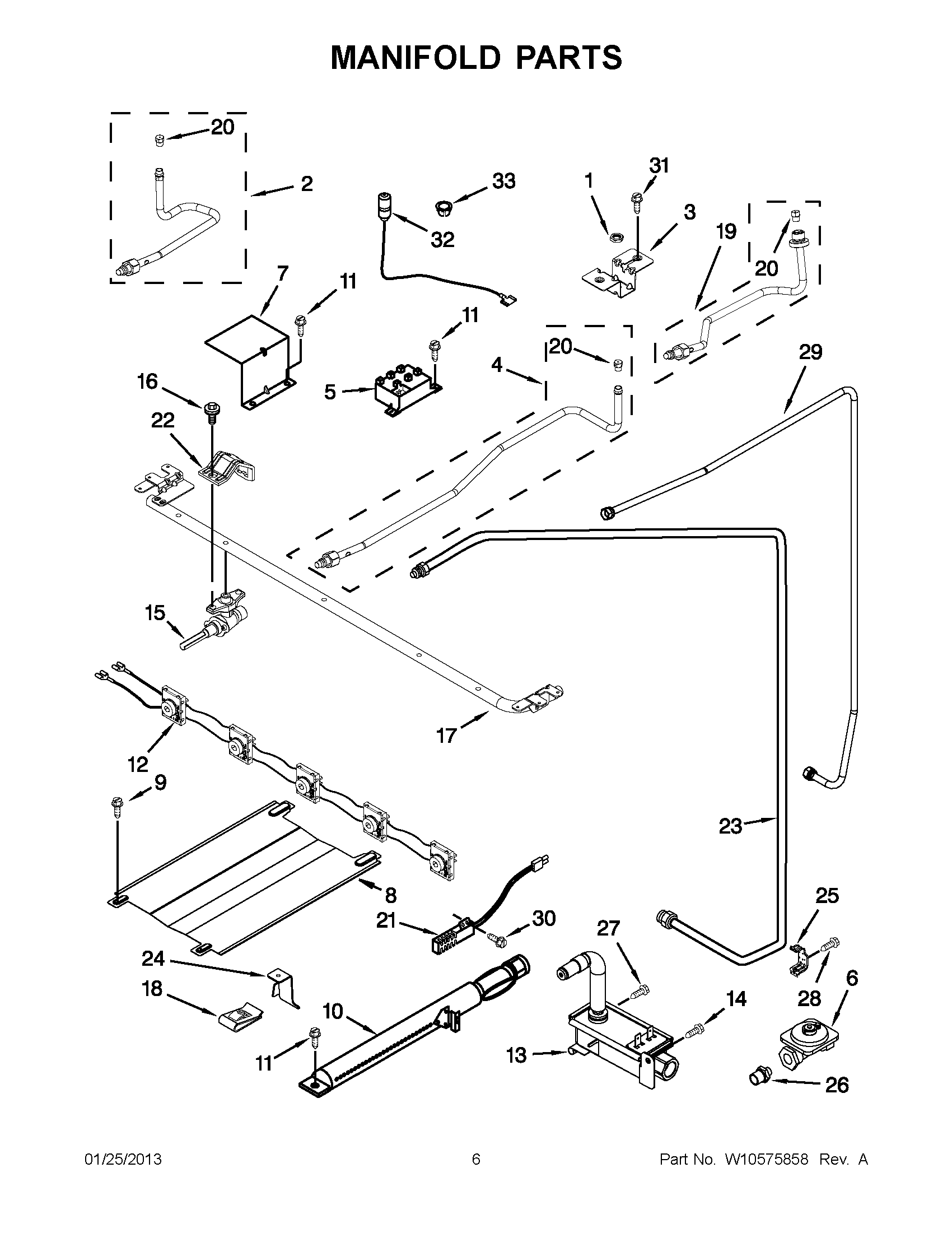

WFG231LVB1 03 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	LP Orifice Kit (For Use With LP)
1	WPY703856 Whirlpool Nut
2	Venturi, Front (2) (LF)
2	W11661107 Whirlpool Range Venturi
3	WP98017741 Whirlpool Mounting Bracket
4	WPW10110342 Whirlpool Venturi
5	W11565127 Whirlpool Spark Module
6	W11346659 Whirlpool Regulator
7	98007192 Whirlpool Cover Model
8	98015099 Whirlpool Oven Burner Baffle
9	SCREW
10	WP98012138 Whirlpool Oven Burner
12	W10361493 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W10837731 Whirlpool Screw Assembly
15	WPW10141709 Whirlpool Burner Valve
15	W10141711 Whirlpool Burner Valve
16	98017517 Whirlpool Oven Screw
17	Pipe, Manifold
18	98009179 Whirlpool Oven Nut
19	W10110345 Whirlpool Venturi
20	W10110355 Whirlpool Orifice
20	WP98017587 Whirlpool Orifice
20	98017586 Whirlpool Oven Orifice
21	W10918546 Whirlpool Oven Range Igniter
22	W10421119 Whirlpool Mounting Bracket
23	WPW10469571 Whirlpool Gas Tubing
24	98013314 Whirlpool Oven Support Bracket
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013634 Whirlpool Oven Screw
28	WP98007225 Whirlpool Screw Assembly
29	WP98017171 Whirlpool Gas Tubing
30	W11676351 Whirlpool Screw
31	W10837674 Whirlpool Screw
32	WPW10209657 Whirlpool Oven Surface Igniter
32	WPW10209656 Whirlpool Surface Ignitor
33	WPW10278150 Whirlpool Clip Assembly
