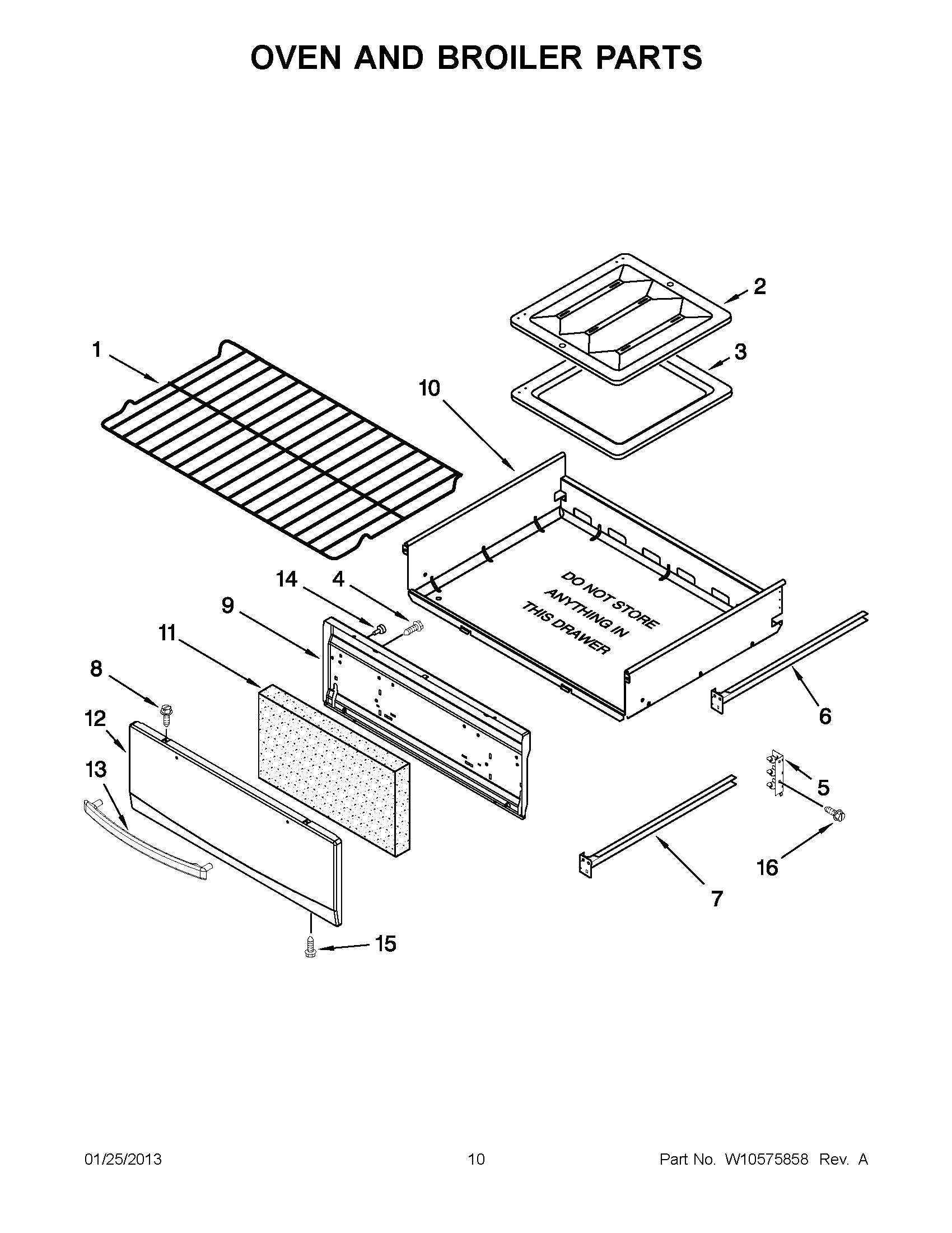

WFG231LVB1 05 – OVEN AND BROILER PARTS

WFG231LVB1 05 – OVEN AND BROILER PARTS

Written by

in

WFG231LVB1 05 – OVEN AND BROILER PARTS

Products

PositionProduct
1RACK, OVEN
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
4Screw
598016664 Whirlpool Oven Support Assembly
598016666 Whirlpool Oven Support
6WPW10206639 Whirlpool Drawer Guide
6WPW10206640 Whirlpool Drawer Guide
7WPW10206641 Whirlpool Drawer Guide
7W10206642 Whirlpool Drawer Guide
83196166 Whirlpool Screw
9LINER, DOOR
10Drawer, Broiler
11W10137230 Whirlpool Insulation
12Panel, Door (Stainless)
12Panel, Door (Black)
12Panel, Door (White)
13WP98004956 Whirlpool Door Handle
13Handle, Brlr Door (White)
14BUMPER, DOOR
15WP3400805 Whirlpool Screw Assembly
16WP98008545 Whirlpool Screw
