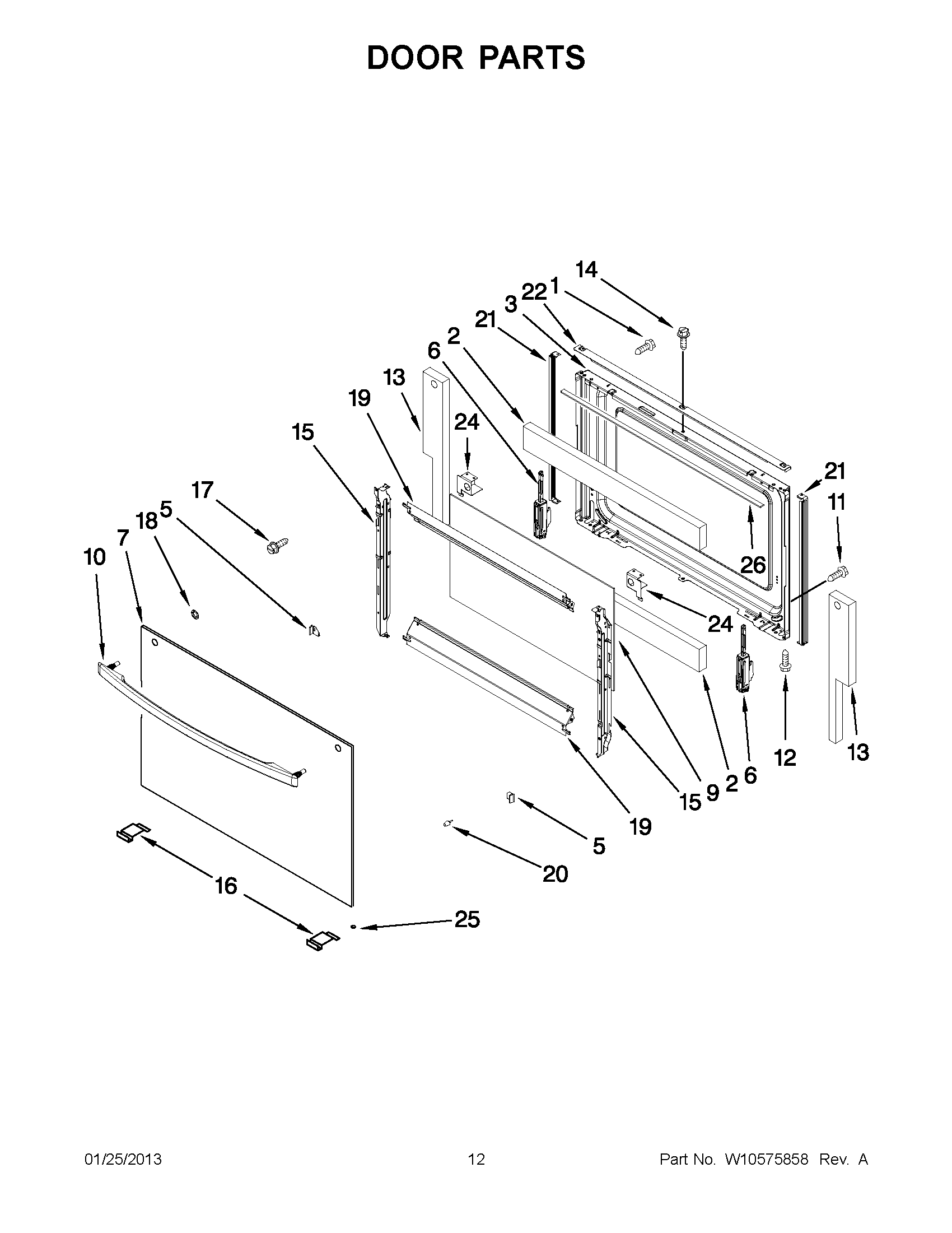

WFG231LVB1 06 – DOOR PARTS

WFG231LVB1 06 – DOOR PARTS

Written by

in

WFG231LVB1 06 – DOOR PARTS

Products

PositionProduct
1Screw
2W10111139 Whirlpool Insulation
3Liner, Door
598004953 Whirlpool Clip
598004952 Whirlpool Oven Clip
6Hinge, Door (Right)
7Panel, Door (Stainless)
7Panel, Door (White)
7WPW10177801 Whirlpool Door Glass
9WPW10109950 Whirlpool Door Glass
10WP98004943 Whirlpool Door Handle
10WP98004942 Whirlpool Door Handle
11W11206744 Whirlpool Screw
12WP59002061 Whirlpool Microwave Screw
13Insulation (Right)
13W11688784 Whirlpool Insulation
14WP98008544 Whirlpool Screw Assembly
14WP98008545 Whirlpool Screw
1598004629 Whirlpool Oven Retainer
1598004564 Whirlpool Oven Retainer
16WP98010187 Whirlpool Range Door Trim
16WP98010185 Whirlpool Door Trim
17WP3400805 Whirlpool Screw Assembly
18WP98004650 Whirlpool Nut
1998015806 Whirlpool Oven Retainer
2098004227 Whirlpool Oven Bumper
2198006794 Whirlpool Oven Door Trim
21WP98006793 Whirlpool Door Trim Assembly
22TRIM, TOP (STAINLESS)
22Top Trim, Door (White)
2298006884 Whirlpool Oven Door Trim
24Support-SS Only (Right)
24Support-SS Only (Left)
25Spacer (2)
26Tape, Foam-SS Only
