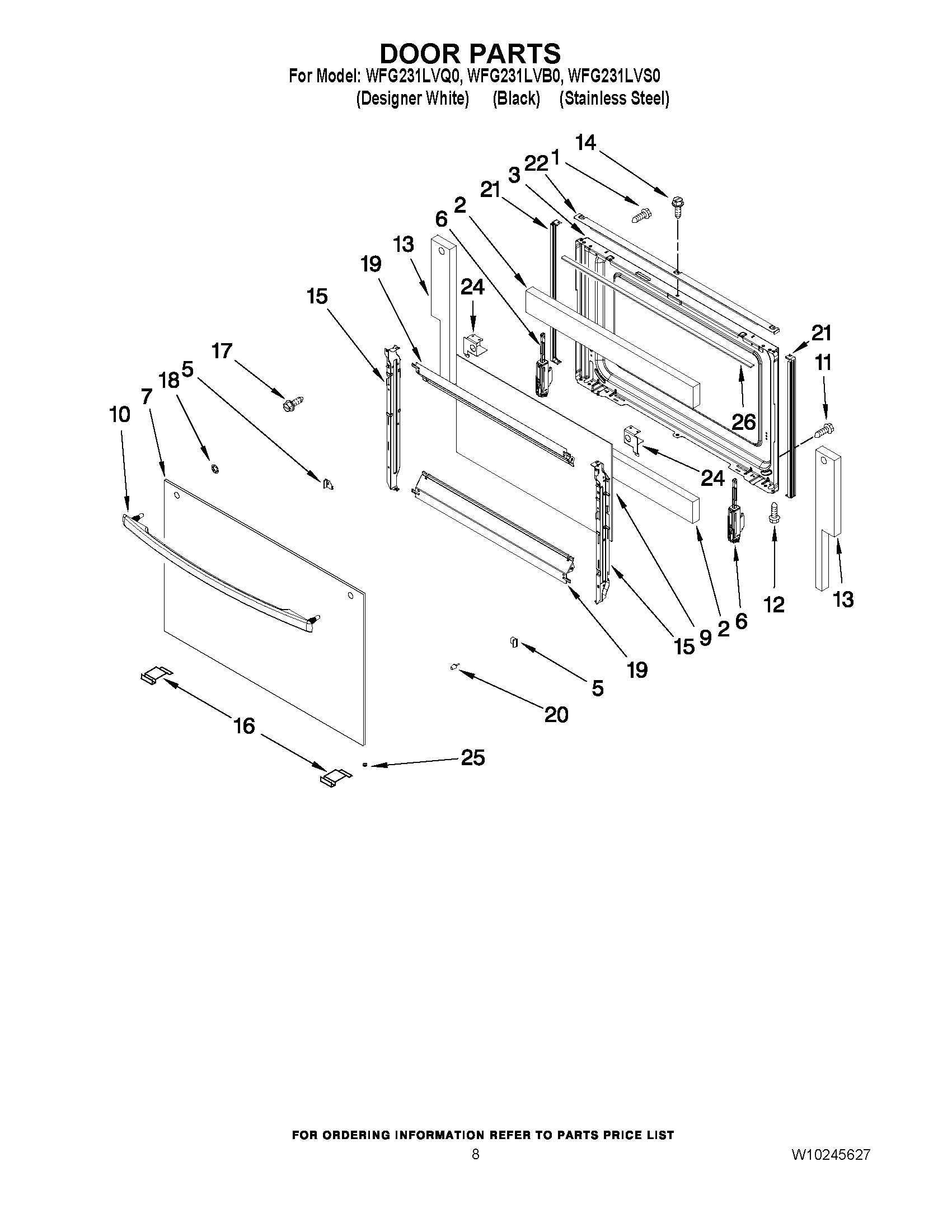

WFG231LVQ0 06 – DOOR PARTS

Products

Position	Product
1	Screw
2	W10111139 Whirlpool Insulation
3	Liner, Door
5	98004953 Whirlpool Clip
5	98004952 Whirlpool Oven Clip
6	Hinge, Door (Right)
7	Panel, Door (Stainless)
7	Panel, Door (White)
7	WPW10177801 Whirlpool Door Glass
9	WPW10109950 Whirlpool Door Glass
10	WP98004943 Whirlpool Door Handle
10	WP98004942 Whirlpool Door Handle
11	W11206744 Whirlpool Screw
12	WP59002061 Whirlpool Microwave Screw
13	Insulation (Right)
13	W11688784 Whirlpool Insulation
14	WP98008544 Whirlpool Screw Assembly
14	WP98008545 Whirlpool Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP98010187 Whirlpool Range Door Trim
16	WP98010185 Whirlpool Door Trim
17	WP3400805 Whirlpool Screw Assembly
18	WP98004650 Whirlpool Nut
19	98015806 Whirlpool Oven Retainer
20	98004227 Whirlpool Oven Bumper
21	98006794 Whirlpool Oven Door Trim
21	WP98006793 Whirlpool Door Trim Assembly
22	TRIM, TOP (STAINLESS)
22	Top Trim, Door (White)
22	98006884 Whirlpool Oven Door Trim
24	Support-SS Only (Right)
24	Support-SS Only (Left)
25	Spacer (2)
26	Tape, Foam-SS Only
