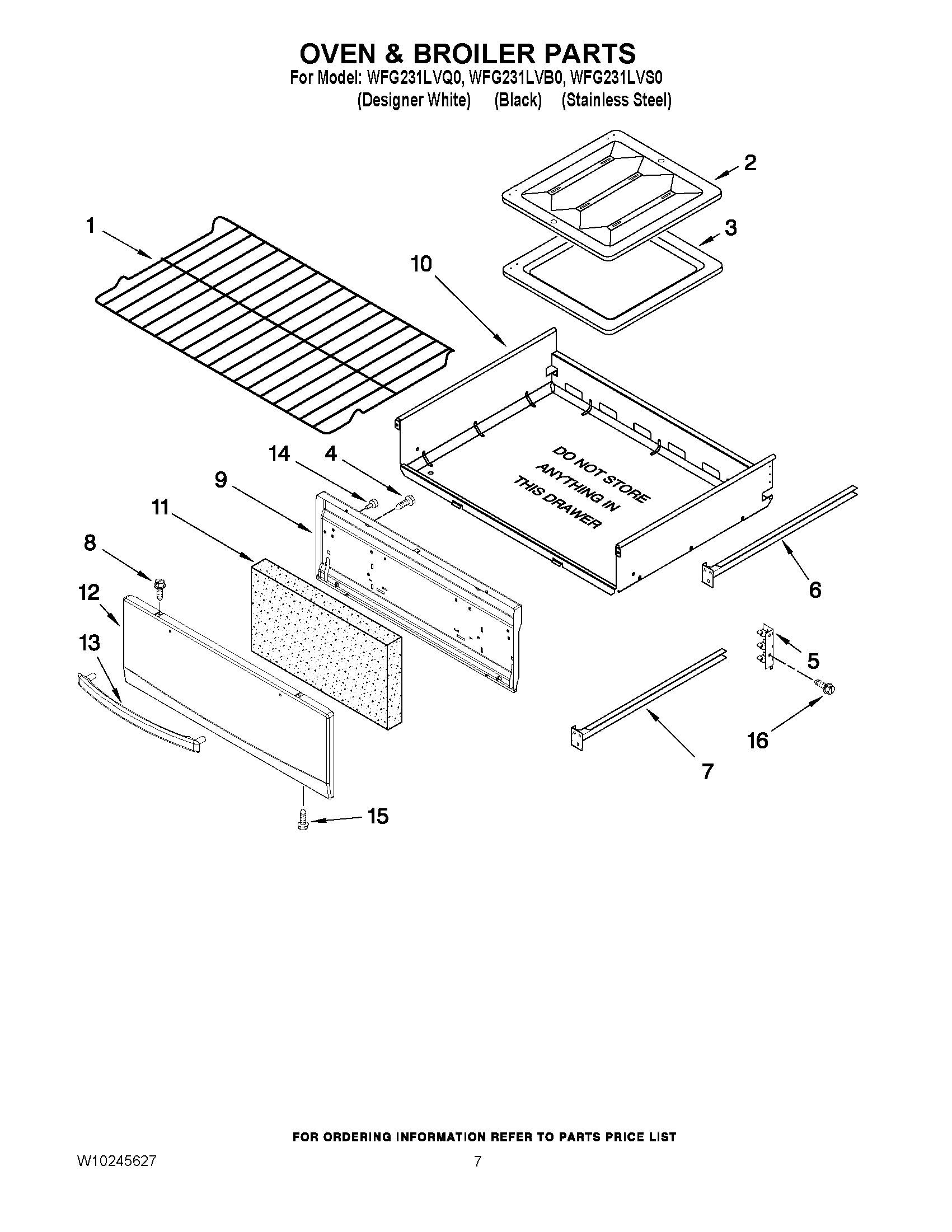

WFG231LVS0 05 – OVEN & BROILER PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	Screw
5	98016666 Whirlpool Oven Support
5	98016664 Whirlpool Oven Support Assembly
6	WPW10206639 Whirlpool Drawer Guide
6	WPW10206640 Whirlpool Drawer Guide
7	W10206642 Whirlpool Drawer Guide
7	WPW10206641 Whirlpool Drawer Guide
8	3196166 Whirlpool Screw
9	Liner, Door
10	Drawer, Broiler
11	W10137230 Whirlpool Insulation
12	Panel, Door (Black)
12	Panel, Door (Stainless)
12	Panel, Door (White)
13	WP98004956 Whirlpool Door Handle
13	Handle, Brlr Door (White)
14	BUMPER, DOOR
15	WP3400805 Whirlpool Screw Assembly
16	WP98008545 Whirlpool Screw
