WFG231LVS1 01 – COOKTOP PARTS

WFG231LVS1 01 – COOKTOP PARTS

Written by

in

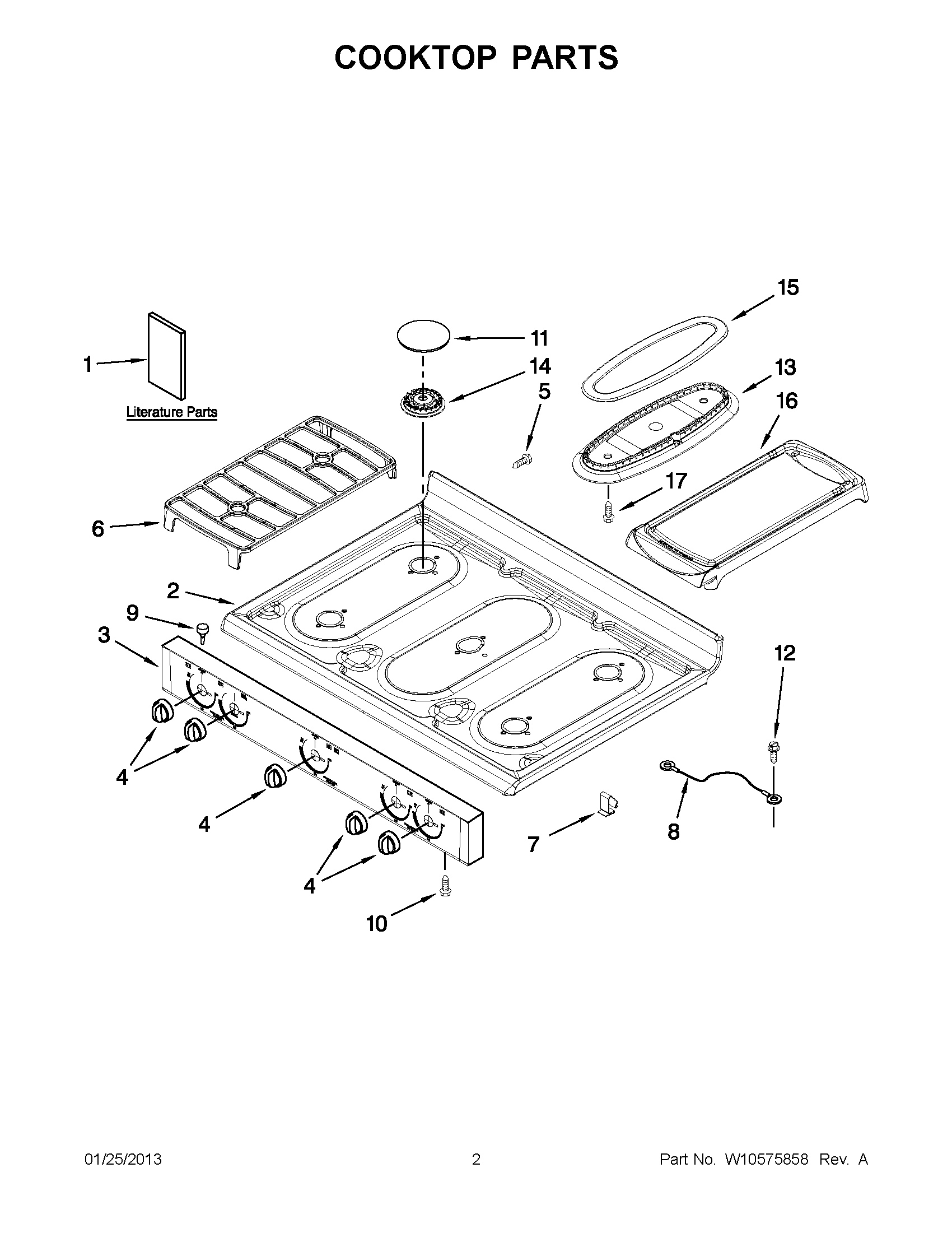

WFG231LVS1 01 – COOKTOP PARTS

Products

PositionProduct
1Guide, Use & Care
1Safer Cooking Tips
1SHEET, TECH
1Safer Cooking Tips (French)
2Cooktop (Black)
2Cooktop (White)
3Panel, Manifold (White)
3Panel, Manifold (Black)
4WPW10483312 Whirlpool Knob
4WPW10483313 Whirlpool Knob
5WP98007225 Whirlpool Screw Assembly
6Grate, Burner (3)
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10SCREW
11WP98017461 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13BURNER, FISH
14WPW10243396 Whirlpool Burner Top
15CAP, FISH BURNER
16WPW10133861 Whirlpool Griddle
17Screw (2)
