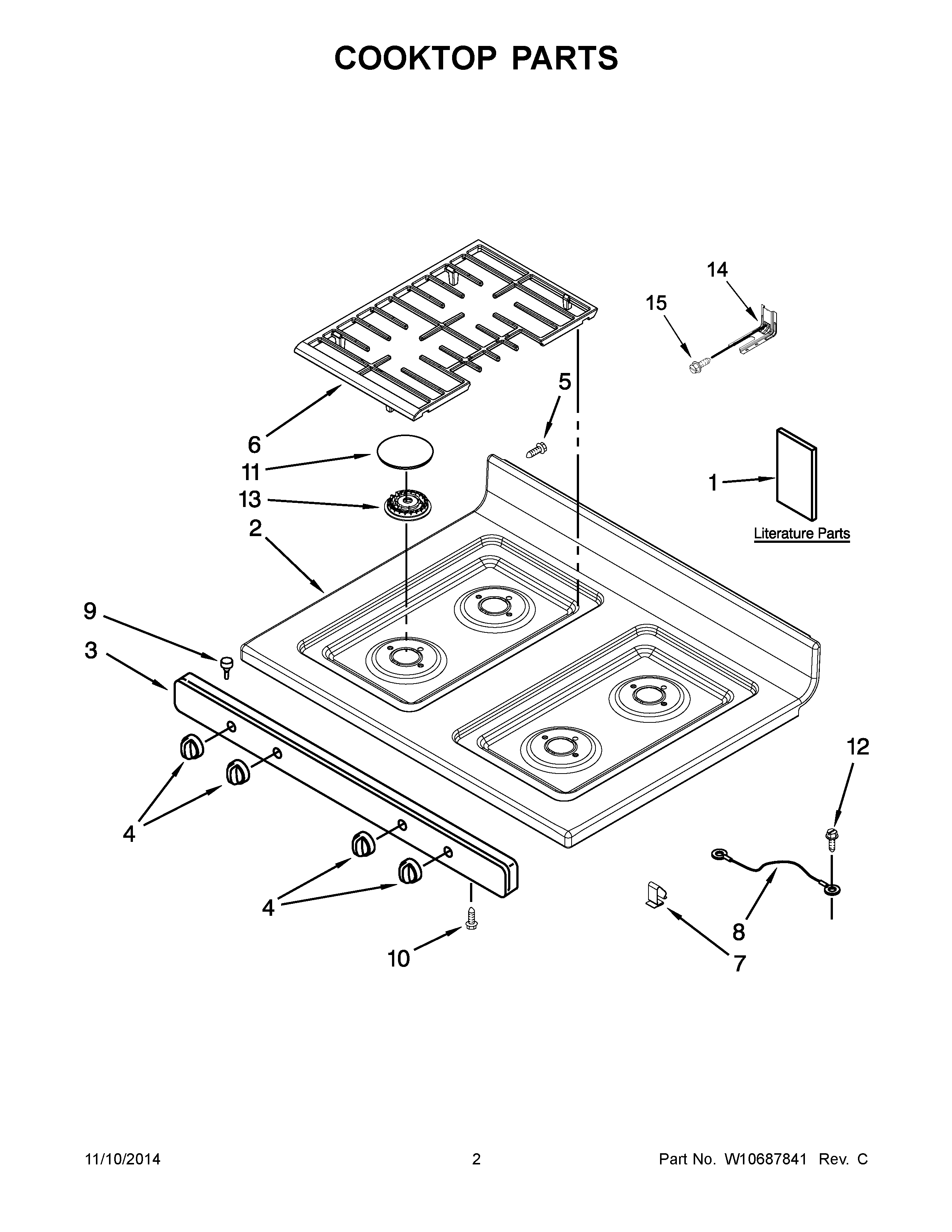

WFG320M0BB0 02 – COOKTOP PARTS

WFG320M0BB0 02 – COOKTOP PARTS

Written by

in

WFG320M0BB0 02 – COOKTOP PARTS

Products

PositionProduct
NIWP3391018 Whirlpool Wire Tie
NICABINET (NOT A SERVICEABLE PART)
NIW10544364 Whirlpool Wire Harness
NICLIP, WIRE
NI98015022 Whirlpool Bushing Assembly
1AGUIDE, USE AND CARE
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
2AWPW10535710 Whirlpool Oven Cooktop Assembly
2WPW10535709 Whirlpool Cooktop
3AW10620548 Whirlpool Manifold Panel
3W10620547 Whirlpool Manifold Panel
4WPW10339443 Whirlpool Knob
4AWPW10339442 Whirlpool Range Black Burner Control Knob
5WP98007225 Whirlpool Screw Assembly
6W10620480 Whirlpool Burner Grate
7CLIP, COOKTOP
83184020 Whirlpool Oven Wire
9W10831827 Whirlpool Bumper
10WP3400832 Whirlpool Screw
11WPW10183368 Whirlpool Burner Cap
11AWPW10183369 Whirlpool Burner Cap
11BWPW10183370 Whirlpool Burner Cap
12W10850756 Whirlpool Screw
13AWPW10515454 Whirlpool Burner Head
13BWPW10515453 Whirlpool Burner Head
13WPW10515455 Whirlpool Burner Head
14SCREW, ANTI-TIP KIT
15WPW10613666 Whirlpool Bracket
