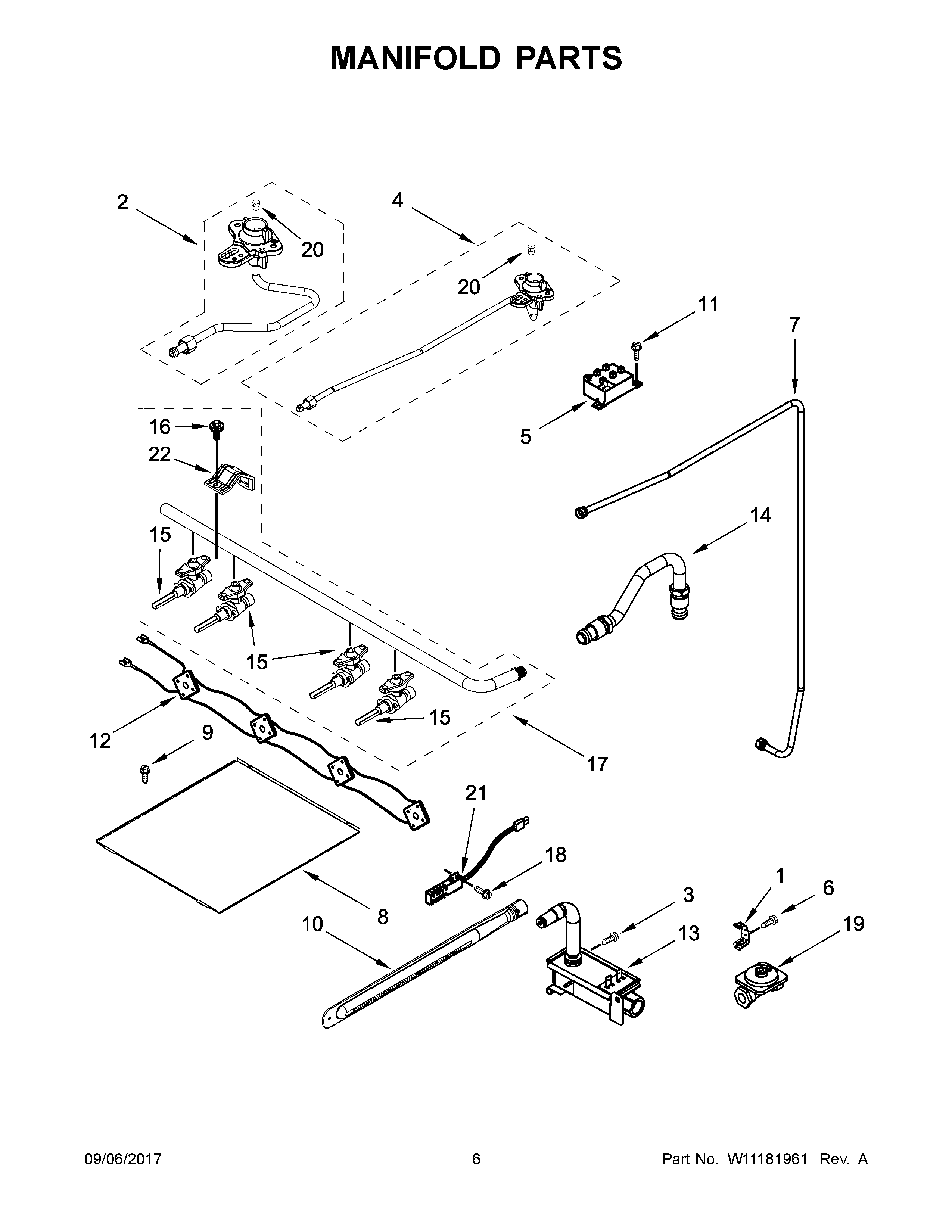

WFG320M0BB1 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10623833 Whirlpool Wire Harness
NI	WPW10619558 Whirlpool Conversion Kit
NI	W10622750 Whirlpool Wire Harness
1	98007410 Whirlpool Oven Mounting Bracket
2A	W11050487 Whirlpool Orifice Holder
2	W11028738 Whirlpool Surface Burner Orifice Holder
3	98013634 Whirlpool Oven Screw
4	W11162117 Whirlpool Orifice Holder
4A	W11167099 Whirlpool Orifice Holder
5	W11590249 Whirlpool Spark Module
6	WP98007225 Whirlpool Screw Assembly
7	W11628651 Whirlpool Gas Tubing
8	W11688713 Whirlpool Burner Baffle
9	WP3400832 Whirlpool Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	WPW10548355 Whirlpool Wire Harness
13	WP98014893 Whirlpool Gas Safety Valve Assembly
14	W11684515 Whirlpool Range Gas Tubing
15A	W10861716 Whirlpool Burner Valve
15B	W11105201 Whirlpool Burner Valve
15	W10814916 Whirlpool Burner Valve
16	98017517 Whirlpool Oven Screw
17	W10512763 Whirlpool Manifold Pipe Assembly
18	W11676351 Whirlpool Screw
19	W11346659 Whirlpool Regulator
20A	WPW10170508 Whirlpool Orifice Spud
20	WPW10347414 Whirlpool Orifice Spud
20B	WPW10170506 Whirlpool Orifice Spud
21	IGNTR-OVEN
22	W10574737 Whirlpool Mounting Bracket
