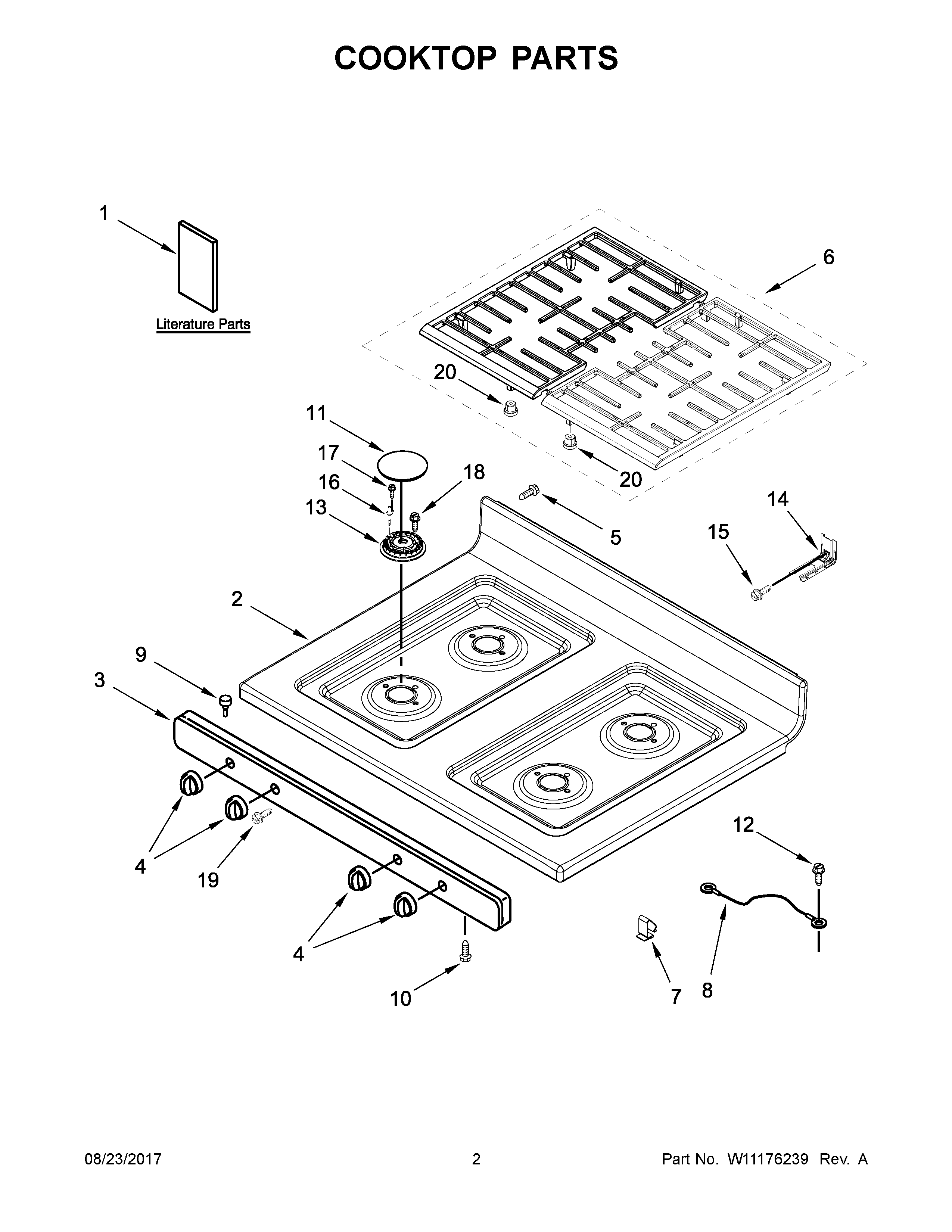

WFG320M0BB2 02 – COOKTOP PARTS

Products

Position	Product
NI	CLIP, WIRE
NI	WP3391018 Whirlpool Wire Tie
NI	W11628776 Whirlpool Wire Harness
NI	3196696 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	98015022 Whirlpool Bushing Assembly
NI	549193 Whirlpool Refrigerator Power Clamp
1C	SHEET, TECH
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1B	Safer Cooking Tips
2	WPW10535709 Whirlpool Cooktop
2A	WPW10535710 Whirlpool Oven Cooktop Assembly
3A	W10620548 Whirlpool Manifold Panel
3	W10620547 Whirlpool Manifold Panel
4	WPW10339443 Whirlpool Knob
4A	WPW10339442 Whirlpool Range Black Burner Control Knob
5	WP98007225 Whirlpool Screw Assembly
6	W10620480 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11	WPW10183368 Whirlpool Burner Cap
11A	WPW10183369 Whirlpool Burner Cap
11B	WPW10183370 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	WPW10515455 Whirlpool Burner Head
13A	WPW10515454 Whirlpool Burner Head
13B	WPW10515453 Whirlpool Burner Head
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	WPW10515459 Whirlpool Surface Igniter
17	WP8273062 Whirlpool Screw
18	WP3368921 Whirlpool Screw
19A	WP3400832 Whirlpool Screw
19	SCREW (STAINLESS)
20	W10919249 Whirlpool Burner Grate Foot
