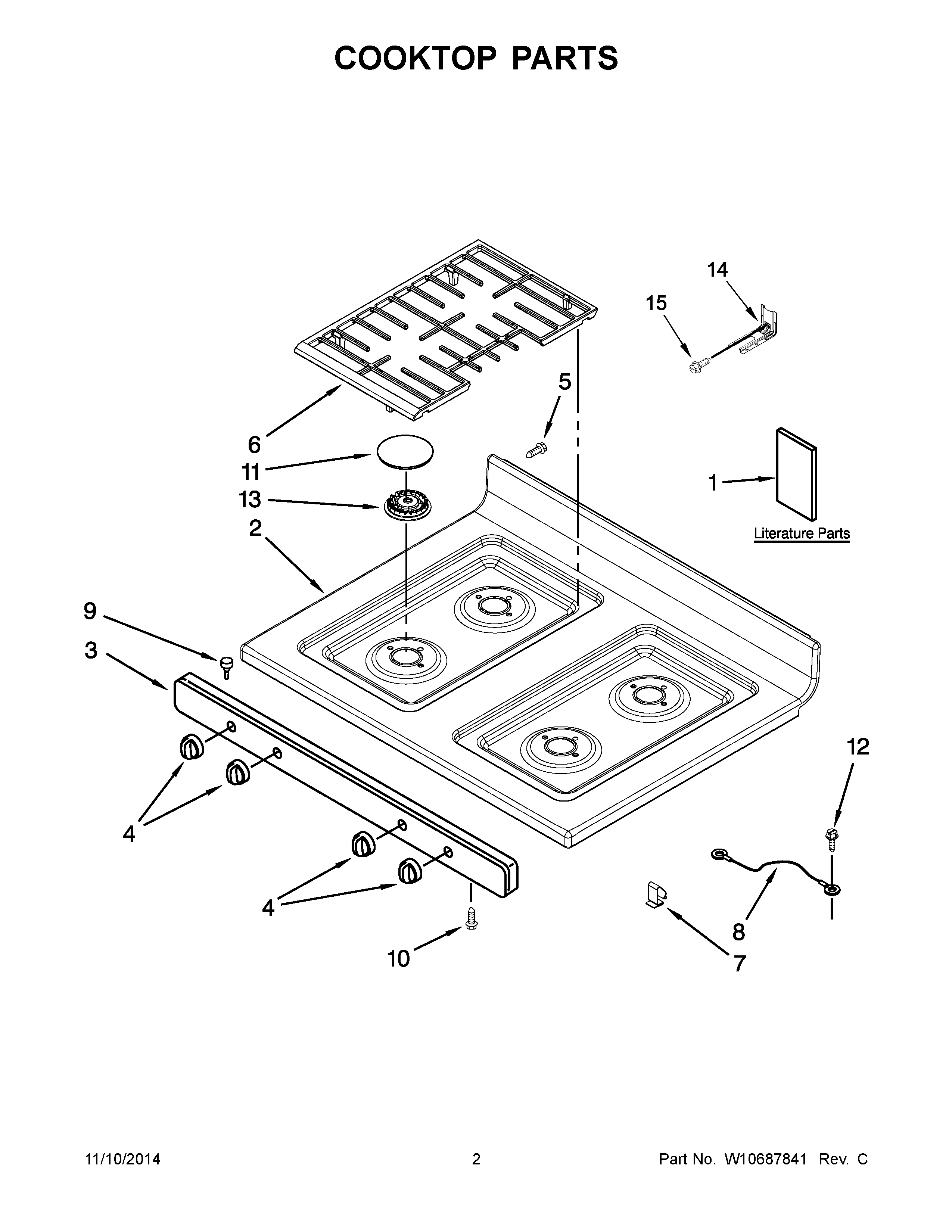

WFG320M0BW0 02 – COOKTOP PARTS

Products

Position	Product
NI	WP3391018 Whirlpool Wire Tie
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10544364 Whirlpool Wire Harness
NI	CLIP, WIRE
NI	98015022 Whirlpool Bushing Assembly
1A	GUIDE, USE AND CARE
1B	SHEET, TECH
1	INSTRUCTIONS, INSTALLATION
2A	WPW10535710 Whirlpool Oven Cooktop Assembly
2	WPW10535709 Whirlpool Cooktop
3A	W10620548 Whirlpool Manifold Panel
3	W10620547 Whirlpool Manifold Panel
4	WPW10339443 Whirlpool Knob
4A	WPW10339442 Whirlpool Range Black Burner Control Knob
5	WP98007225 Whirlpool Screw Assembly
6	W10620480 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	WP3400832 Whirlpool Screw
11	WPW10183368 Whirlpool Burner Cap
11A	WPW10183369 Whirlpool Burner Cap
11B	WPW10183370 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13A	WPW10515454 Whirlpool Burner Head
13B	WPW10515453 Whirlpool Burner Head
13	WPW10515455 Whirlpool Burner Head
14	SCREW, ANTI-TIP KIT
15	WPW10613666 Whirlpool Bracket
