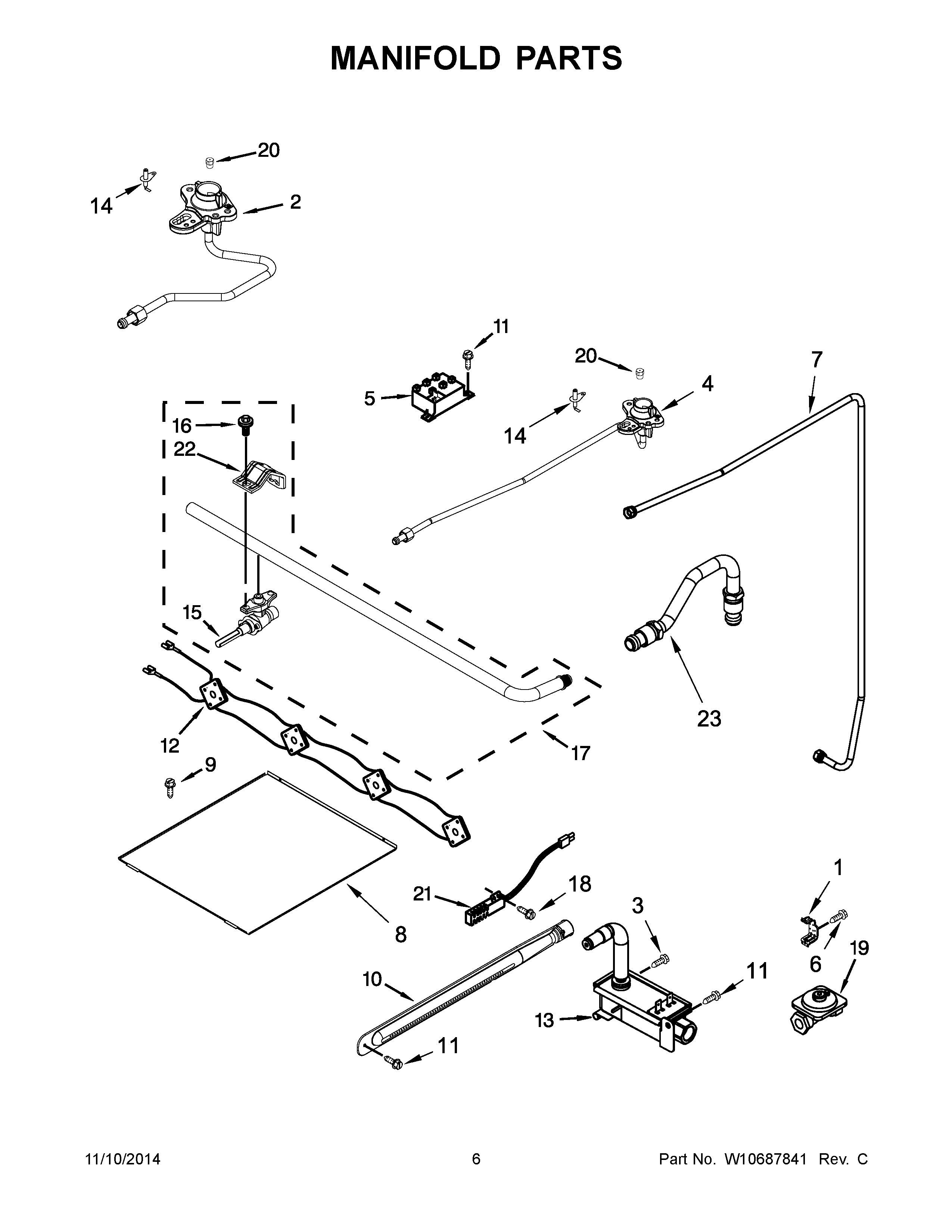

WFG320M0BW0 04 – MANIFOLD PARTS

WFG320M0BW0 04 – MANIFOLD PARTS

Written by

in

WFG320M0BW0 04 – MANIFOLD PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW10623833 Whirlpool Wire Harness
NIWPW10619558 Whirlpool Conversion Kit
NIW10622750 Whirlpool Wire Harness
198007410 Whirlpool Oven Mounting Bracket
2W11028738 Whirlpool Surface Burner Orifice Holder
2AW11050487 Whirlpool Orifice Holder
398013634 Whirlpool Oven Screw
4AW11167099 Whirlpool Orifice Holder
4W11162117 Whirlpool Orifice Holder
5W11590249 Whirlpool Spark Module
6WP98007225 Whirlpool Screw Assembly
7W11628651 Whirlpool Gas Tubing
8W11688713 Whirlpool Burner Baffle
9WP3400832 Whirlpool Screw
10W11220387 Whirlpool Oven Burner
11W11684515 Whirlpool Range Gas Tubing
12WPW10548355 Whirlpool Wire Harness
13WP98014893 Whirlpool Gas Safety Valve Assembly
14W10574737 Whirlpool Mounting Bracket
15BW11105201 Whirlpool Burner Valve
15AW10861716 Whirlpool Burner Valve
15W10814916 Whirlpool Burner Valve
1698017517 Whirlpool Oven Screw
17W10512763 Whirlpool Manifold Pipe Assembly
18W11676351 Whirlpool Screw
19W11346659 Whirlpool Regulator
20AWPW10170508 Whirlpool Orifice Spud
20BWPW10170506 Whirlpool Orifice Spud
20WPW10347414 Whirlpool Orifice Spud
21W10918546 Whirlpool Oven Range Igniter
