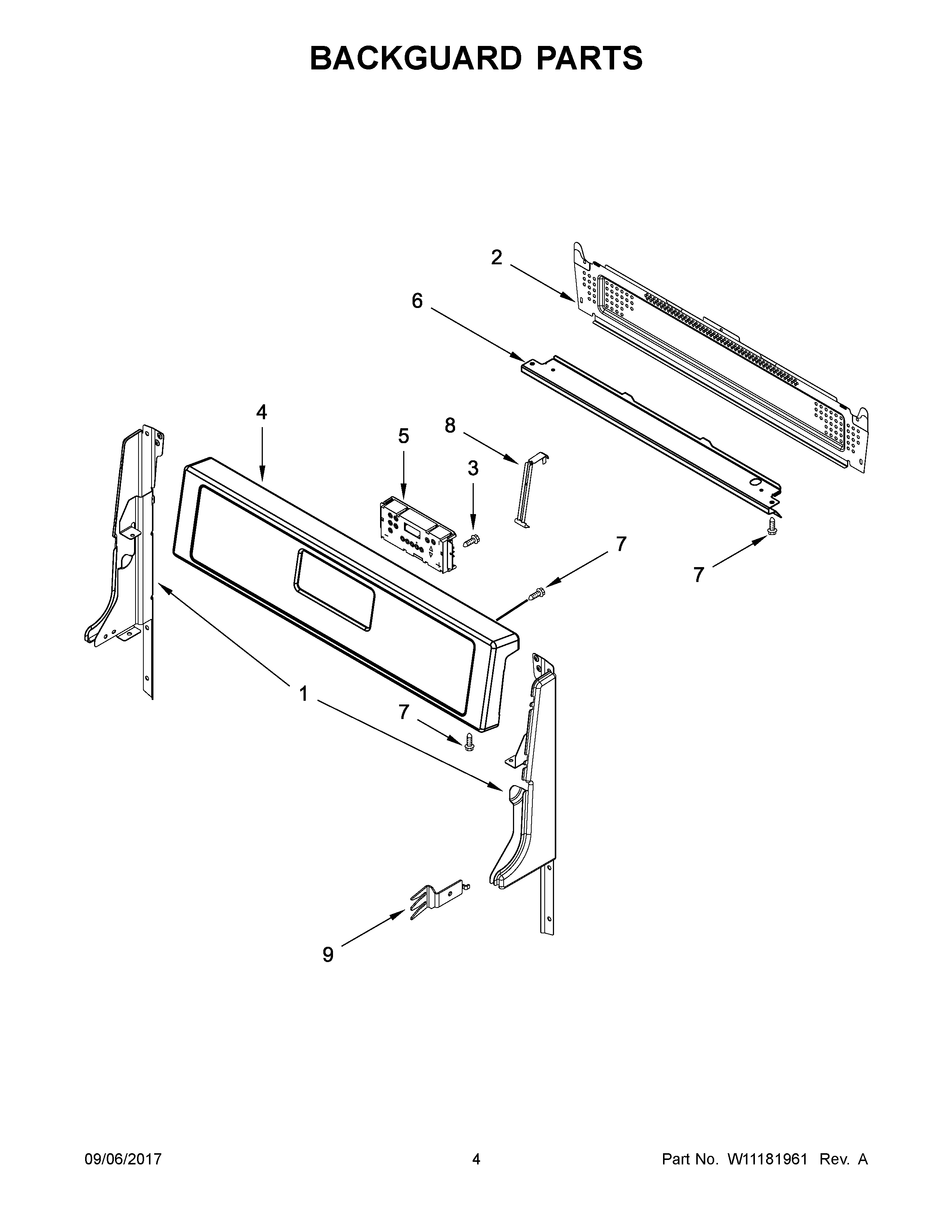

WFG320M0BW1 03 – BACKGUARD PARTS

WFG320M0BW1 03 – BACKGUARD PARTS

Written by

in

WFG320M0BW1 03 – BACKGUARD PARTS

Products

PositionProduct
1W10873438 Whirlpool Endcap Panel
1AW10873109 Whirlpool Endcap Panel
1BW10873441 Whirlpool Panel Endcap
1CW10873107 Whirlpool Panel Endcap
2W10588614 Whirlpool Rear Cover Assembly
3W10850756 Whirlpool Screw
4W11171357 Whirlpool Control Panel
4AW11121752 Whirlpool Control Panel
5AW11126814 Whirlpool Refrigerator Electronic Control Board
5W11113908 Whirlpool Electronic Control Board
6W10535746 Whirlpool Deflector
7AWP98008545 Whirlpool Screw
7WP98008544 Whirlpool Screw Assembly
8W11230932 Whirlpool Bracket Mounting
9W10535815 Whirlpool Mounting Bracket
