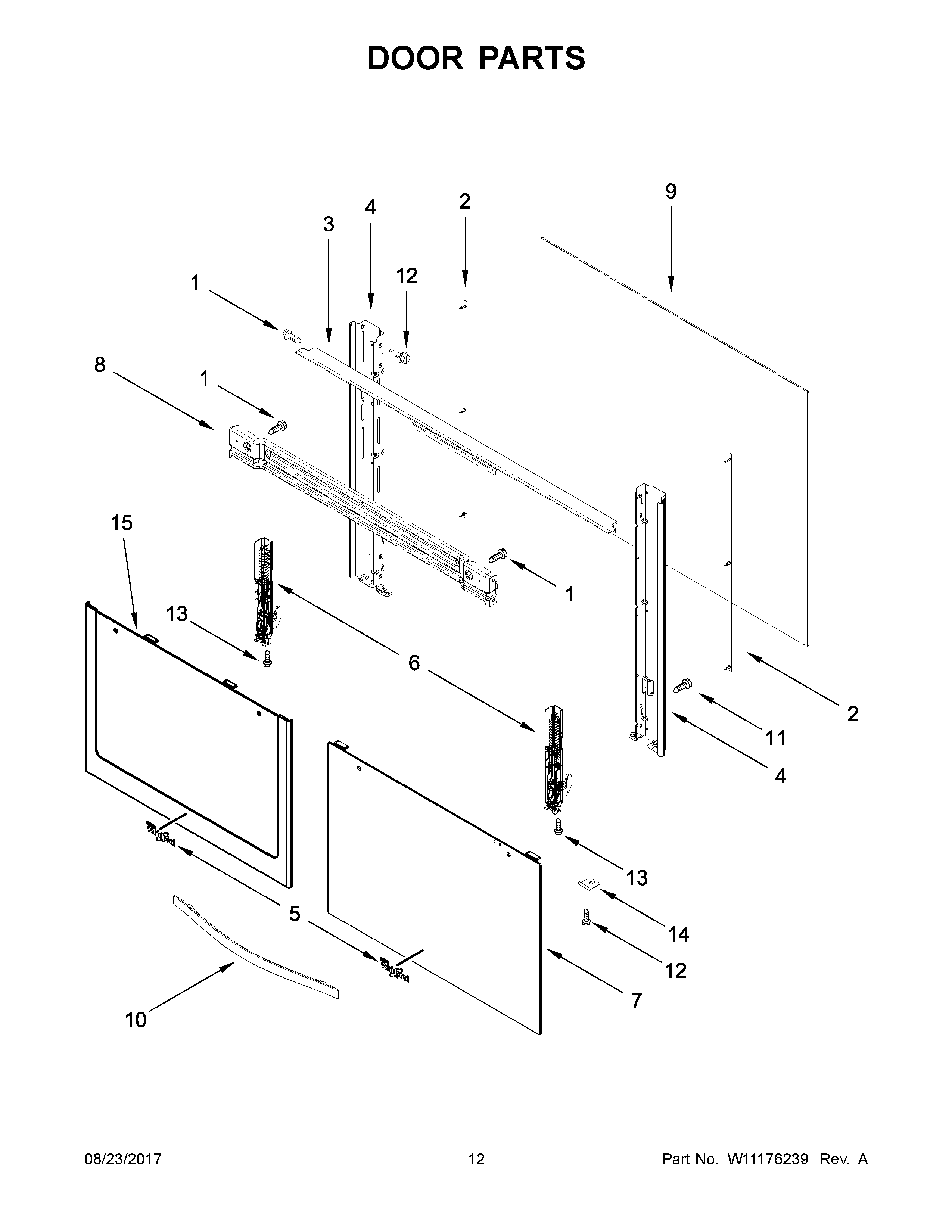

WFG320M0BW2 07 – DOOR PARTS

Products

Position	Product
1A	WP3400832 Whirlpool Screw
1	WPW10277003 Whirlpool Screw
2	W11104748 Whirlpool Door Gasket
3	W11105139 Whirlpool Glass Bracket
4A	W11232008 Whirlpool Door Trim
4	W11209792 Whirlpool Door Trim
5	W11178521 Whirlpool Dishwasher Nameplate
6	W10857234 Whirlpool Door Hinge
6A	W11240518 Whirlpool Door Hinge
7	WPW10535777 Whirlpool Door Glass Assembly
7A	GLASS-DOOR
8	W11389703 Whirlpool Bracket
9	WPW10535767 Whirlpool Door Glass
10A	W11205070 Whirlpool Door Handle
10	W11105179 Whirlpool Door Handle
10B	W10894054 Whirlpool Door Handle Assembly
11	W11206744 Whirlpool Screw
12	W10837731 Whirlpool Screw Assembly
13	W10837674 Whirlpool Screw
14	W11170320 Whirlpool Mounting Bracket
14A	W10883315 Whirlpool Mounting Bracket
15	W11176456 Whirlpool Dishwasher Outer Door Glass
