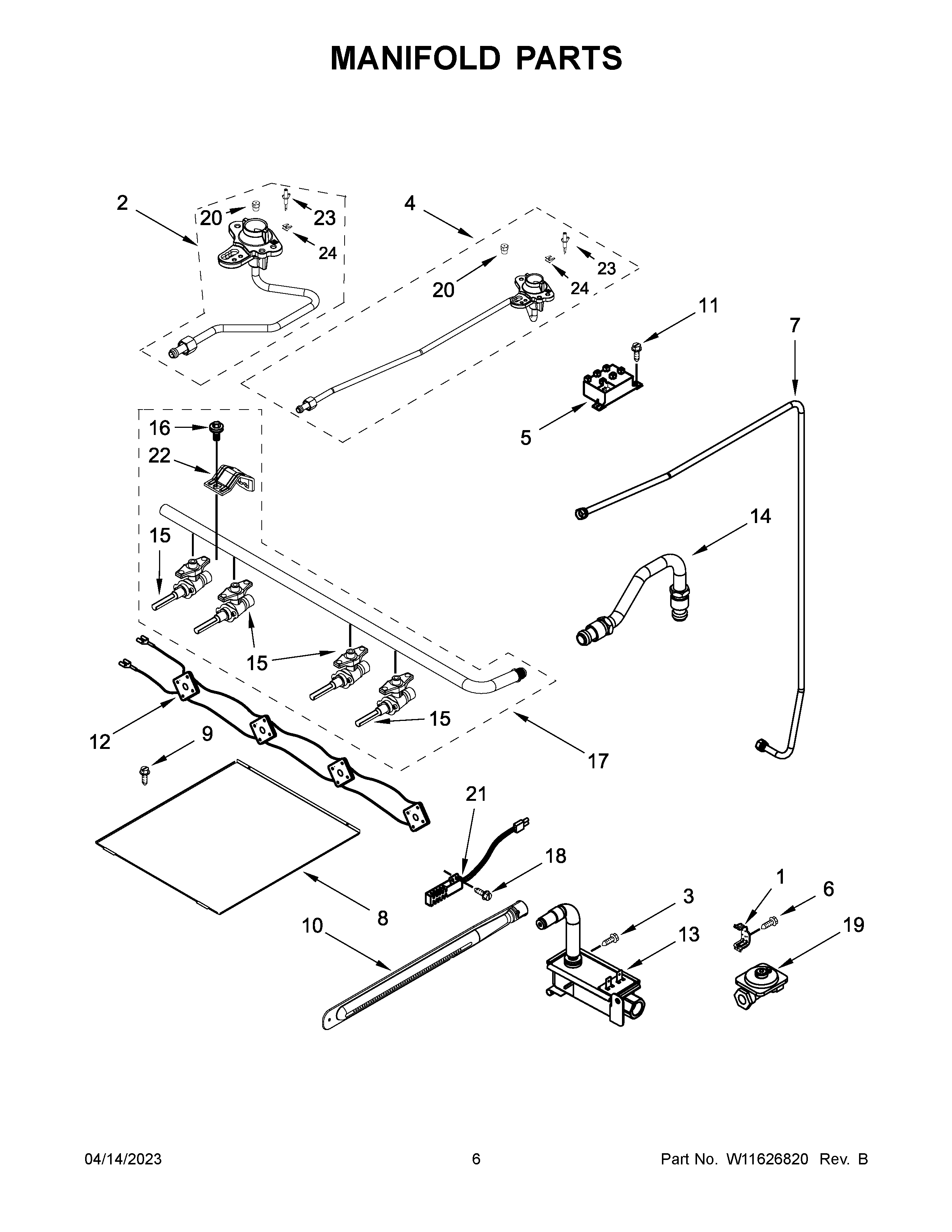

WFG320M0MB0 04 – MANIFOLD PARTS

WFG320M0MB0 04 – MANIFOLD PARTS

Written by

in

WFG320M0MB0 04 – MANIFOLD PARTS

Products

PositionProduct
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11620555 Whirlpool Orifice Spud
198007410 Whirlpool Oven Mounting Bracket
2AW11590059 Whirlpool Orifice Holder
2W11590058 Whirlpool Orifice Holder
398013634 Whirlpool Oven Screw
4AW11590248 Whirlpool Orifice Holder
4W11590060 Whirlpool Orifice Holder
5W11590249 Whirlpool Spark Module
6WP98007225 Whirlpool Screw Assembly
7W11628651 Whirlpool Gas Tubing
8W11688713 Whirlpool Burner Baffle
9WP3400832 Whirlpool Screw
10W11220387 Whirlpool Oven Burner
11W10837731 Whirlpool Screw Assembly
12W11620549 Whirlpool Wire Harness
13W11590251 Whirlpool Gas Valve
14W11684515 Whirlpool Range Gas Tubing
15BW11620424 Whirlpool Burner Valve
15AW11620109 Whirlpool Burner Valve
15W11620420 Whirlpool Burner Valve
1698017517 Whirlpool Oven Screw
17PIPE-MNFLD
18W11676351 Whirlpool Screw
19W11590292 Whirlpool Regulator
20W11700316 Whirlpool Orifice
20BW11712434 Whirlpool Orifice
20AW11590293 Whirlpool Orifice Spud
21IGNTR-OVEN
22W10574737 Whirlpool Mounting Bracket
23W11688146 Whirlpool Surface Igniter
23AW11666003 Whirlpool Range Surface Igniter
24W11684564 Whirlpool Clip Assembly
