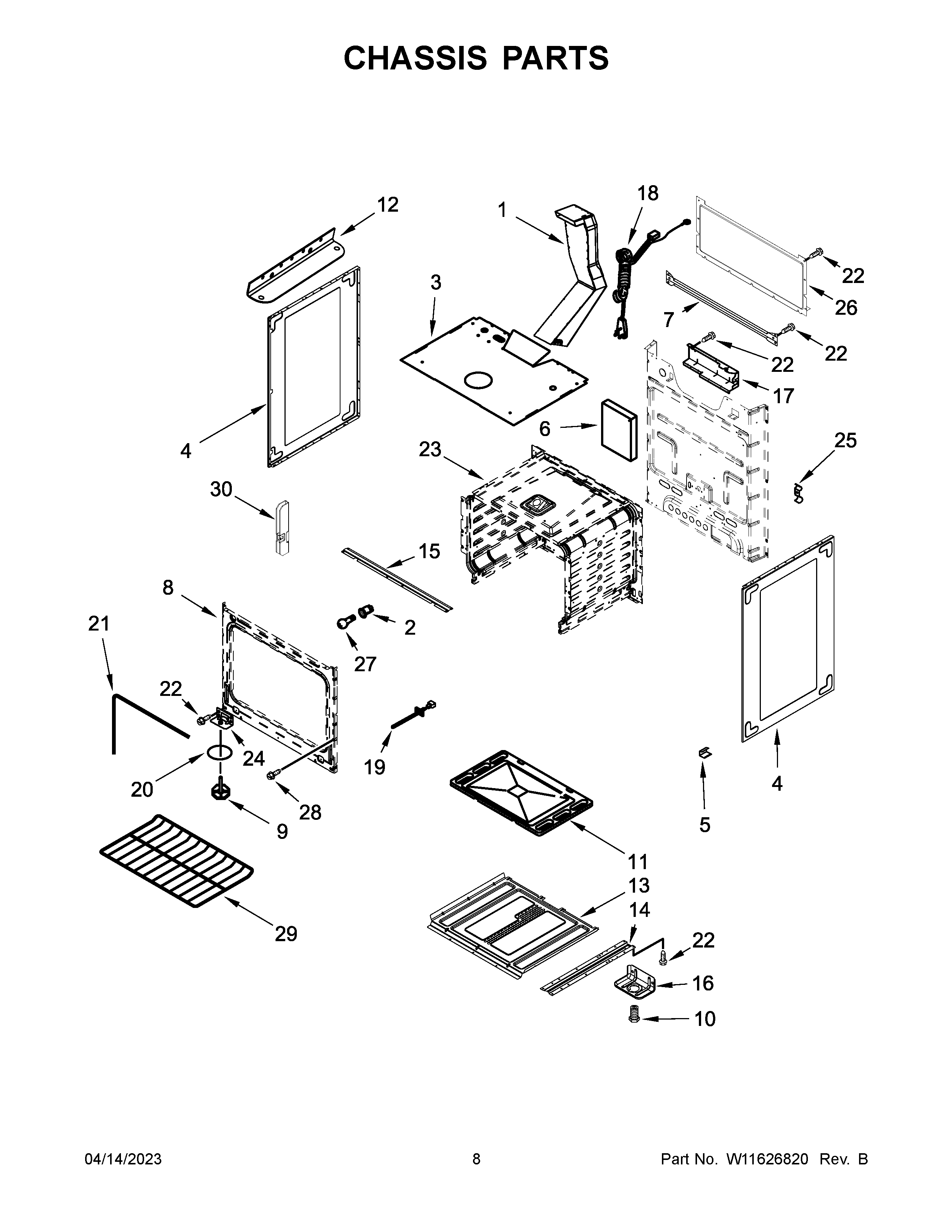

WFG320M0MB0 05 – CHASSIS PARTS

Products

Position	Product
NI	98004294 Whirlpool Insulation Wire
NI	W10537475 Whirlpool Insulation
NI	INSULATION
NI	W11506534 Whirlpool Insulation
NI	W11688850 Whirlpool Insulation
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	BOX, FLUE
2	W10856866 Whirlpool Light Socket
3	W10636342 Whirlpool Shield
4C	W10816993 Whirlpool Side Panel
4B	W10816996 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT (BLACK AND WHITE MODELS)
7	98015363 Whirlpool Oven Support
8	FRAME, FRONT (NOT SERVICED)
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	W11098799 Whirlpool Oven Bottom Assembly
12	SIDE PANEL, SUPPORT
13	W10670197 Whirlpool Microwave Bottom Baffle
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	W11173616 Whirlpool Power Cord
19	WPW10181986 Whirlpool Oven Sensor
20	98007193 Whirlpool Oven Washer
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
23	LINER, OVEN (NOT SERVICED)
25	CLIP, TUBING
26	COVER
27	W10888179 Whirlpool Light Bulb Assembly
28	WP98008545 Whirlpool Screw
29	WPW10550642 Whirlpool Oven Rack
30	W11161898 Whirlpool Hinge Receiver
