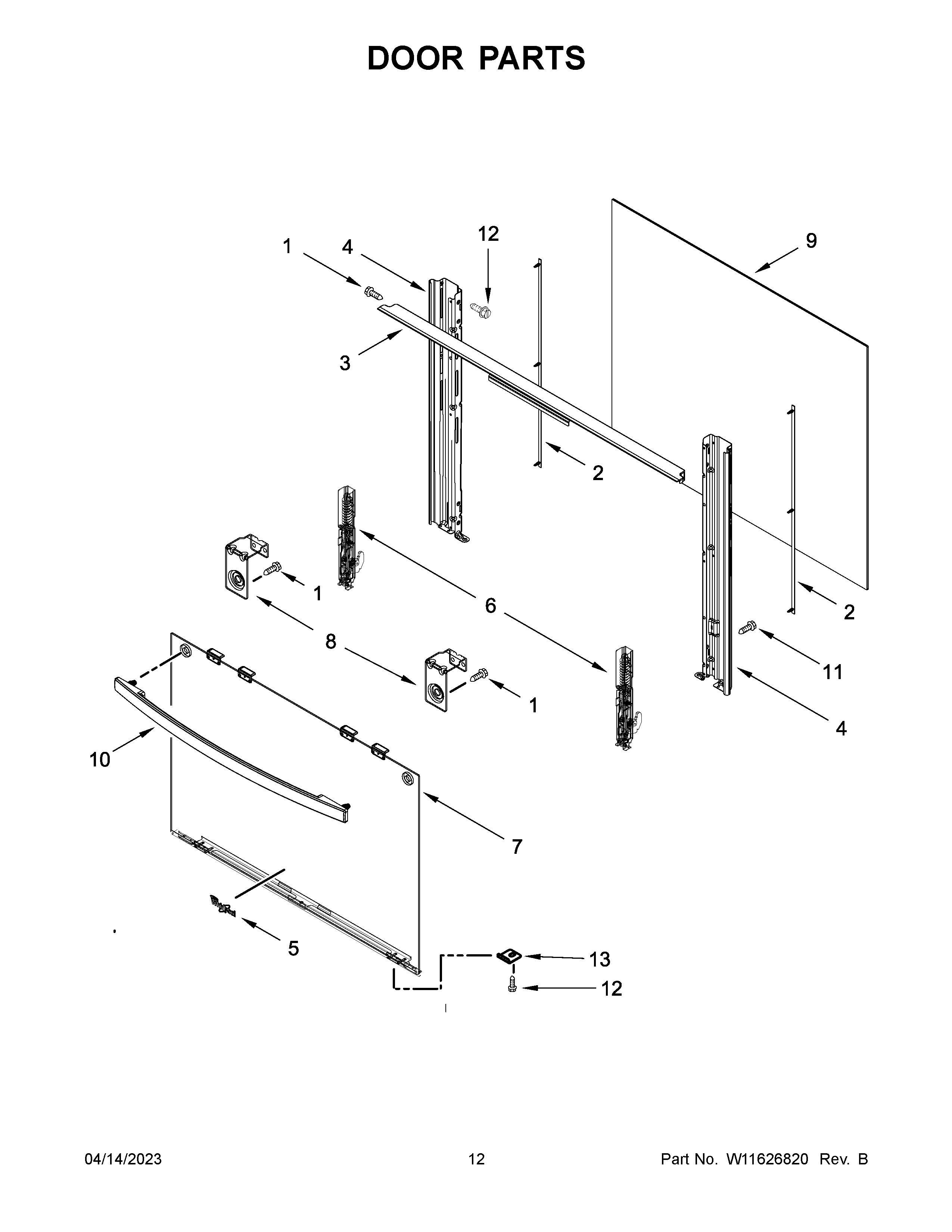

WFG320M0MB0 07 – DOOR PARTS

Products

PositionProduct
1WP3400832 Whirlpool Screw
2W11104748 Whirlpool Door Gasket
3W11105139 Whirlpool Glass Bracket
4W11620487 Whirlpool Door Hinge
4AW11620488 Whirlpool Door Trim
5W11178521 Whirlpool Dishwasher Nameplate
6W10857234 Whirlpool Door Hinge
7W11620553 Whirlpool Door Glass
7AW11620722 Whirlpool Oven Outer Glass and Lower Trim Kit
8W11712435 Whirlpool Mounting Bracket
9W11620489 Whirlpool Door Glass
10AW11620485 Whirlpool Door Handle
10W11620554 Whirlpool Door Handle
11W11206744 Whirlpool Screw
12W10837731 Whirlpool Screw Assembly
13AW10883315 Whirlpool Mounting Bracket
13W11170320 Whirlpool Mounting Bracket
