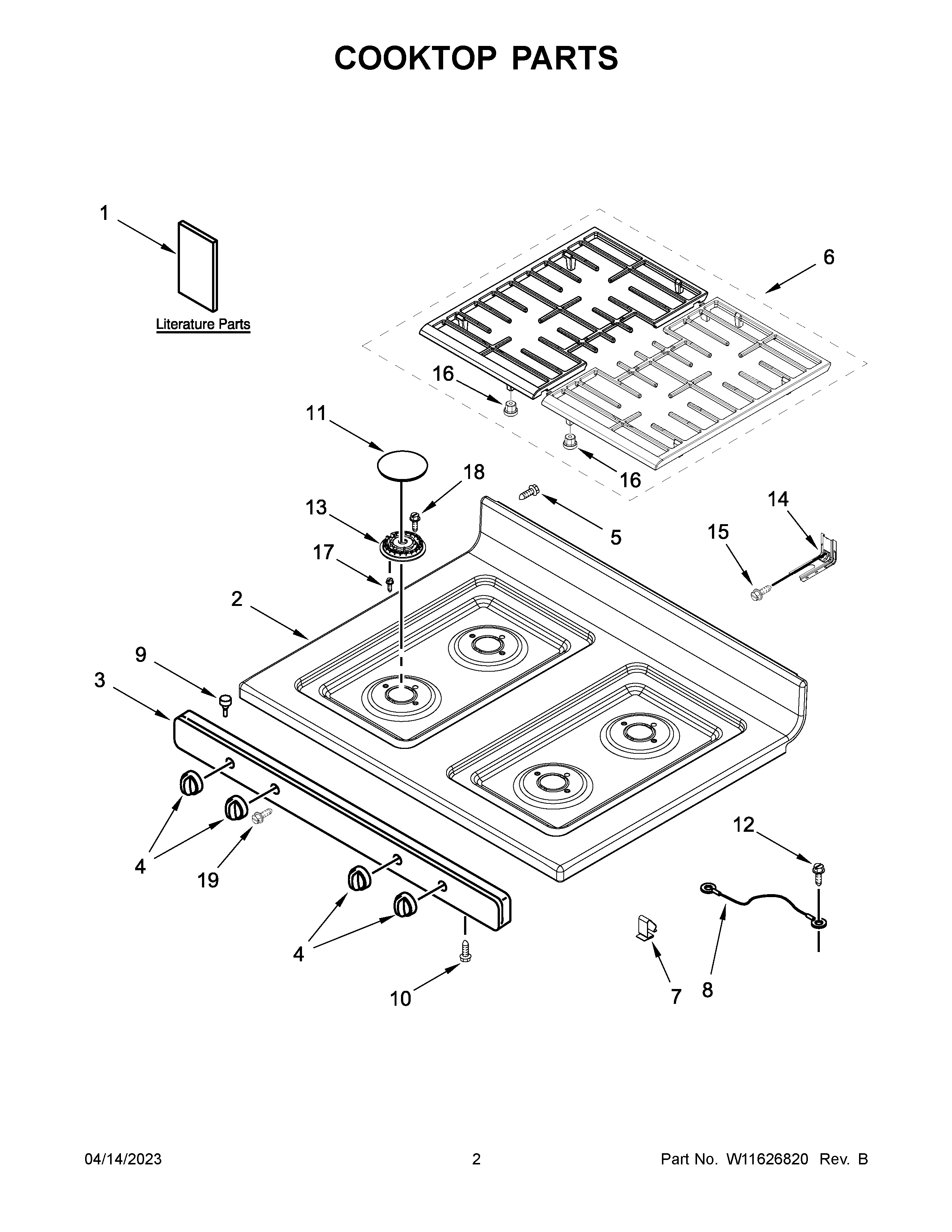

WFG320M0MW0 02 – COOKTOP PARTS

Products

Position	Product
NI	98015022 Whirlpool Bushing Assembly
NI	W11465032 Whirlpool Wire Harness
NI	WP3391018 Whirlpool Wire Tie
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	CLIP, WIRE
NI	INSULATION, MANIFOLD
1	INSTRUCTIONS, INSTALLATION
1A	OWNERS MANUAL
2	WIRE, DIAGRAM COOKTOP (WHITE)
2A	W11590287 Whirlpool Cooktop Assembly
3	PANEL, MANIFOLD (WHITE)
3A	W11578514 Whirlpool Manifold Panel
4	W11620708 Whirlpool Knob
4A	W11620491 Whirlpool Knob
5	WP98007225 Whirlpool Screw Assembly
6	W11603169 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11	W11590055 Whirlpool Burner Cap
11B	W11590057 Whirlpool Burner Cap
11A	W11590056 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	W11435630 Whirlpool Oven Burner Head
13B	W11435657 Whirlpool Burner Head
13A	W11435659 Whirlpool Burner Head
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	W10919249 Whirlpool Burner Grate Foot
17	WP8273062 Whirlpool Screw
18	WP3368921 Whirlpool Screw
19	SCREW (STAINLESS)
19A	WP3400832 Whirlpool Screw
