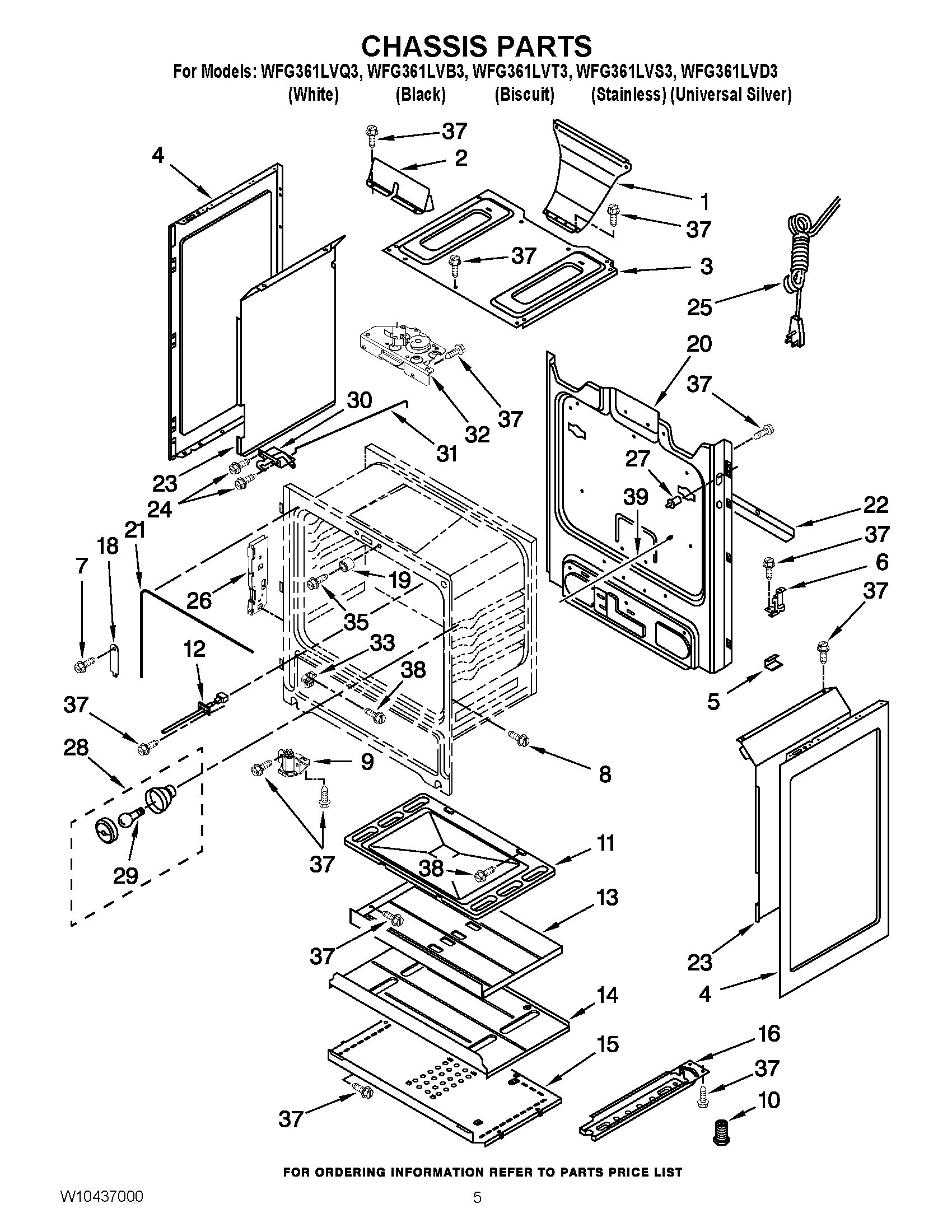

WFG361LVD3 04 – CHASSIS PARTS

WFG361LVD3 04 – CHASSIS PARTS

Written by

in

WFG361LVD3 04 – CHASSIS PARTS

Products

PositionProduct
NIW11684915 Whirlpool Insulation
NIW11688737 Whirlpool Insulation
1W11457094 Whirlpool Oven Flue
2WP8272747 Whirlpool Heat Shield
3W11379351 Whirlpool Burner Box
4W10162246 Whirlpool Side Panel
4W11730303 Whirlpool Side Panel
4WPW10575396 Whirlpool Side Panel
5W10137382 Whirlpool Clip
68523249 Whirlpool Oven Support Bracket
7W10777162 Whirlpool Screw
8WPW10067840 Whirlpool Screw
9WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10WPW10058460 Whirlpool Appliance Levelling Leg
11WP3195097 Whirlpool Oven Bottom
12WPW10181986 Whirlpool Oven Sensor
138053967 Whirlpool Oven Heat Baffle
148053969 Whirlpool Heat Shield
158053968 Whirlpool Oven Heat Shield
16WPW10306546 Whirlpool Base Rail
189761517 Whirlpool Oven Clip Assembly
19W10877054 Whirlpool Spacer Assembly
20BACK, MAIN
21W11542153 Whirlpool Door Gasket
22BRACE, MAIN BACK
239761449 Whirlpool Oven Retainer
239761448 Whirlpool Oven Retainer
24W11169708 Whirlpool Screw
25WP9757891 Whirlpool Power Cord
26W10647259 Whirlpool Hinge Receiver
27WP9757262 Whirlpool Light Switch
28W11594027 Whirlpool Range Oven Light Socket
29RANGE ONLY 40W 120V APPL BULB
30WP9761013 Whirlpool Door Latch
31W10078370 Whirlpool Latch Rod
32WPW10107820 Whirlpool Door Latch
33WPW10114344 Whirlpool Drawer Glide
35WP3196175 Whirlpool Screw
37SCREW
38W10379120 Whirlpool Screw
399757239 Whirlpool Oven Door Rod
