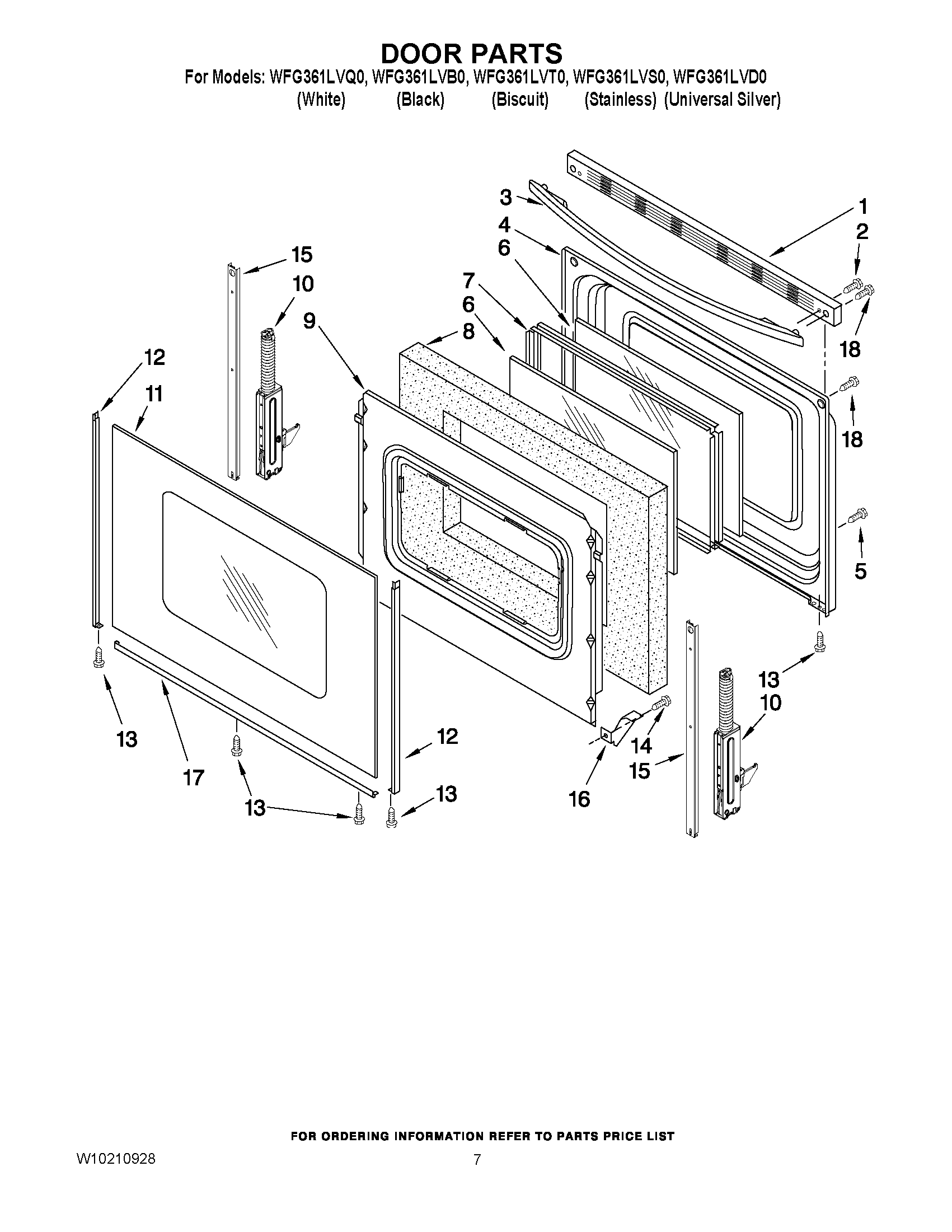

WFG361LVQ0 05 – DOOR PARTS

WFG361LVQ0 05 – DOOR PARTS

Written by

in

WFG361LVQ0 05 – DOOR PARTS

Products

PositionProduct
1WPW10310923 Whirlpool Vent Trim
1TRIM-VENT
1W10817433 Whirlpool Vent Trim
2W10817436 Whirlpool Screw
3Handle, Door (Biscuit)
3WPW10144883 Whirlpool Door Handle
3WPW10323589 Whirlpool Door Handle
3W10817434 Whirlpool Door Handle
4WP9761344 Whirlpool Door Liner
5WPW10031790 Whirlpool Screw
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347466 Whirlpool Door Hinge
10W10347464 Whirlpool Door Hinge
11WPW10118454 Whirlpool Door Outer Glass White
11WPW10330077 Whirlpool Door Glass
11WPW10118455 Whirlpool Door Glass Assembly
11Glass, Outer
11Glass, Outer Door (Biscuit)
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
12W10761014 Whirlpool Right Door Trim
128184858 Whirlpool Door Trim
13W10491985 Whirlpool Screw
14WP3196175 Whirlpool Screw
15W11502236 Whirlpool Door Trim
16WP3196794 Whirlpool Glass Bracket
17Trim, Bottom (Universal Silver)
17WP8523175 Whirlpool Door Trim Assembly
17WP8523177 Whirlpool Door Trim Assembly
17WP8523178 Whirlpool Door Trim
18WPW10200660 Whirlpool Range Oven Door Handle Screw
