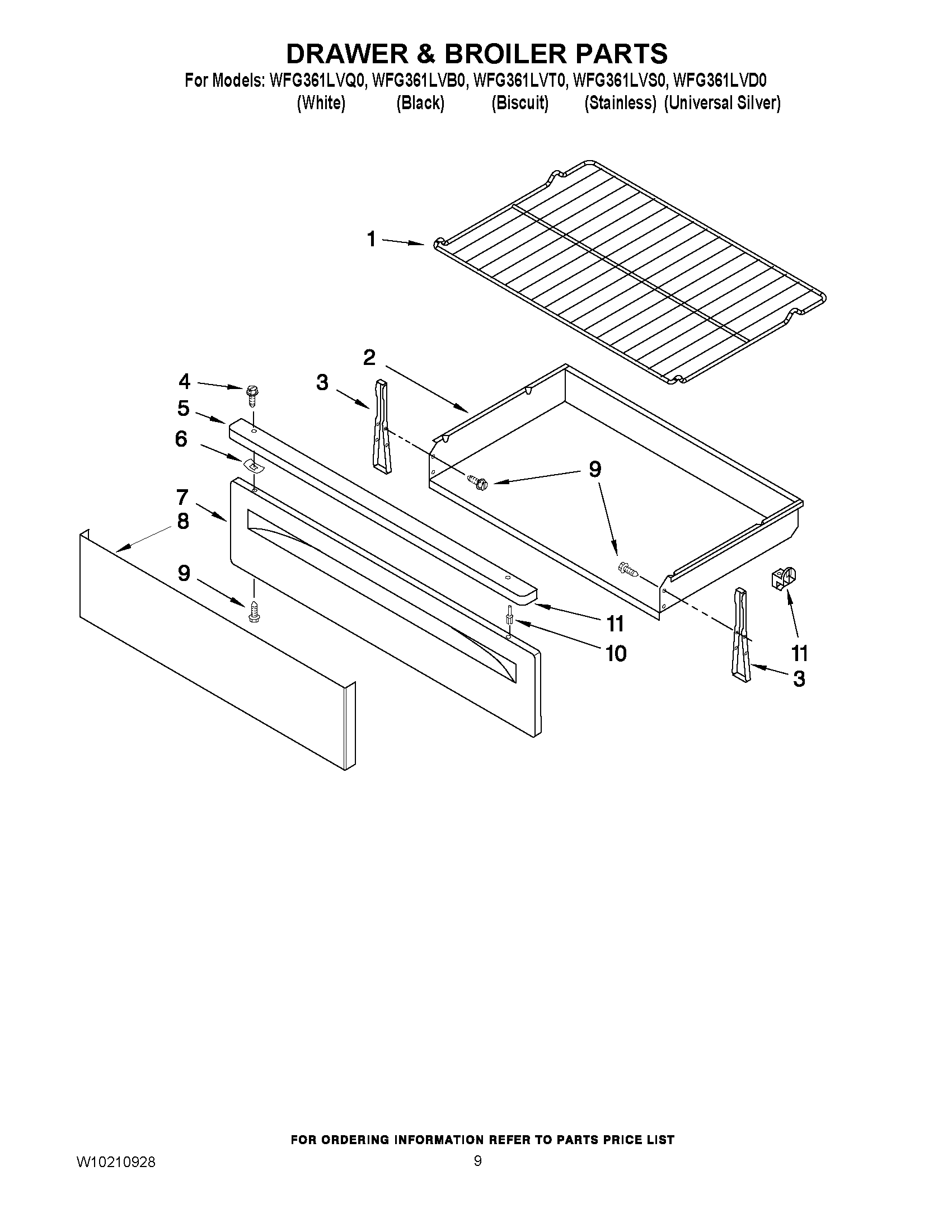

WFG361LVQ0 06 – DRAWER & BROILER PARTS

WFG361LVQ0 06 – DRAWER & BROILER PARTS

Written by

in

WFG361LVQ0 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3Bracket, Drawer
4WPW10031790 Whirlpool Screw
6WP9781235 Whirlpool Clip
7PANEL, DRAWER FRONT (BISCUIT)
7W11226776 Whirlpool Drawer Panel
7W11230490 Whirlpool Drawer Panel
7W11230486 Whirlpool Drawer Panel
8PANEL, DRAWER (STAINLESS ONLY)
9WP3400832 Whirlpool Screw
10WP3196813 Whirlpool Rivet
103196815 Whirlpool Oven Rivet
10WP3196814 Whirlpool Rivet
11WP8053334 Whirlpool Drawer Glide
