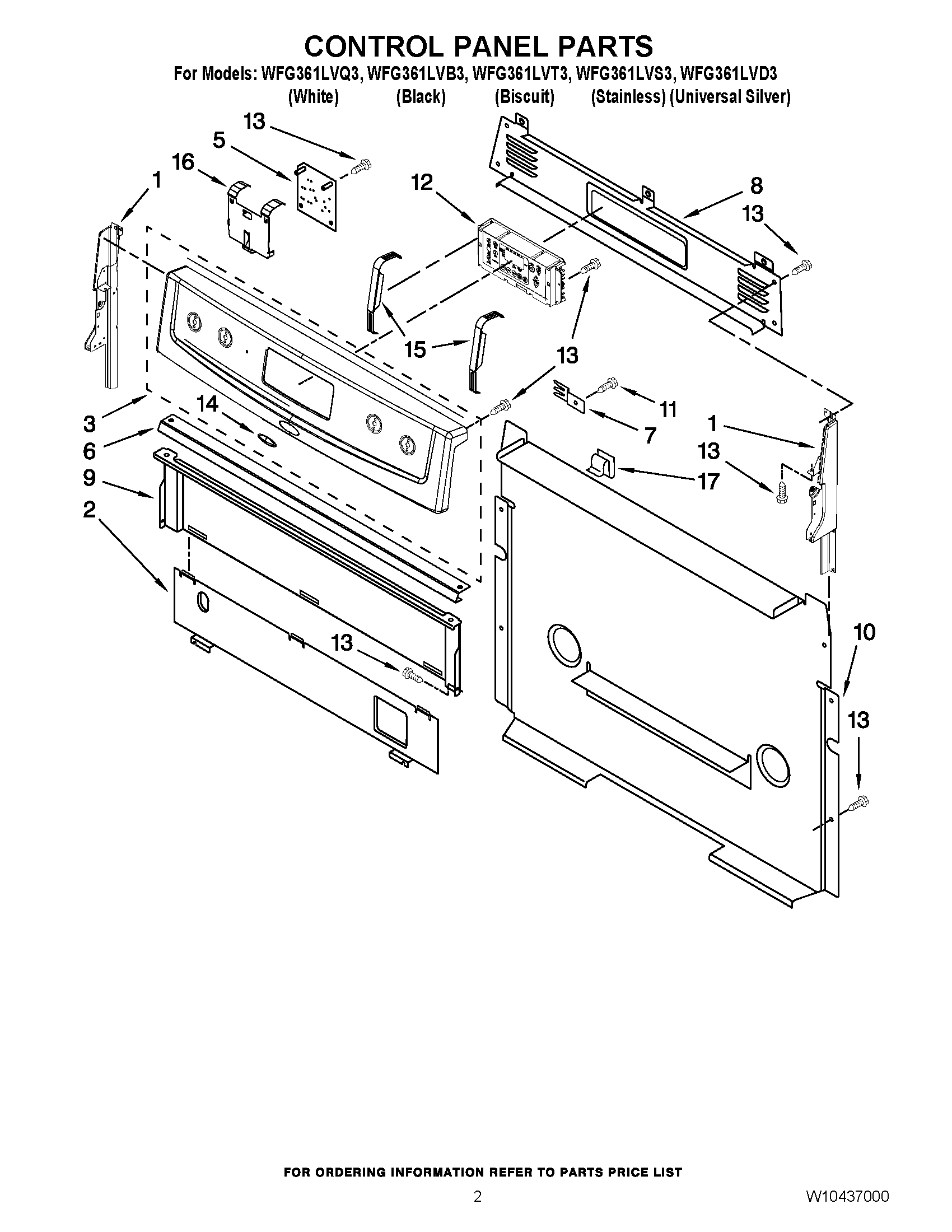

WFG361LVQ3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1W11230612 Whirlpool Panel End Cap
1W11219370 Whirlpool Endcap Panel
1W11219664 Whirlpool Endcap Panel
1W11219665 Whirlpool Panel Endcap
1W11219365 Whirlpool Panel Endcap
1W11230611 Whirlpool Panel Endcap
28053505 Whirlpool Oven Shield
3Panel, Control (Stainless)
3Panel, Control (White)
3Panel, Control (Biscuit)
3Panel, Control (Black)
3Panel, Control (Universal Silver)
5WPW10331686 Whirlpool Oven Spark Module
6Brkt-Mntg, Console
78523412 Whirlpool Mounting Bracket
8W10198745 Whirlpool Rear Cover
9W10192841 Whirlpool Heat Shield
10COVER, BACK
11WP3196557 Whirlpool Screw
12WPW10424330-includeCORE Whirlpool WPW10424330 Refrigerator Electronic Control Board + Core
13SCREW
14Badge
15BRACKET, MOUNTING EOC
16Brkt-Mntg, DSI
17WP8273564 Whirlpool Clip
