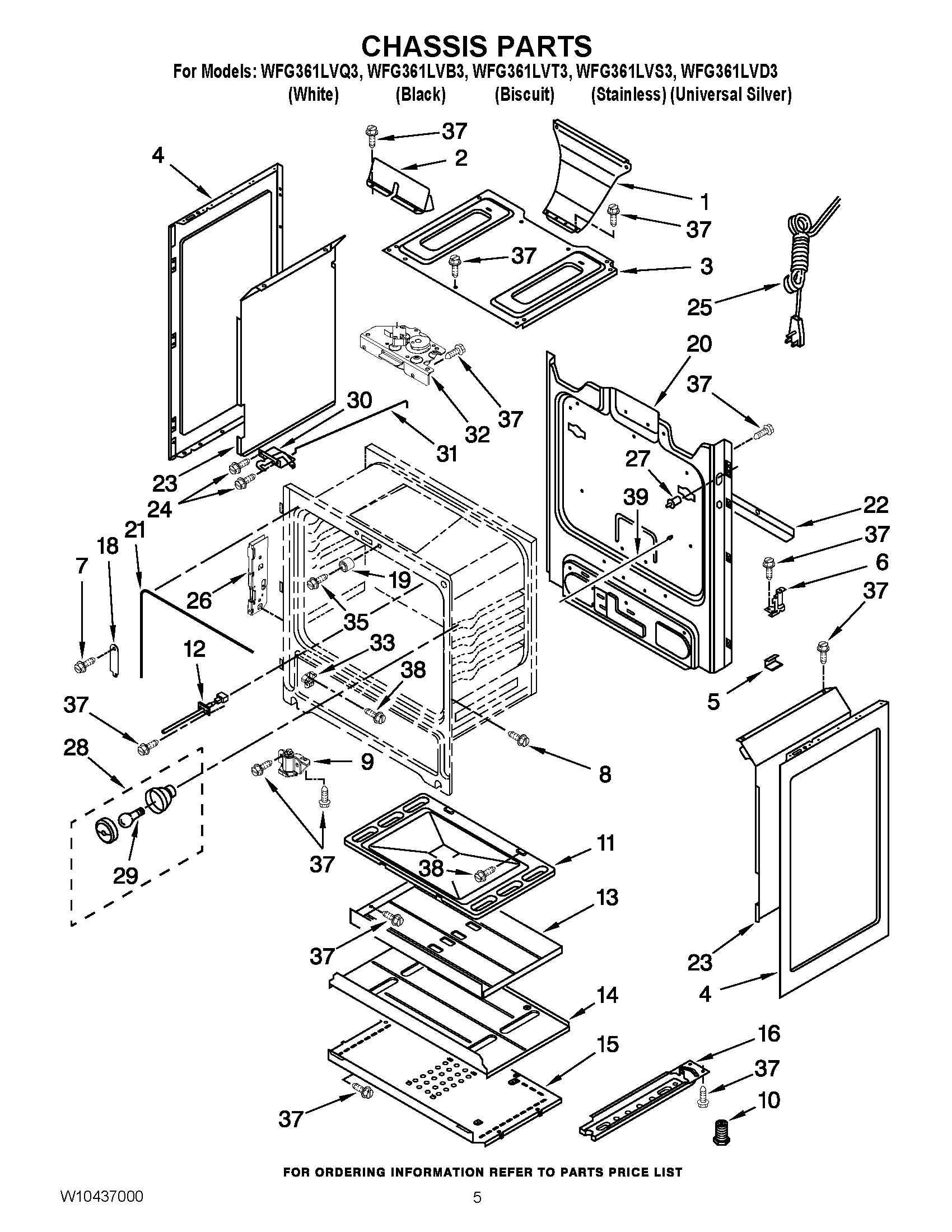

WFG361LVQ3 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684915 Whirlpool Insulation
NI	W11688737 Whirlpool Insulation
1	W11457094 Whirlpool Oven Flue
2	WP8272747 Whirlpool Heat Shield
3	W11379351 Whirlpool Burner Box
4	W10162246 Whirlpool Side Panel
4	W11730303 Whirlpool Side Panel
4	WPW10575396 Whirlpool Side Panel
5	W10137382 Whirlpool Clip
6	8523249 Whirlpool Oven Support Bracket
7	W10777162 Whirlpool Screw
8	WPW10067840 Whirlpool Screw
9	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	WP3195097 Whirlpool Oven Bottom
12	WPW10181986 Whirlpool Oven Sensor
13	8053967 Whirlpool Oven Heat Baffle
14	8053969 Whirlpool Heat Shield
15	8053968 Whirlpool Oven Heat Shield
16	WPW10306546 Whirlpool Base Rail
18	9761517 Whirlpool Oven Clip Assembly
19	W10877054 Whirlpool Spacer Assembly
20	BACK, MAIN
21	W11542153 Whirlpool Door Gasket
22	BRACE, MAIN BACK
23	9761449 Whirlpool Oven Retainer
23	9761448 Whirlpool Oven Retainer
24	W11169708 Whirlpool Screw
25	WP9757891 Whirlpool Power Cord
26	W10647259 Whirlpool Hinge Receiver
27	WP9757262 Whirlpool Light Switch
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
30	WP9761013 Whirlpool Door Latch
31	W10078370 Whirlpool Latch Rod
32	WPW10107820 Whirlpool Door Latch
33	WPW10114344 Whirlpool Drawer Glide
35	WP3196175 Whirlpool Screw
37	SCREW
38	W10379120 Whirlpool Screw
39	9757239 Whirlpool Oven Door Rod
