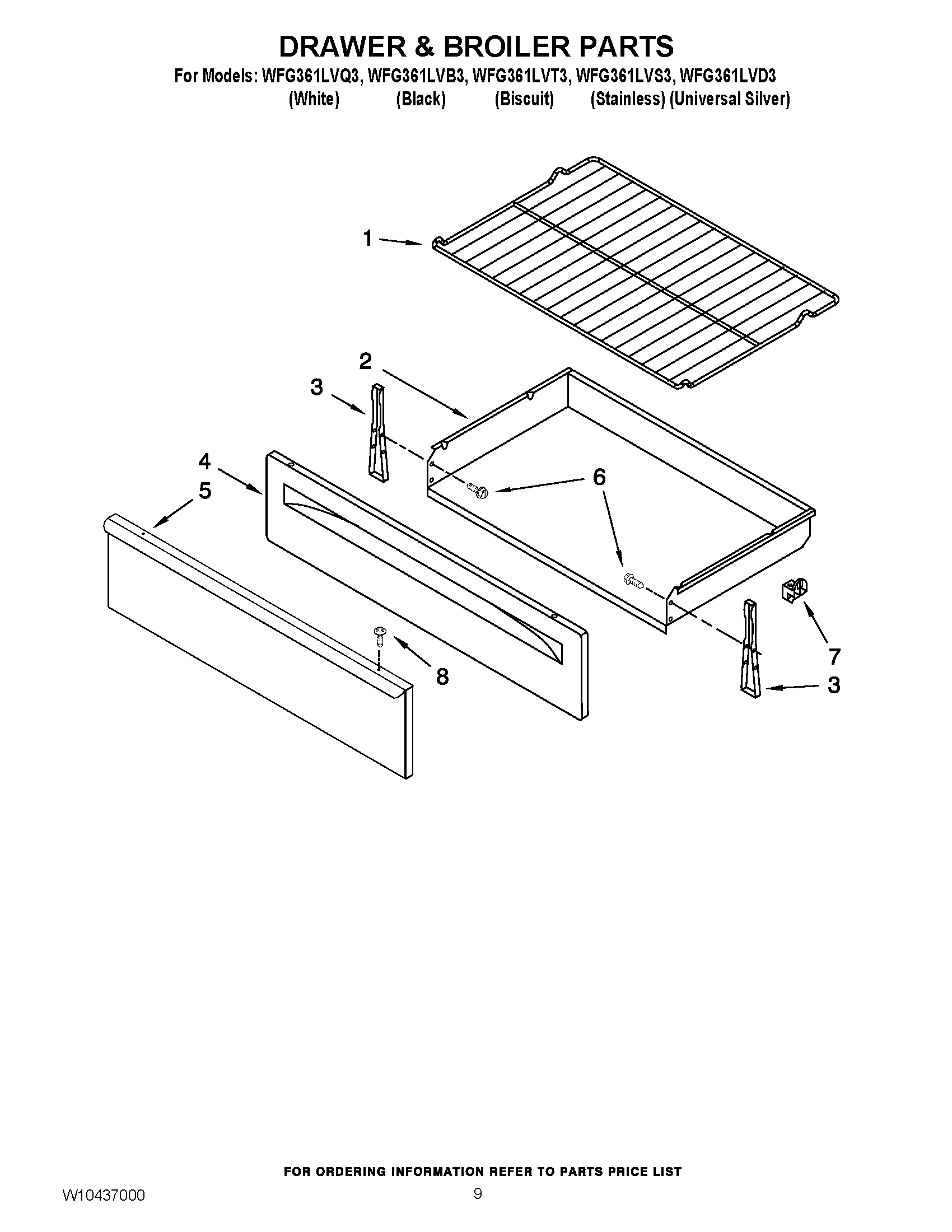

WFG361LVQ3 06 – DRAWER & BROILER PARTS

WFG361LVQ3 06 – DRAWER & BROILER PARTS

Written by

in

WFG361LVQ3 06 – DRAWER & BROILER PARTS

Products

PositionProduct
1RACK-OVEN
2Drawer, Storage
3Bracket, Drawer
3BRKT-MNTG
4PANEL, DRAWER FRONT (BISCUIT)
4W11226776 Whirlpool Drawer Panel
4W11230490 Whirlpool Drawer Panel
4W11230486 Whirlpool Drawer Panel
5PANEL, DRAWER (STAINLESS ONLY)
6WP3196814 Whirlpool Rivet
6WP3196813 Whirlpool Rivet
7WP8053334 Whirlpool Drawer Glide
8Screw
