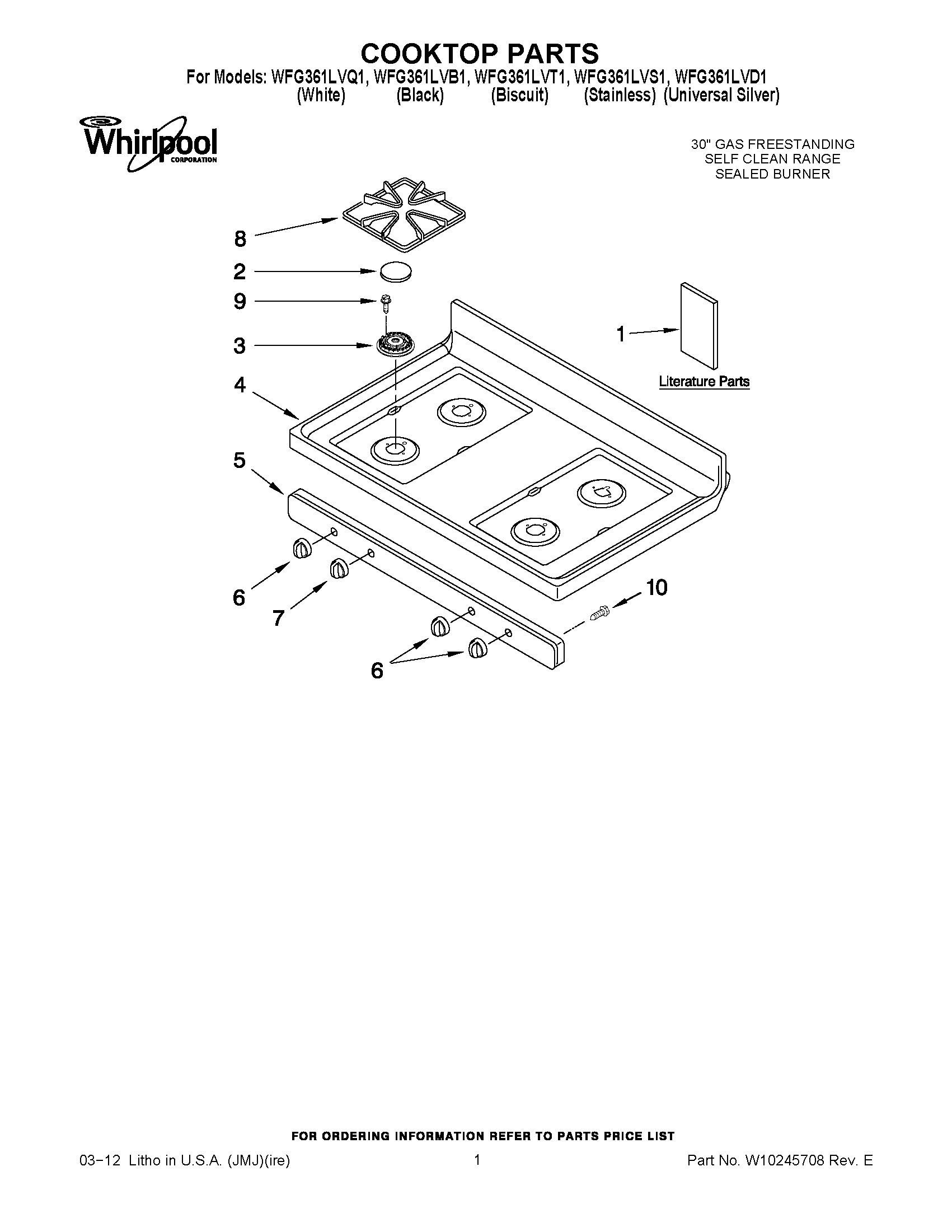

WFG361LVS1 01 – COOKTOP PARTS

WFG361LVS1 01 – COOKTOP PARTS

Written by

in

WFG361LVS1 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
1Owners Manual
1Installation Instructions
1Tech Sheet
2Cap, Burner R. Rear (Grey)
2WP8273344 Whirlpool Burner Cap
2WP8273345 Whirlpool Burner Cap
2WPW10169984 Whirlpool Burner Cap
2Cap, Burner L.Front (Black)
2Cap, Burner L Front (Grey)
2Cap, Burner R. Front, L. Rear (Grey)
2WP8273343 Whirlpool Burner Cap
2WPW10169985 Whirlpool Burner Cap
3WPW10406243 Whirlpool Burner Head Auxiliary 6K
3WPW10406283 Whirlpool Burner Head Semi (9.5K) (RR CTR)
3WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
4W11213958 Whirlpool Oven Cooktop
48195546 Whirlpool Oven Cooktop O/S2
4W11213959 Whirlpool Cooktop
58523855 Whirlpool Oven Manifold Panel
5WP8523854 Whirlpool Manifold Panel
5Panel, Manifold (Biscuit)
6WP8273103 Whirlpool Black Control Knob
6WP8273104 Whirlpool Knob
6WP8273106 Whirlpool Knob
8Grate (4) (Espresso)
8WPW10447925 Whirlpool Grate Kit
9WP3368921 Whirlpool Screw
10WP3196557 Whirlpool Screw
