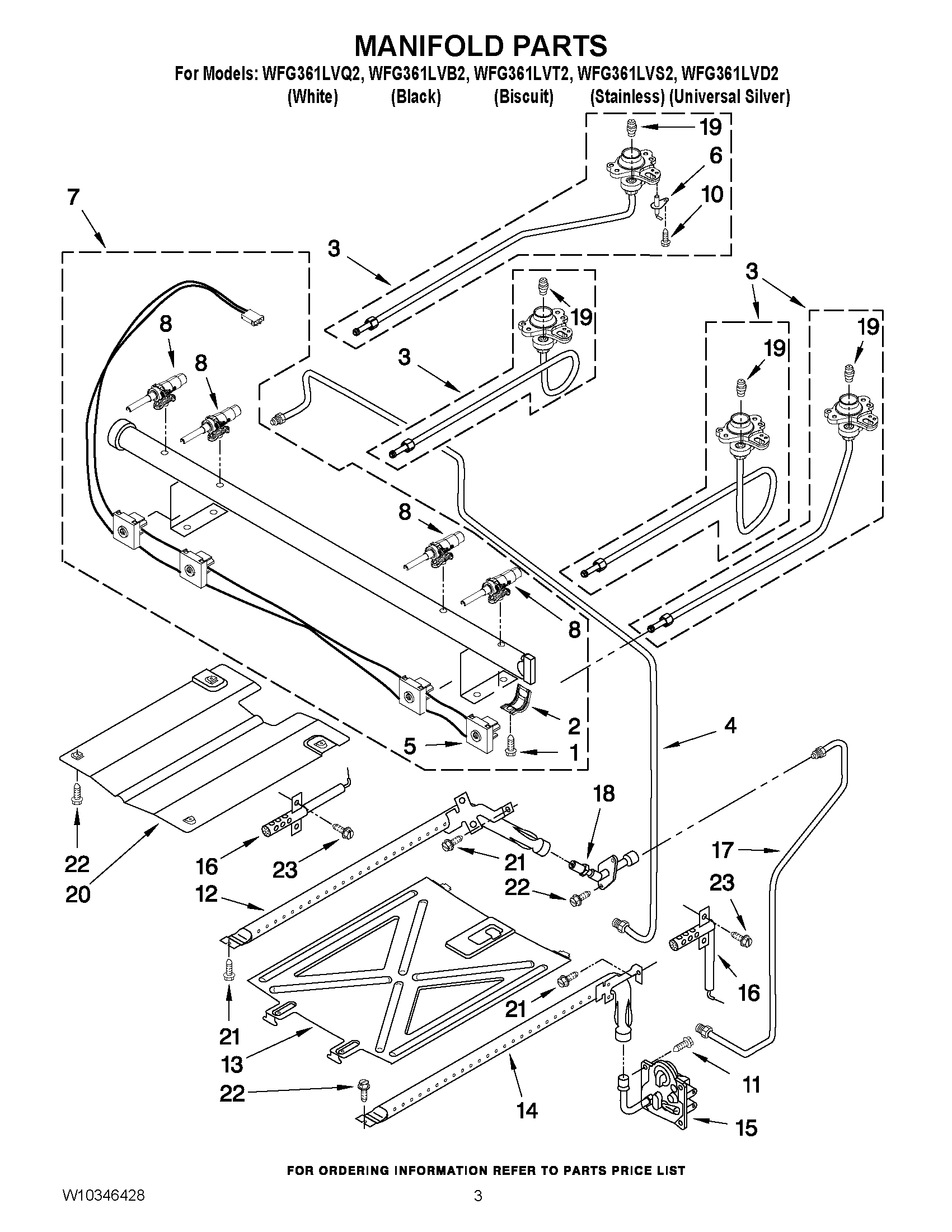

WFG361LVS2 03 – MANIFOLD PARTS

Products

Position	Product
NI	WPW10170531 Whirlpool Spud Orifice
1	W10295997 Whirlpool Screw
2	W10949105 Whirlpool Mounting Bracket
3	WPW10175217 Whirlpool Orifice Holder
3	TUBING, BURNER W/ORIFICE (LEFT REAR)
3	WPW10201350 Whirlpool Orifice Holder
3	WPW10201349 Whirlpool Orifice Holder
4	TUBING (MANIFOLD TO REGULATOR)
5	WPW10295998 Whirlpool Wire Harness
6	WPW10216419 Whirlpool Surface Igniter
7	W10314242 Whirlpool Manifold Pipe
8	WPW10279614 Whirlpool Burner Valve
8	WPW10247744 Whirlpool Burner Valve
10	WP8273062 Whirlpool Screw
11	WP3400016 Whirlpool Screw Assembly
12	WP8054078 Whirlpool Broiler Burner
13	WPW10184491 Whirlpool Burner Baffle
14	WP9758078 Whirlpool Oven Burner
15	WPW10293048 Whirlpool Gas Valve
16	WP9758079 Whirlpool Oven Igniter
16	WP8054129 Whirlpool Oven Igniter
17	Tubing (Broiler Fitting To Valve)
18	Fitting, Broiler
19	WPW10170506 Whirlpool Orifice Spud
19	WPW10170508 Whirlpool Orifice Spud
19	WPW10185023 Whirlpool Spud Orifice
20	W10137062 Whirlpool Burner Baffle
21	3196265 Whirlpool Oven Screw
22	SCREW
23	W11684507 Whirlpool Screw
