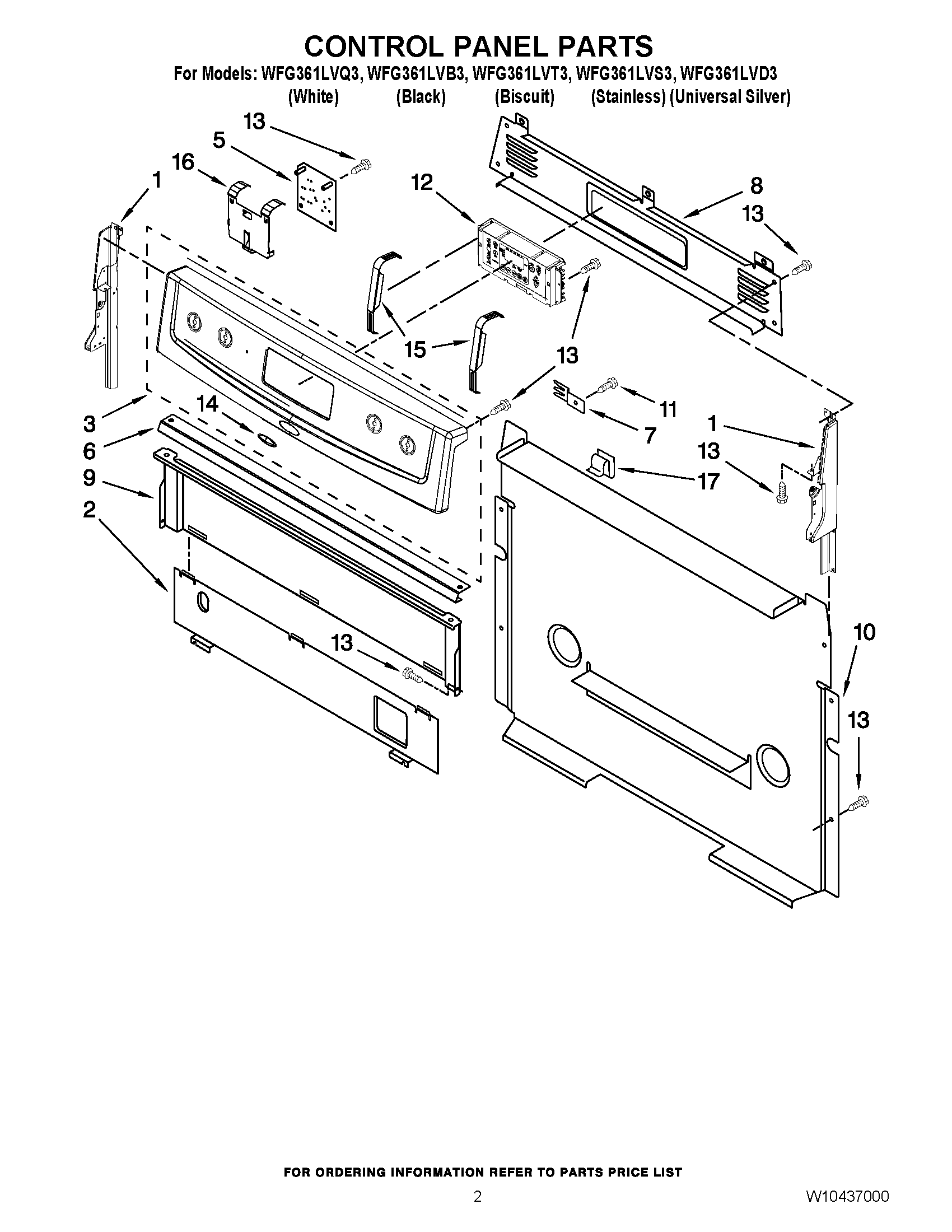

WFG361LVT3 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219664 Whirlpool Endcap Panel
1	W11219665 Whirlpool Panel Endcap
1	W11219365 Whirlpool Panel Endcap
1	W11230611 Whirlpool Panel Endcap
2	8053505 Whirlpool Oven Shield
3	Panel, Control (Stainless)
3	Panel, Control (White)
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (Universal Silver)
5	WPW10331686 Whirlpool Oven Spark Module
6	Brkt-Mntg, Console
7	8523412 Whirlpool Mounting Bracket
8	W10198745 Whirlpool Rear Cover
9	W10192841 Whirlpool Heat Shield
10	COVER, BACK
11	WP3196557 Whirlpool Screw
12	WPW10424330-includeCORE Whirlpool WPW10424330 Refrigerator Electronic Control Board + Core
13	SCREW
14	Badge
15	BRACKET, MOUNTING EOC
16	Brkt-Mntg, DSI
17	WP8273564 Whirlpool Clip
