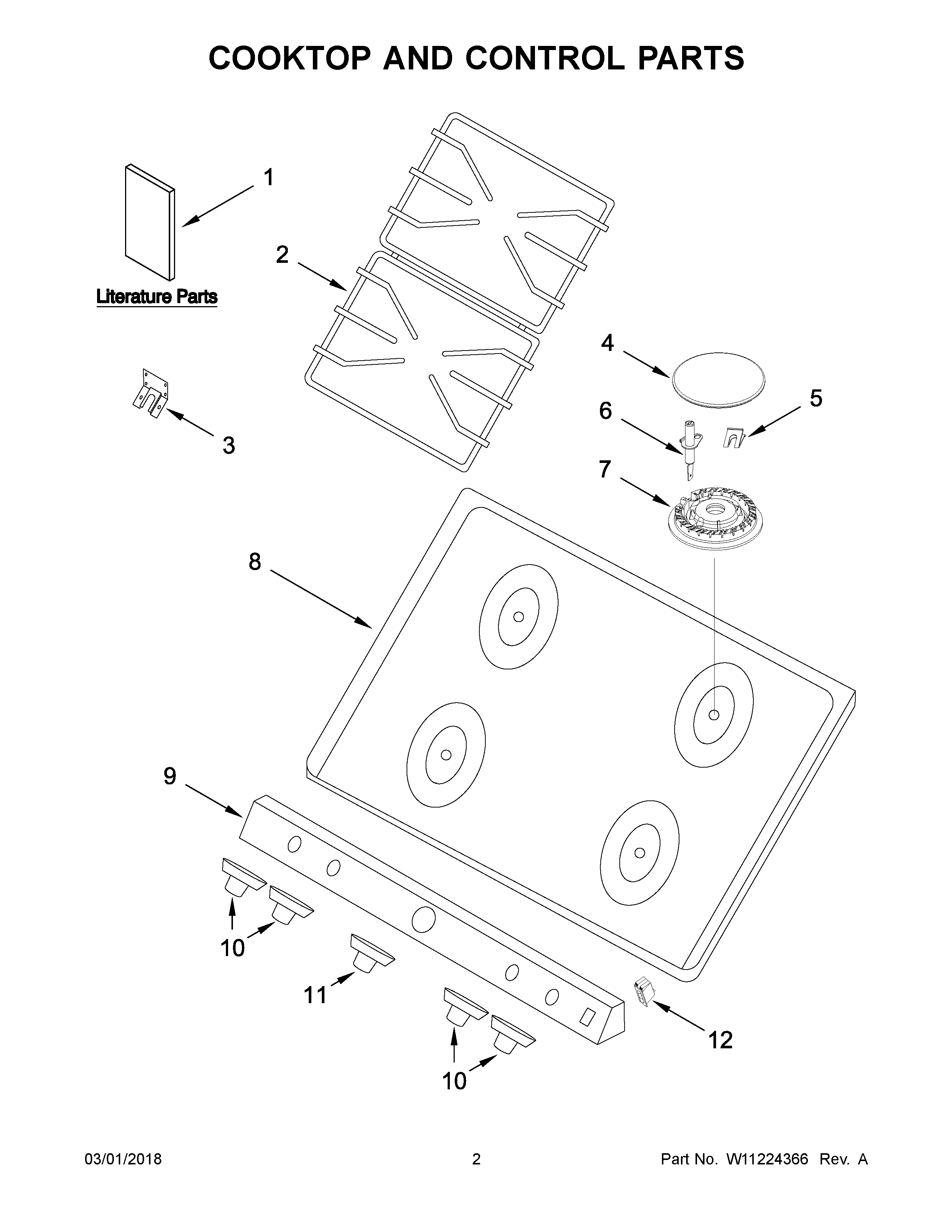

WFG500M4HS0 02 – COOKTOP AND CONTROL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1A	USE AND CARE GUIDE
2	W11225759 Whirlpool Burner Grate
3	BRACKET, ANTI-TIP
4	W11225776 Whirlpool Burner Cap
4A	W11225780 Whirlpool Burner Cap
4B	W11225779 Whirlpool Burner Cap
5	CLIP, ELECTRODE
6A	ELECTRODE (RIGHT FRONT, RIGHT REAR)
6	ELECTRODE (LEFT FRONT, LEFT REAR)
7	SPREADER, FLAME (LEFT FRONT)
7A	SPREADER, FLAME (RIGHT FRONT, LEFT REAR)
7B	SPREADER, FLAME (RIGHT REAR)
8	COOKTOP (BLACK)
9	PANEL, MANIFOLD
10	KNOB, BURNER
11	KNOB, THERMOSTAT
12	W11224771 Whirlpool Light Switch
