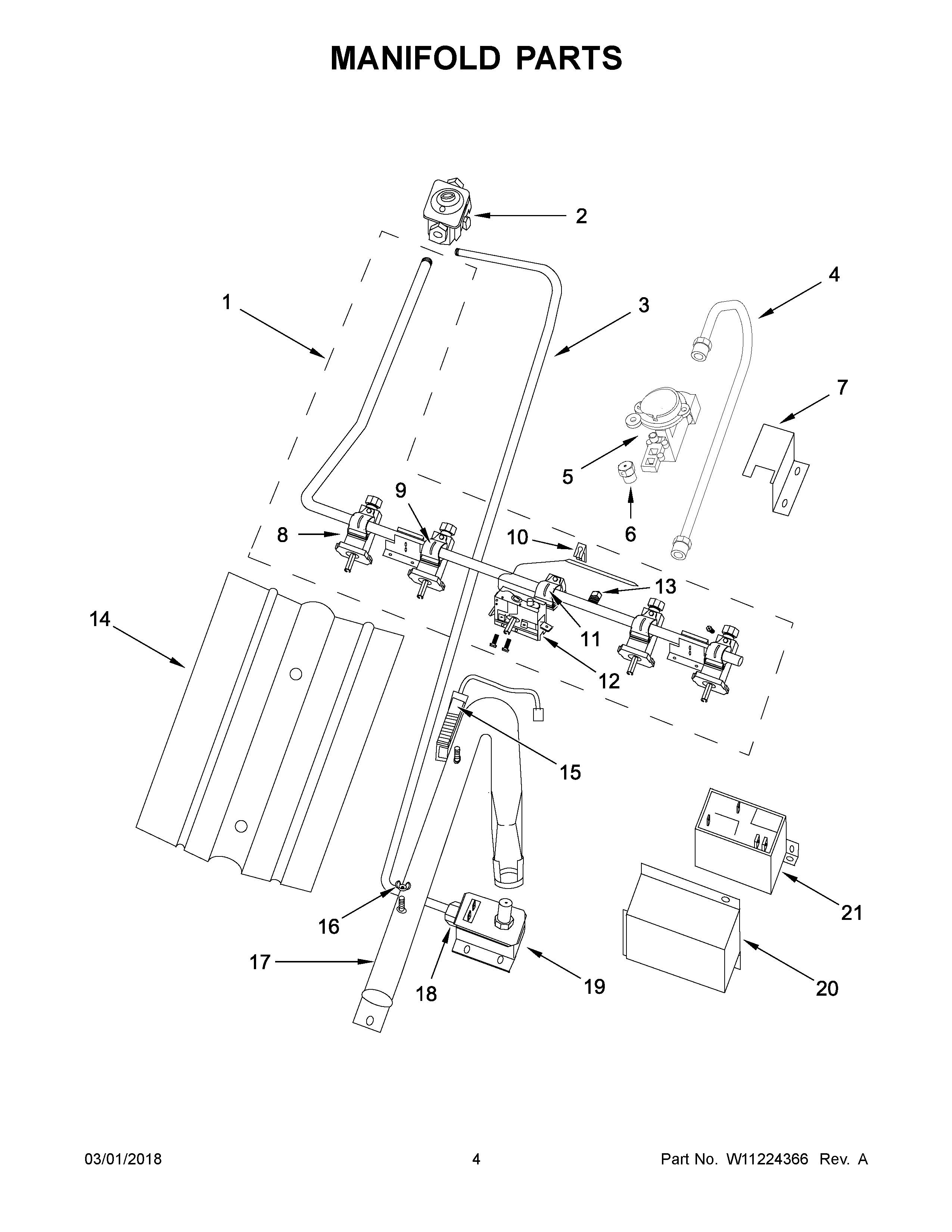

WFG500M4HS0 03 – MANIFOLD PARTSadmin2025-04-26T11:37:13+00:00WFG500M4HS0 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | KIT, NATURAL GAS CONVERSION (SEE INSTALLATION INSTRUCTIONS) |
| NI | W11225858 Whirlpool Wire Harness |
| NI | W11297268 Whirlpool Conversion Kit |
| NI | CABINET (NOT A SERVICEABLE PART) |
| 1 | W11234821 Whirlpool Manifold |
| 2 | W11225835 Whirlpool Regulator |
| 3 | TUBING, OVEN SUPPLY |
| 4 | TUBING, BURNER (FRONT) |
| 4A | TUBING, BURNER (REAR) |
| 5C | HOLDER-ORF |
| 5B | HOLDER-ORF |
| 5A | HOLDER-ORF |
| 5 | HOLDER-ORF |
| 6 | ORIFICE (NATURAL) (LEFT FRONT) |
| 6A | ORIFICE (NATURAL) (LEFT REAR) |
| 6B | ORIFICE (NATURAL) (RIGHT FRONT) |
| 6C | ORIFICE (NATURAL) (RIGHT REAR) |
| 7 | BRACKET, BURNER |
| 8 | W11225836 Whirlpool Burner Valve |
| 9 | CLAMP, VALVE |
| 10 | CLIP, THERMOSTAT BULB |
| 11 | CLAMP, THERMOSTAT |
| 12 | W11225755 Whirlpool Thermostat |
| 13 | PLUG, MANIFOLD |
| 14 | BAFFLE, BURNER |
| 15 | W11225831 Whirlpool Oven Igniter |
| 16 | WP488130 Whirlpool Air Conditioner Nut |
| 17 | W11225834 Whirlpool Burner |
| 18 | FITTING, OVEN VALVE |
| 19 | W11225860 Whirlpool Gas Valve |
| 20 | COVER, MODULE BOX |
| 21 | W11225857 Whirlpool Spark Module |
