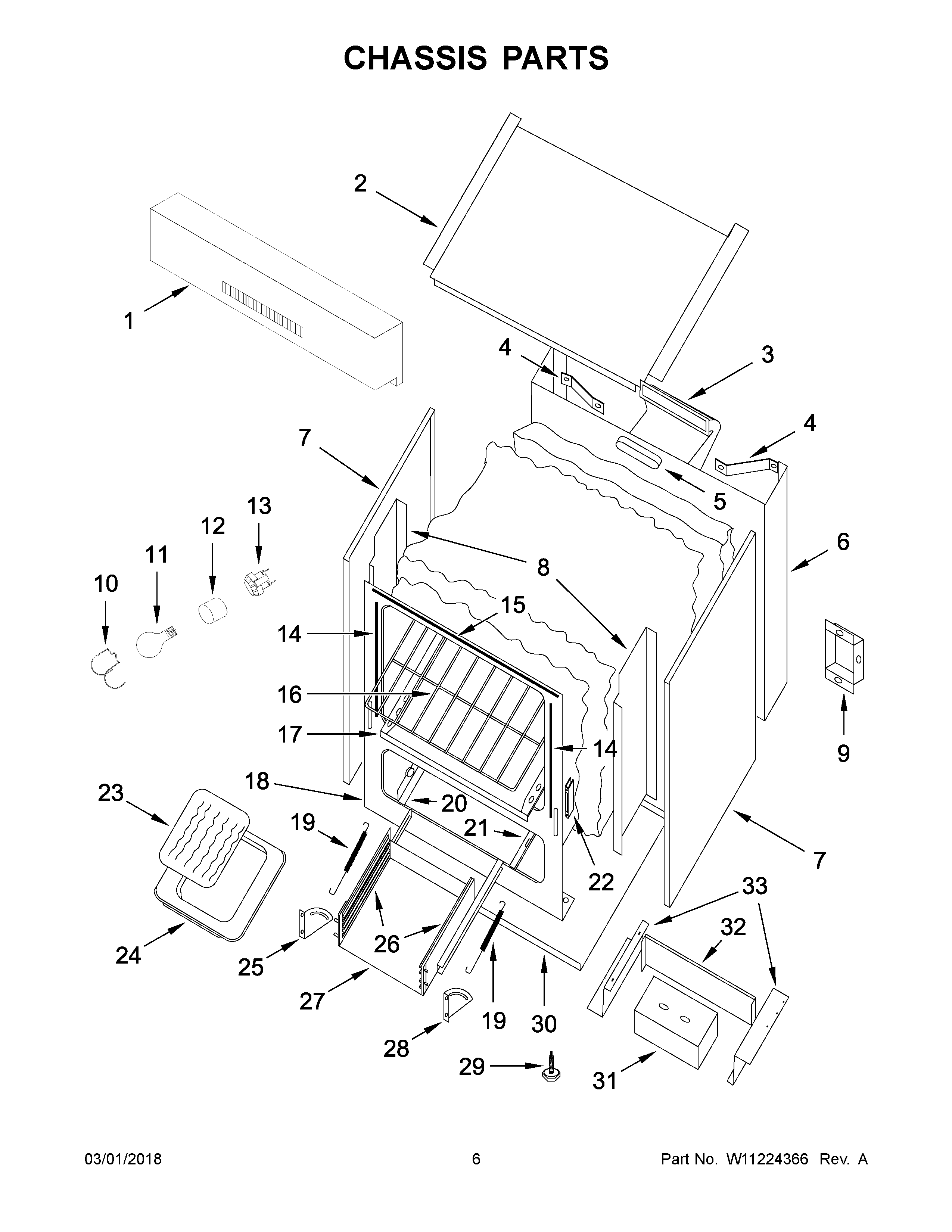

WFG500M4HS0 04 – CHASSIS PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	CORD, POWER
NI	RELIEF, STRAIN
NI	INSULATION, BACK OR BOTTOM
NI	INSULATION, WRAP
NI	BUSHING, WIRE
1	W11224747 Whirlpool Backguard
2	BOTTOM, BURNER BOX
3	BOX, FLUE
4	BRACE, BACK
5	GASKET, FLUE
6	BACK, MAIN
7	W11222958 Whirlpool Cabinet Panel
8	BAFFLE, INNER SIDE
9	BOX, POWER
10	GUARD, OVEN LIGHT
11	RANGE ONLY 40W 120V APPL BULB
12	SOCKET, BULB
13	RECEPTACLE, LIGHT
14	GASKET, OVEN SIDE
15	GASKET, OVEN TOP
16	RACK, OVEN
17	W11225761 Whirlpool Bottom
18	FRAME-FRNT
19	SPRING, DOOR
20	SLIDE, DRAWER (LEFT)
21	SLIDE, DRAWER (RIGHT)
22	RECEIVER, HINGE
23	GRILL, BROILER
24	PAN, BROILER
25	HINGE, BROILER (LEFT)
26	W11224736 Whirlpool Drawer Slide
27	DRAWER, BROILER
28	HINGE, BROILER (RIGHT)
29	LEG, LEVELER
30	BOTTOM, MAIN
31	COUNTERWEIGHT
32	CROSS BRACE, REAR
33	SUPPORT, REAR SIDE
