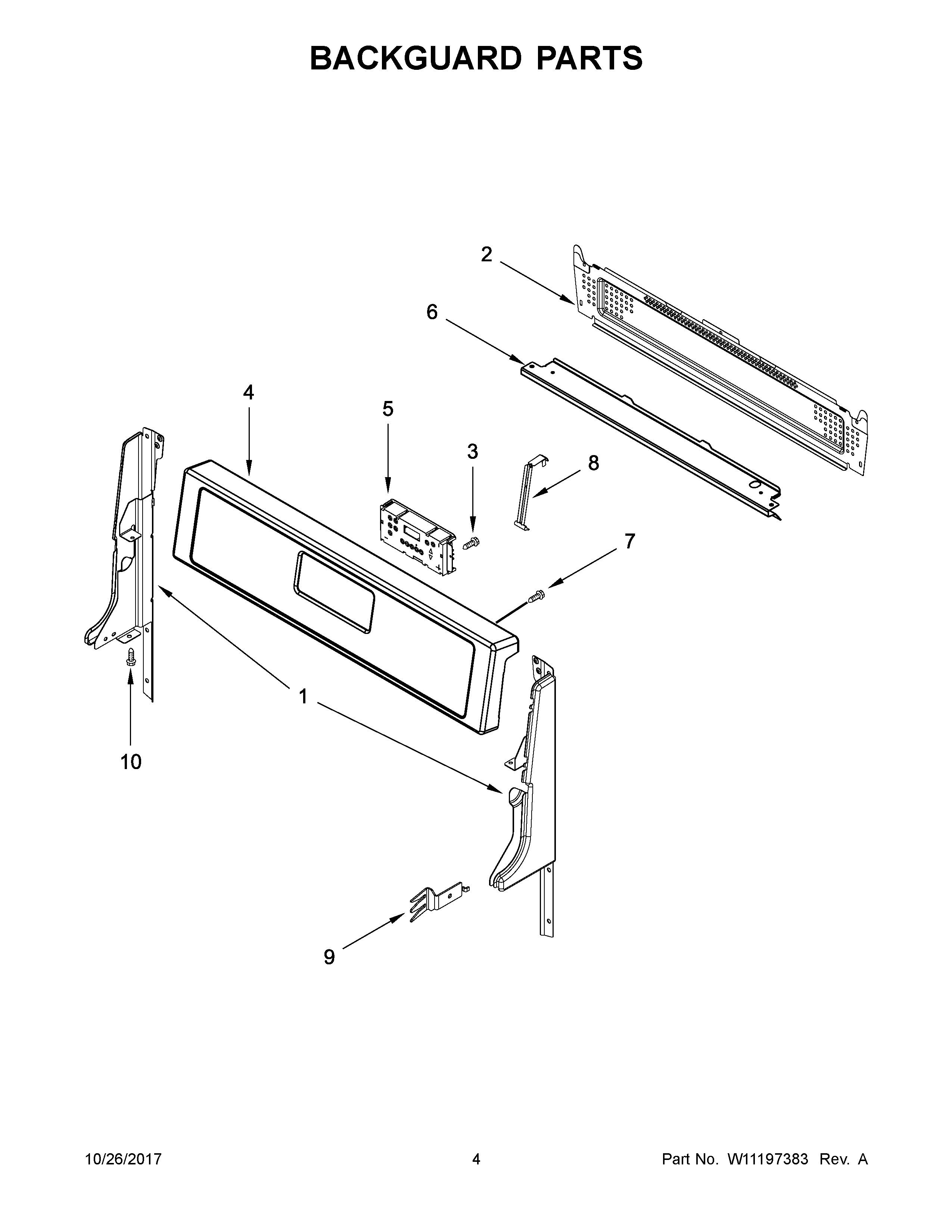

WFG505M0BS2 03 – BACKGUARD PARTS

WFG505M0BS2 03 – BACKGUARD PARTS

Written by

in

WFG505M0BS2 03 – BACKGUARD PARTS

Products

PositionProduct
1CW10873438 Whirlpool Endcap Panel
1BW10873107 Whirlpool Panel Endcap
1W10873109 Whirlpool Endcap Panel
1AW10873441 Whirlpool Panel Endcap
2W10588614 Whirlpool Rear Cover Assembly
3SCREW
4BW11097777 Whirlpool Control Panel
4W11121752 Whirlpool Control Panel
4AW11171357 Whirlpool Control Panel
5AW11113908 Whirlpool Electronic Control Board
5W11126814 Whirlpool Refrigerator Electronic Control Board
6W10535746 Whirlpool Deflector
7WP98008545 Whirlpool Screw
7AWP98008544 Whirlpool Screw Assembly
8W11230932 Whirlpool Bracket Mounting
9W10535815 Whirlpool Mounting Bracket
10W10837731 Whirlpool Screw Assembly
