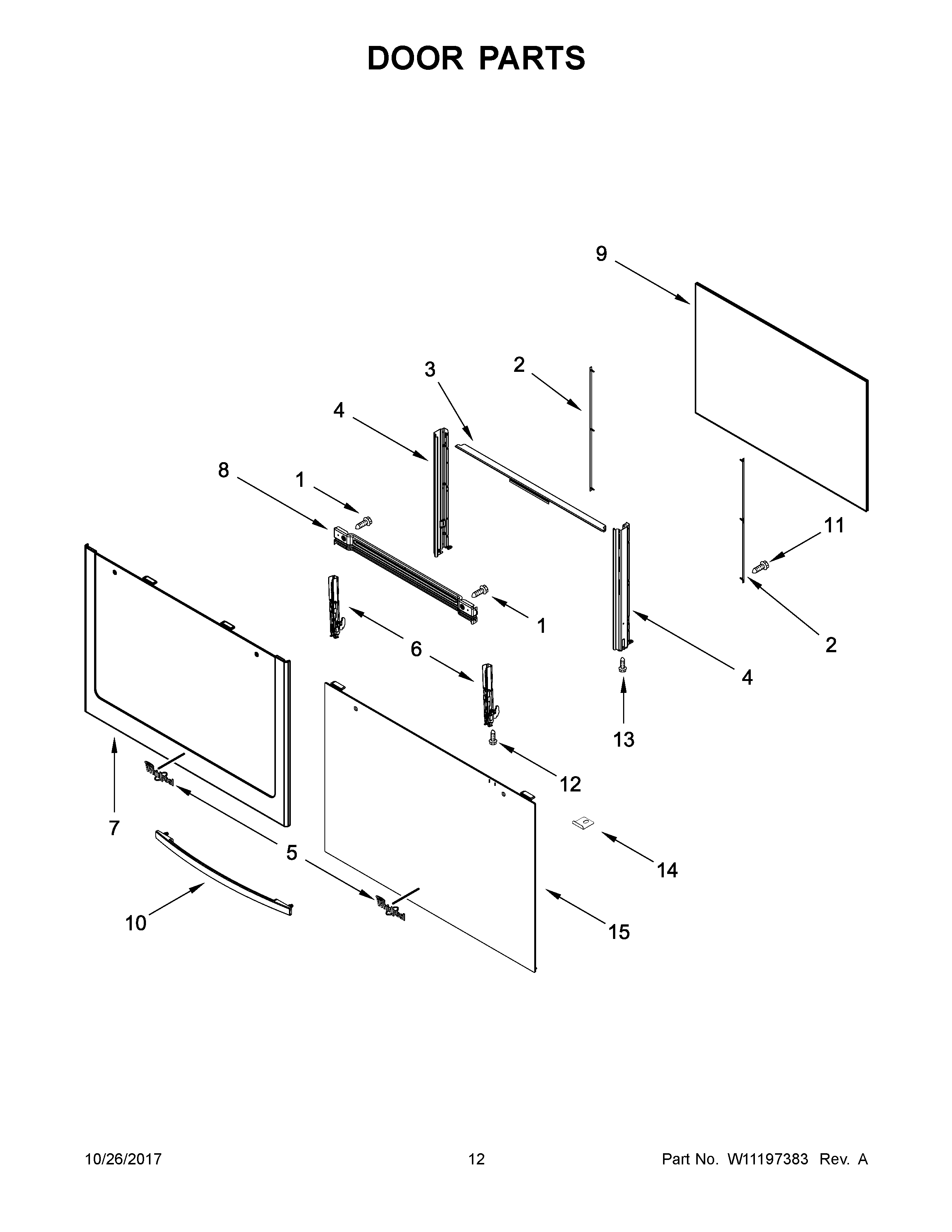

WFG505M0BS2 07 – DOOR PARTS

Products

Position	Product
1	WPW10277003 Whirlpool Screw
2	W11104748 Whirlpool Door Gasket
3	W11105139 Whirlpool Glass Bracket
4	W11209792 Whirlpool Door Trim
4A	W11232008 Whirlpool Door Trim
5A	W11178521 Whirlpool Dishwasher Nameplate
6	W10857234 Whirlpool Door Hinge
6A	W11240518 Whirlpool Door Hinge
7	W11176456 Whirlpool Dishwasher Outer Door Glass
8	W11389703 Whirlpool Bracket
9	WPW10535767 Whirlpool Door Glass
10B	W10894054 Whirlpool Door Handle Assembly
10A	W11105179 Whirlpool Door Handle
10	W11205070 Whirlpool Door Handle
11	W11206744 Whirlpool Screw
12	W10837674 Whirlpool Screw
13	W10837731 Whirlpool Screw Assembly
14	W10883315 Whirlpool Mounting Bracket
14A	W11170320 Whirlpool Mounting Bracket
15	GLASS-DOOR
15A	WPW10535777 Whirlpool Door Glass Assembly
