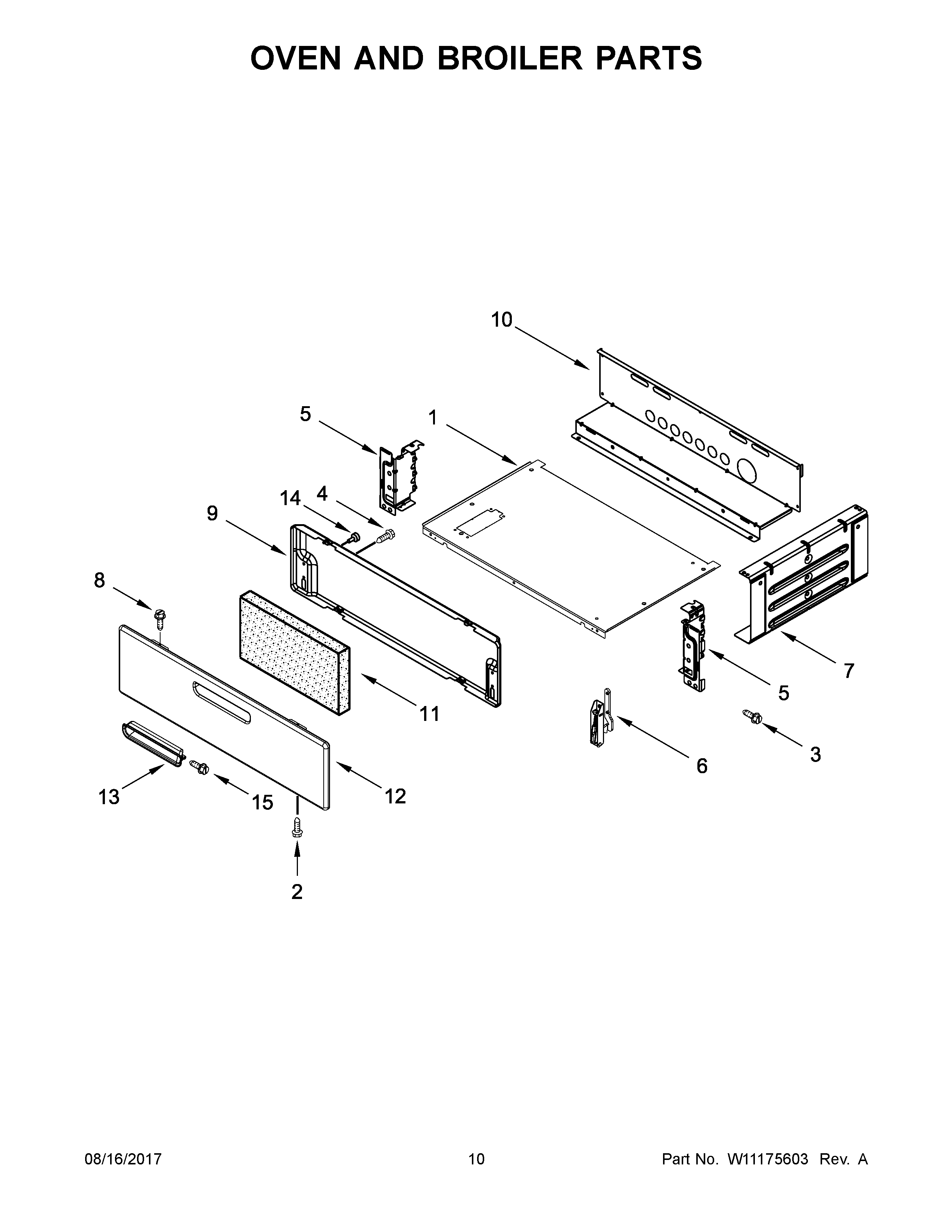

WFG505M0BS3 06 – OVEN AND BROILER PARTS

WFG505M0BS3 06 – OVEN AND BROILER PARTS

Written by

in

WFG505M0BS3 06 – OVEN AND BROILER PARTS

Products

PositionProduct
1W10680059 Whirlpool Baffle Assembly
2SCREW
3WP98008545 Whirlpool Screw
4W10155121 Whirlpool Screw
5W10624273 Whirlpool Support
5AW10624275 Whirlpool Support
6W10647966 Whirlpool Door Hinge Assembly
7PANEL, SIDE
8WP3400832 Whirlpool Screw
9W10446851 Whirlpool Door Liner
10W10682676 Whirlpool Back Liner
11W11706803 Whirlpool Appliance Insulation
12W11596150 Whirlpool Drawer Panel
13W10495568 Whirlpool Door Handle
14BUMPER, DOOR
15WP59002061 Whirlpool Microwave Screw
