WFG505M0BW0 02 – COOKTOP PARTS
Written by
in

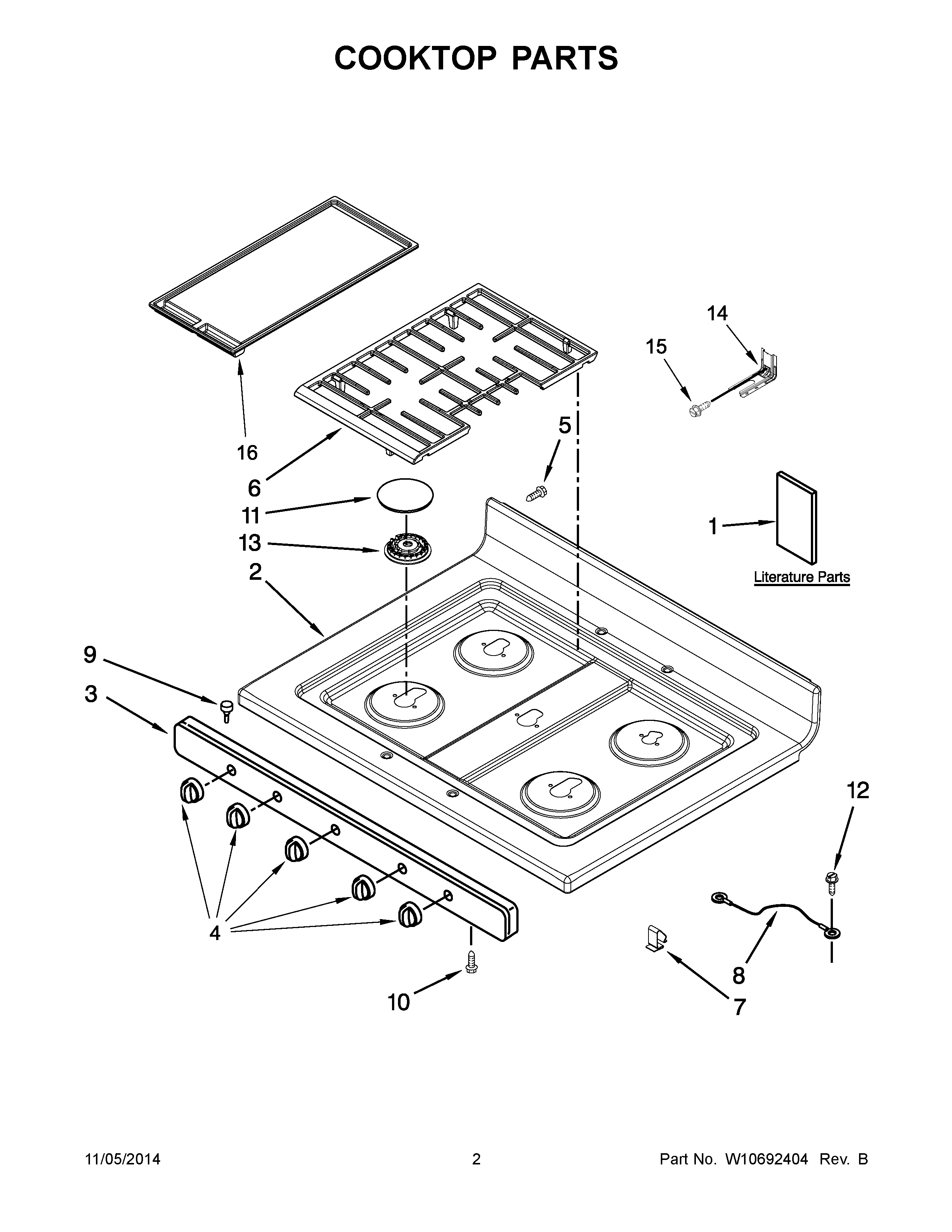

WFG505M0BW0 02 – COOKTOP PARTS
Products
Position
Product
NI
WP3391018 Whirlpool Wire Tie
NI
98015022 Whirlpool Bushing Assembly
NI
W10544364 Whirlpool Wire Harness
NI
3196696 Whirlpool Clip
NI
CABINET (NOT A SERVICEABLE PART)
NI
CLIP, WIRE
NI
549193 Whirlpool Refrigerator Power Clamp
1B
Safer Cooking Tips
1
INSTRUCTIONS, INSTALLATION
1C
SHEET, TECH
1A
GUIDE, USE AND CARE
2A
WPW10527866 Whirlpool Cooktop Assembly
2
WPW10527865 Whirlpool Cooktop
3A
W10620550 Whirlpool Manifold Panel
3
W10620549 Whirlpool Manifold Panel
4
WPW10339443 Whirlpool Knob
4A
WPW10339442 Whirlpool Range Black Burner Control Knob
5
WP98007225 Whirlpool Screw Assembly
6
W10620480 Whirlpool Burner Grate
7
CLIP, COOKTOP
8
3184020 Whirlpool Oven Wire
9
W10831827 Whirlpool Bumper
10
SCREW
11A
WPW10183369 Whirlpool Burner Cap
11
WPW10183368 Whirlpool Burner Cap
11B
WPW10183370 Whirlpool Burner Cap
12
W10850756 Whirlpool Screw
13
WPW10515455 Whirlpool Burner Head
13A
WPW10515454 Whirlpool Burner Head
13B
WPW10515453 Whirlpool Burner Head
14
WPW10613666 Whirlpool Bracket
15
SCREW, ANTI-TIP KIT
16
W10554125 Whirlpool Griddle
←
