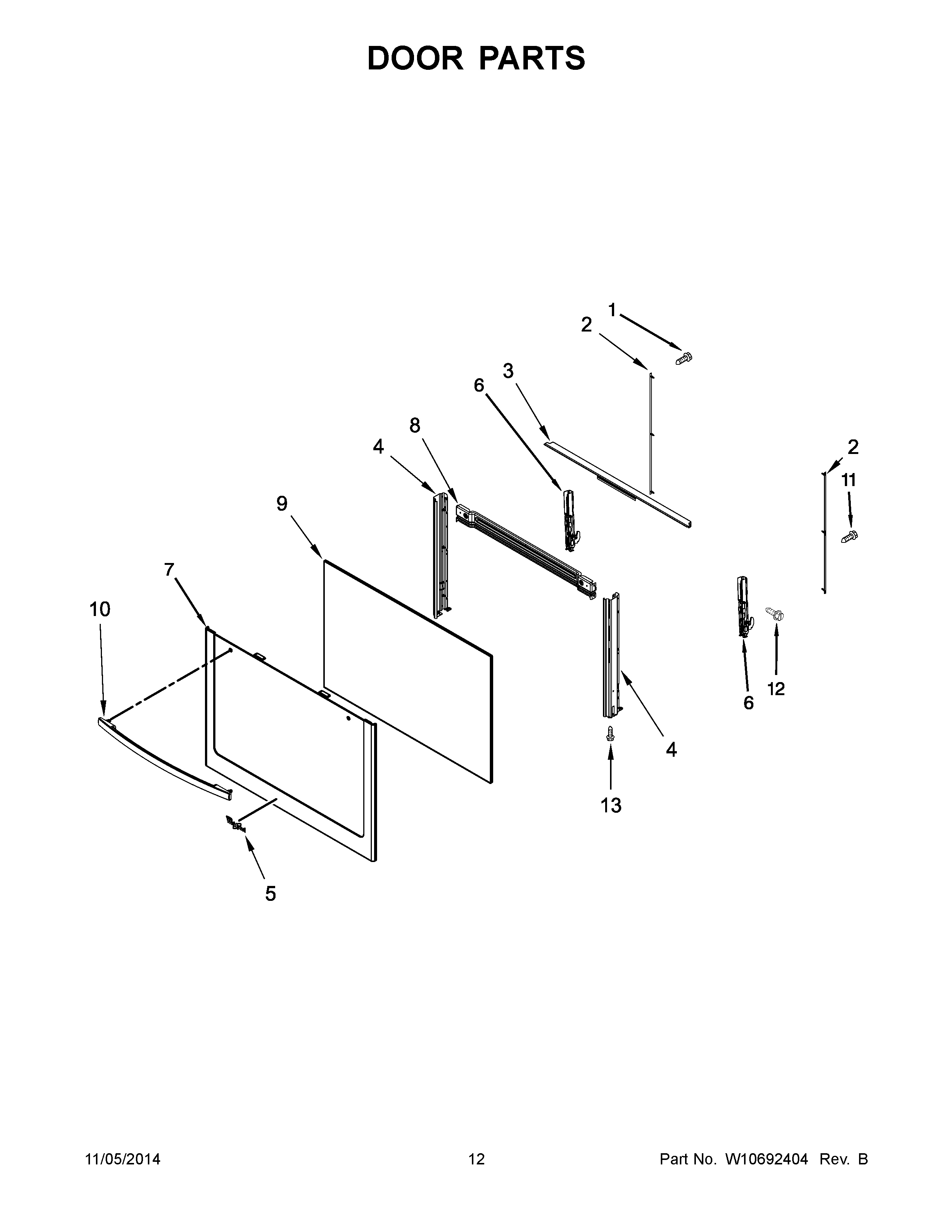

WFG505M0BW0 07 – DOOR PARTS

Products

Position	Product
1	WP3400832 Whirlpool Screw
2	W11104748 Whirlpool Door Gasket
3	W11105139 Whirlpool Glass Bracket
4A	W11232008 Whirlpool Door Trim
4	W11209792 Whirlpool Door Trim
5	W11178521 Whirlpool Dishwasher Nameplate
6	W10857234 Whirlpool Door Hinge
6A	W11240518 Whirlpool Door Hinge
7B	WPW10535793 Whirlpool Door Glass
7	WPW10535777 Whirlpool Door Glass Assembly
7A	GLASS-DOOR
8	W11389703 Whirlpool Bracket
9	WPW10535767 Whirlpool Door Glass
10A	W11205070 Whirlpool Door Handle
10	W11105179 Whirlpool Door Handle
10B	W10894054 Whirlpool Door Handle Assembly
11	W11206744 Whirlpool Screw
12	W10837731 Whirlpool Screw Assembly
13	W10837674 Whirlpool Screw
