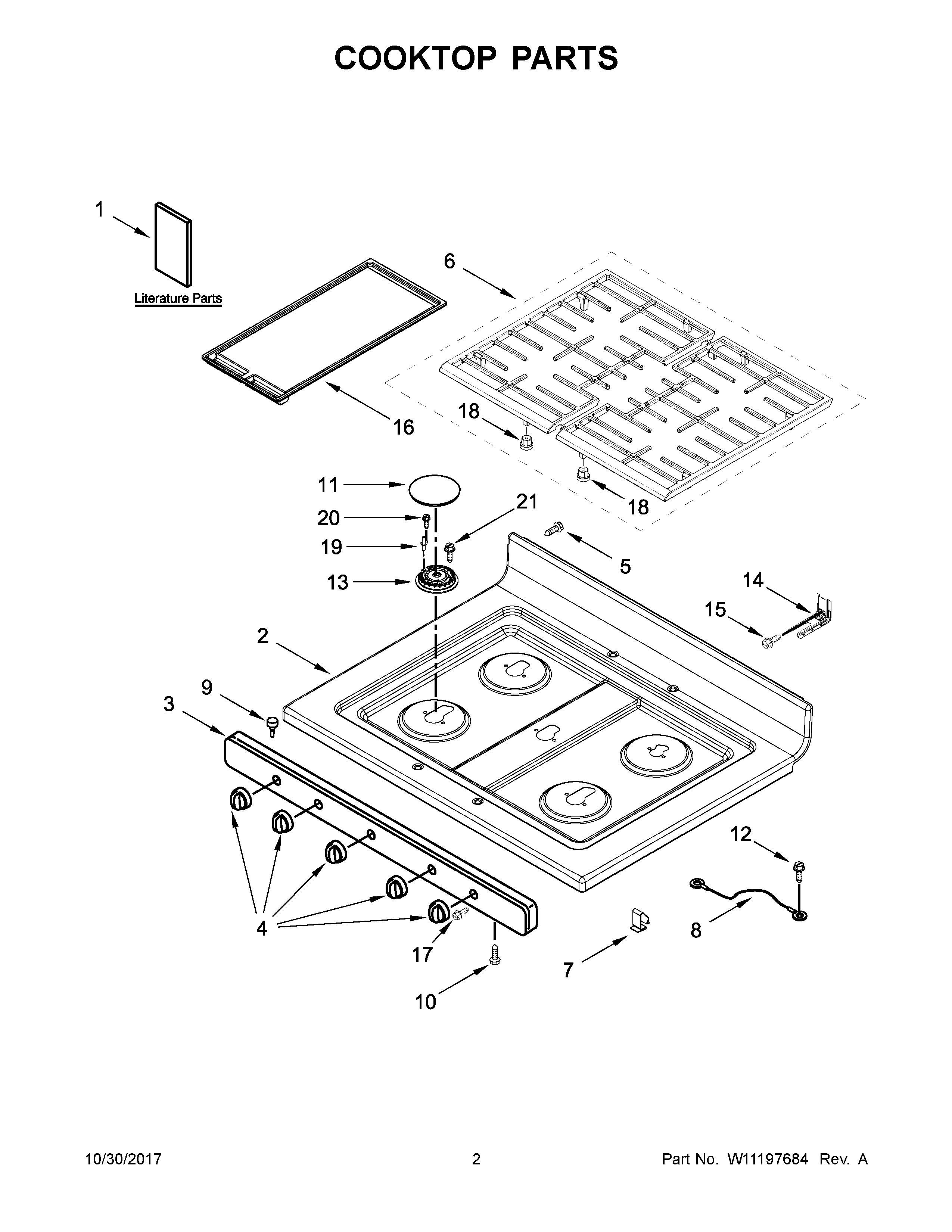

WFG505M0BW1 02 – COOKTOP PARTS

Products

Position	Product
NI	W11628776 Whirlpool Wire Harness
NI	CLIP, WIRE
NI	WP3391018 Whirlpool Wire Tie
NI	98015022 Whirlpool Bushing Assembly
NI	3196696 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	549193 Whirlpool Refrigerator Power Clamp
1C	Safer Cooking Tips (French)
1D	SHEET, TECH
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1B	Safer Cooking Tips
2	WPW10527866 Whirlpool Cooktop Assembly
2A	WPW10527865 Whirlpool Cooktop
3	W10620550 Whirlpool Manifold Panel
3A	W10620549 Whirlpool Manifold Panel
4A	WPW10339443 Whirlpool Knob
4	WPW10339442 Whirlpool Range Black Burner Control Knob
5	WP98007225 Whirlpool Screw Assembly
6	W10620480 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11B	WPW10183370 Whirlpool Burner Cap
11A	WPW10183369 Whirlpool Burner Cap
11	WPW10183368 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13B	WPW10515453 Whirlpool Burner Head
13	WPW10515455 Whirlpool Burner Head
13A	WPW10515454 Whirlpool Burner Head
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	W10554125 Whirlpool Griddle
17	SCREW (STAINLESS)
18	W10919249 Whirlpool Burner Grate Foot
19	WPW10515459 Whirlpool Surface Igniter
20	WP8273062 Whirlpool Screw
21	WP3368921 Whirlpool Screw
