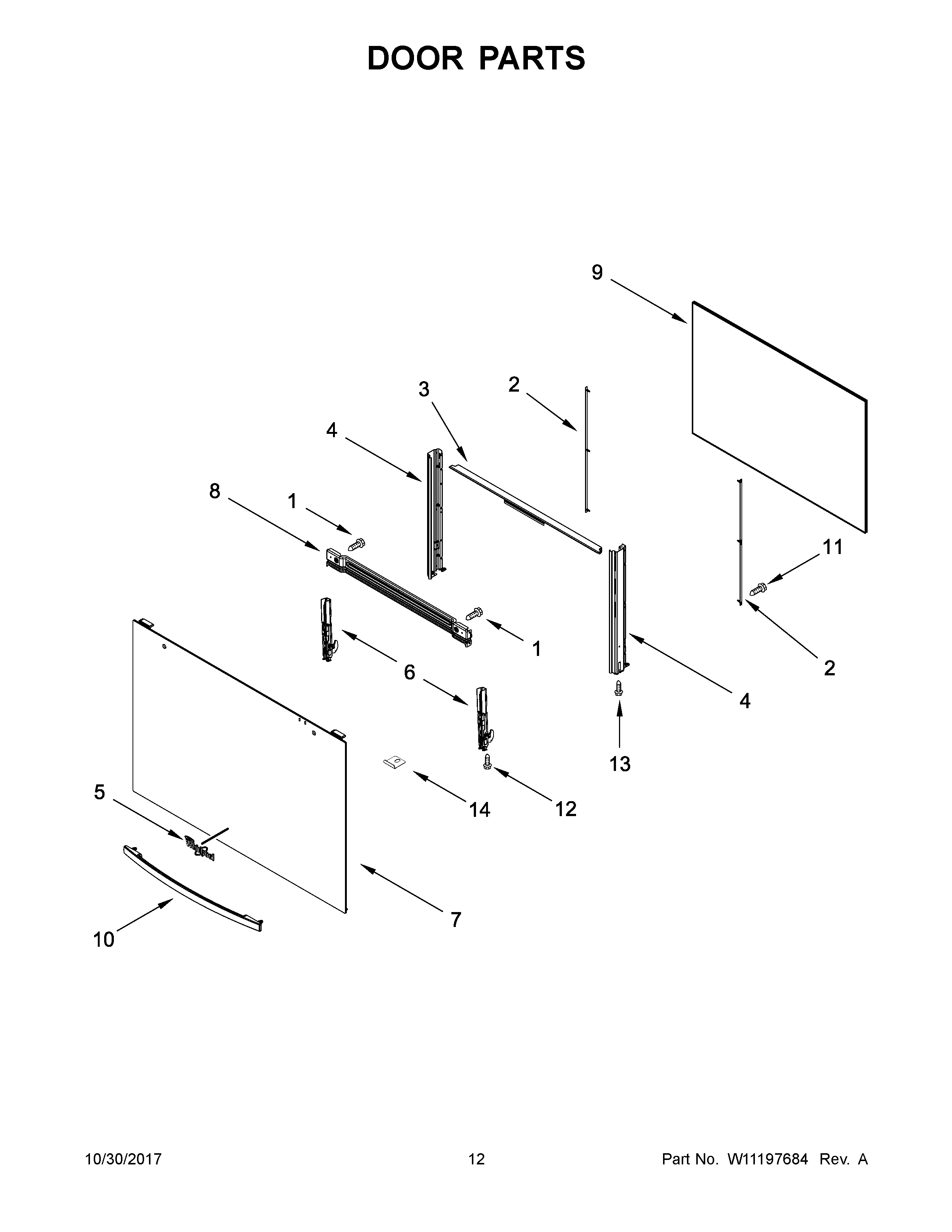

WFG505M0BW1 07 – DOOR PARTS

Products

Position	Product
1	WPW10277003 Whirlpool Screw
2	W11104748 Whirlpool Door Gasket
3	W11105139 Whirlpool Glass Bracket
4A	W11232008 Whirlpool Door Trim
4	W11209792 Whirlpool Door Trim
5A	W11178521 Whirlpool Dishwasher Nameplate
6	W10857234 Whirlpool Door Hinge
7A	WPW10535777 Whirlpool Door Glass Assembly
7	GLASS-DOOR
8	W11389703 Whirlpool Bracket
9	WPW10535767 Whirlpool Door Glass
10	W11205070 Whirlpool Door Handle
10A	W11105179 Whirlpool Door Handle
11	W11206744 Whirlpool Screw
12	W10837674 Whirlpool Screw
13	W10837731 Whirlpool Screw Assembly
14A	W11170320 Whirlpool Mounting Bracket
14	W10883315 Whirlpool Mounting Bracket
