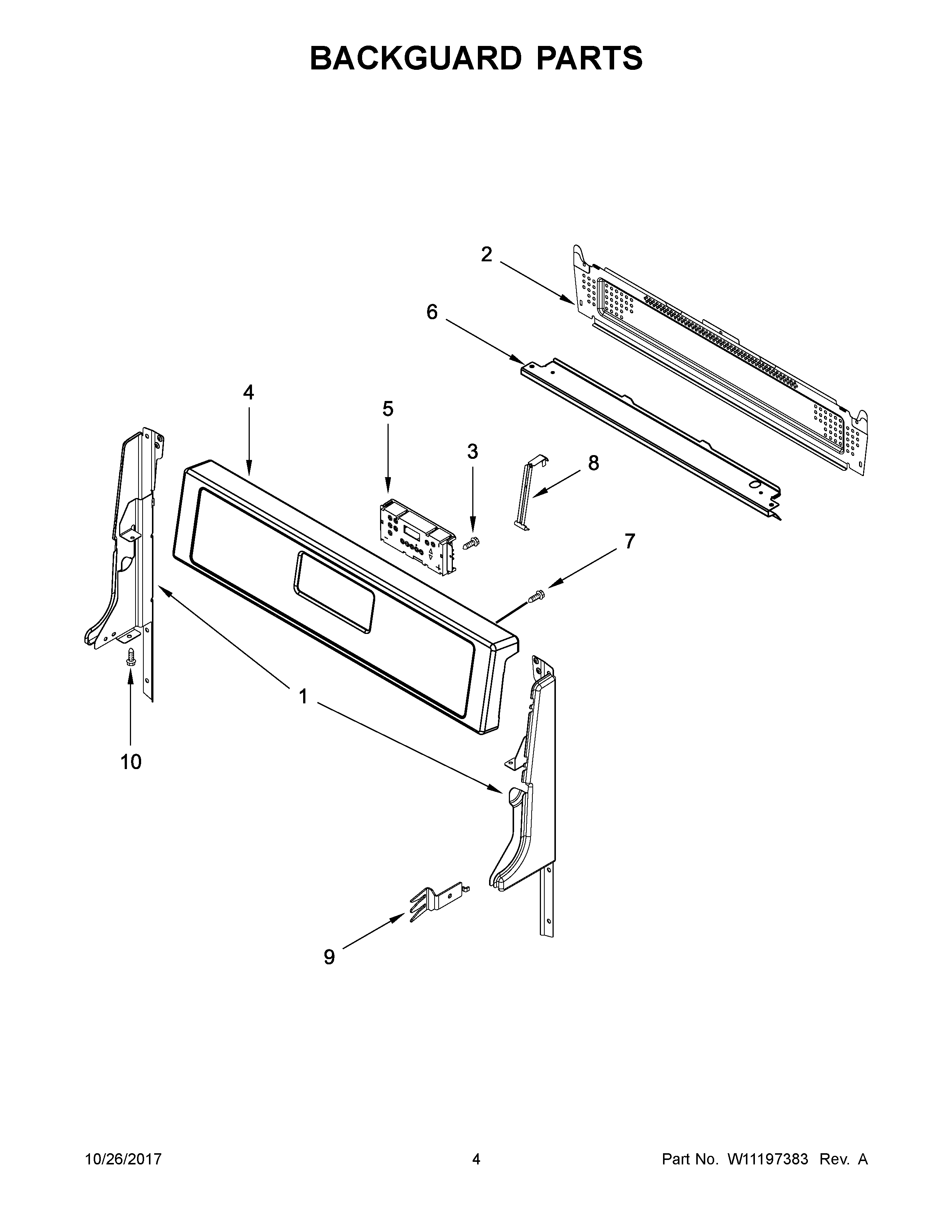

WFG505M0BW2 03 – BACKGUARD PARTS

Products

Position	Product
1C	W10873438 Whirlpool Endcap Panel
1B	W10873107 Whirlpool Panel Endcap
1	W10873109 Whirlpool Endcap Panel
1A	W10873441 Whirlpool Panel Endcap
2	W10588614 Whirlpool Rear Cover Assembly
3	SCREW
4B	W11097777 Whirlpool Control Panel
4	W11121752 Whirlpool Control Panel
4A	W11171357 Whirlpool Control Panel
5A	W11113908 Whirlpool Electronic Control Board
5	W11126814 Whirlpool Refrigerator Electronic Control Board
6	W10535746 Whirlpool Deflector
7	WP98008545 Whirlpool Screw
7A	WP98008544 Whirlpool Screw Assembly
8	W11230932 Whirlpool Bracket Mounting
9	W10535815 Whirlpool Mounting Bracket
10	W10837731 Whirlpool Screw Assembly
