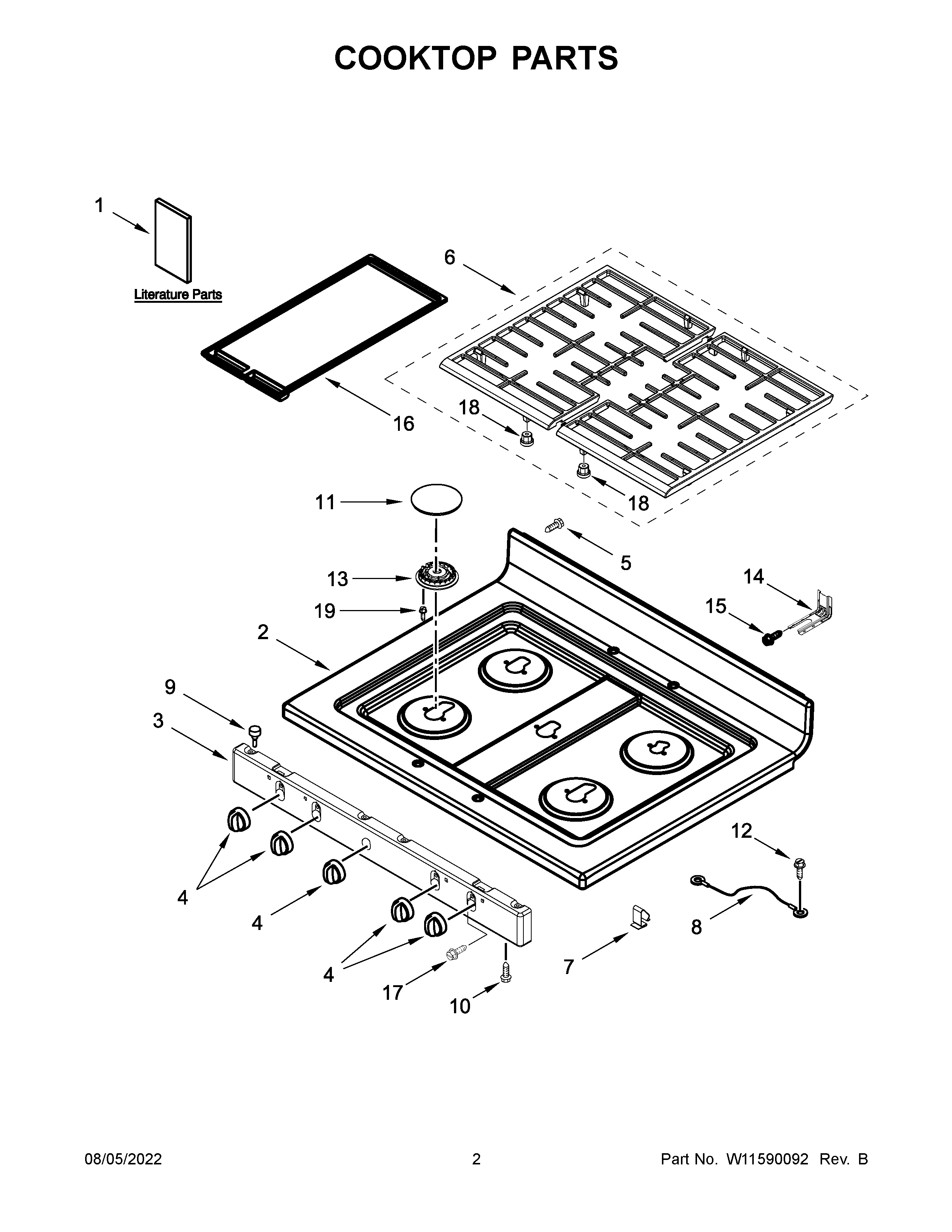

WFG505M0BW3 02 – COOKTOP PARTS

Products

Position	Product
NI	98015022 Whirlpool Bushing Assembly
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11628776 Whirlpool Wire Harness
NI	CLIP, WIRE
NI	WP3391018 Whirlpool Wire Tie
1A	GUIDE, USE AND CARE
1	INSTRUCTIONS, INSTALLATION
1B	SHEET, TECH
2	COOKTOP (WHITE)
3	W10620549 Whirlpool Manifold Panel
4	WPW10339443 Whirlpool Knob
5	WP98007225 Whirlpool Screw Assembly
6	W10620480 Whirlpool Burner Grate
7	CLIP, COOKTOP
8	3184020 Whirlpool Oven Wire
9	W10831827 Whirlpool Bumper
10	SCREW
11B	W11590057 Whirlpool Burner Cap
11A	W11590056 Whirlpool Burner Cap
11	W11590055 Whirlpool Burner Cap
12	W10850756 Whirlpool Screw
13	W11435630 Whirlpool Oven Burner Head
13A	W11435659 Whirlpool Burner Head
13B	W11435657 Whirlpool Burner Head
14	WPW10613666 Whirlpool Bracket
15	SCREW, ANTI-TIP KIT
16	W10554125 Whirlpool Griddle
17	SCREW (STAINLESS)
18	W10919249 Whirlpool Burner Grate Foot
19	W11241230 Whirlpool Screw
