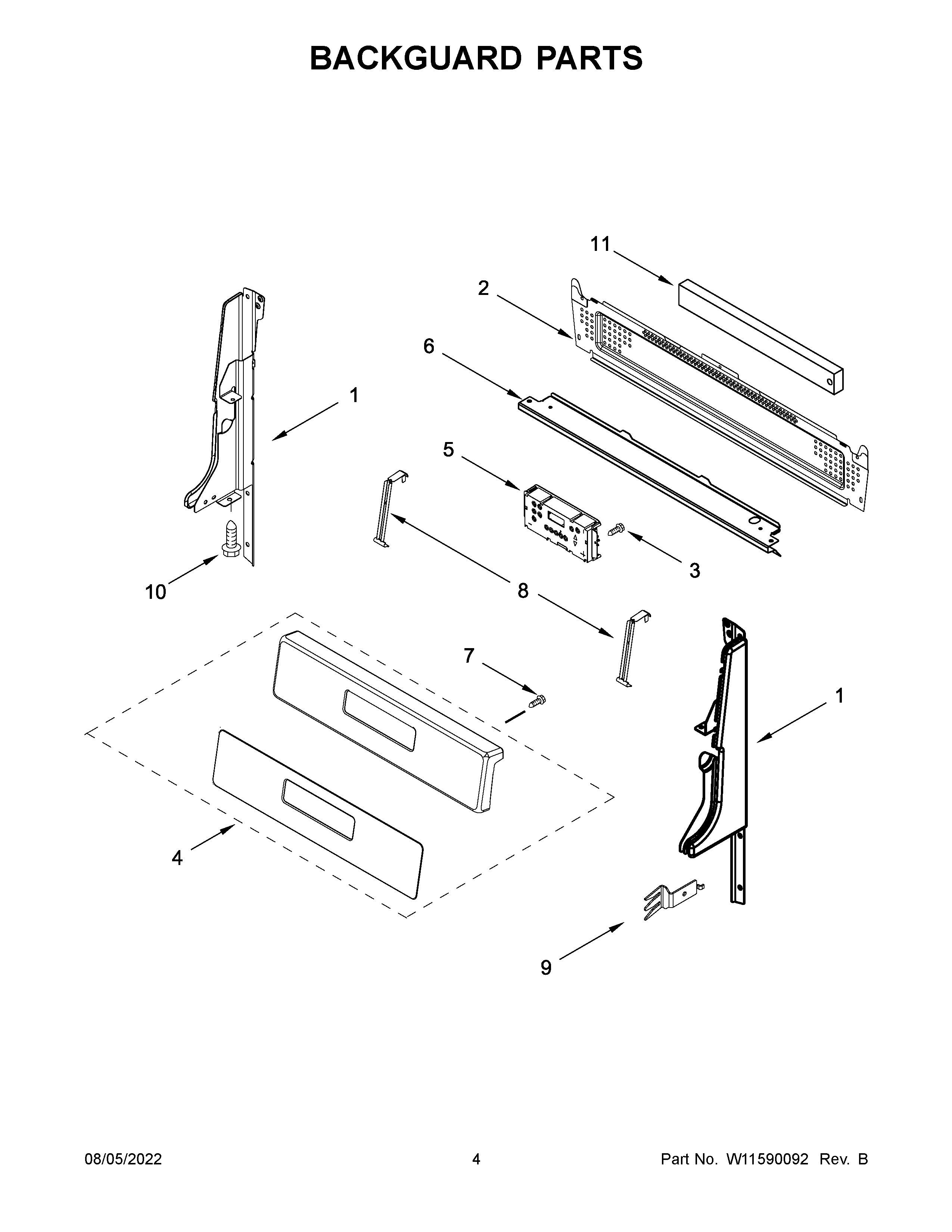

WFG505M0BW3 03 – BACKGUARD PARTS

WFG505M0BW3 03 – BACKGUARD PARTS

Written by

in

WFG505M0BW3 03 – BACKGUARD PARTS

Products

PositionProduct
1W10873441 Whirlpool Panel Endcap
1AW10873438 Whirlpool Endcap Panel
2W10588614 Whirlpool Rear Cover Assembly
3SCREW
4W11171357 Whirlpool Control Panel
5W11113908 Whirlpool Electronic Control Board
6W10535746 Whirlpool Deflector
7WP98008544 Whirlpool Screw Assembly
8W11230932 Whirlpool Bracket Mounting
9W10535815 Whirlpool Mounting Bracket
10W10837731 Whirlpool Screw Assembly
11INSULATION, BACK GUARD
