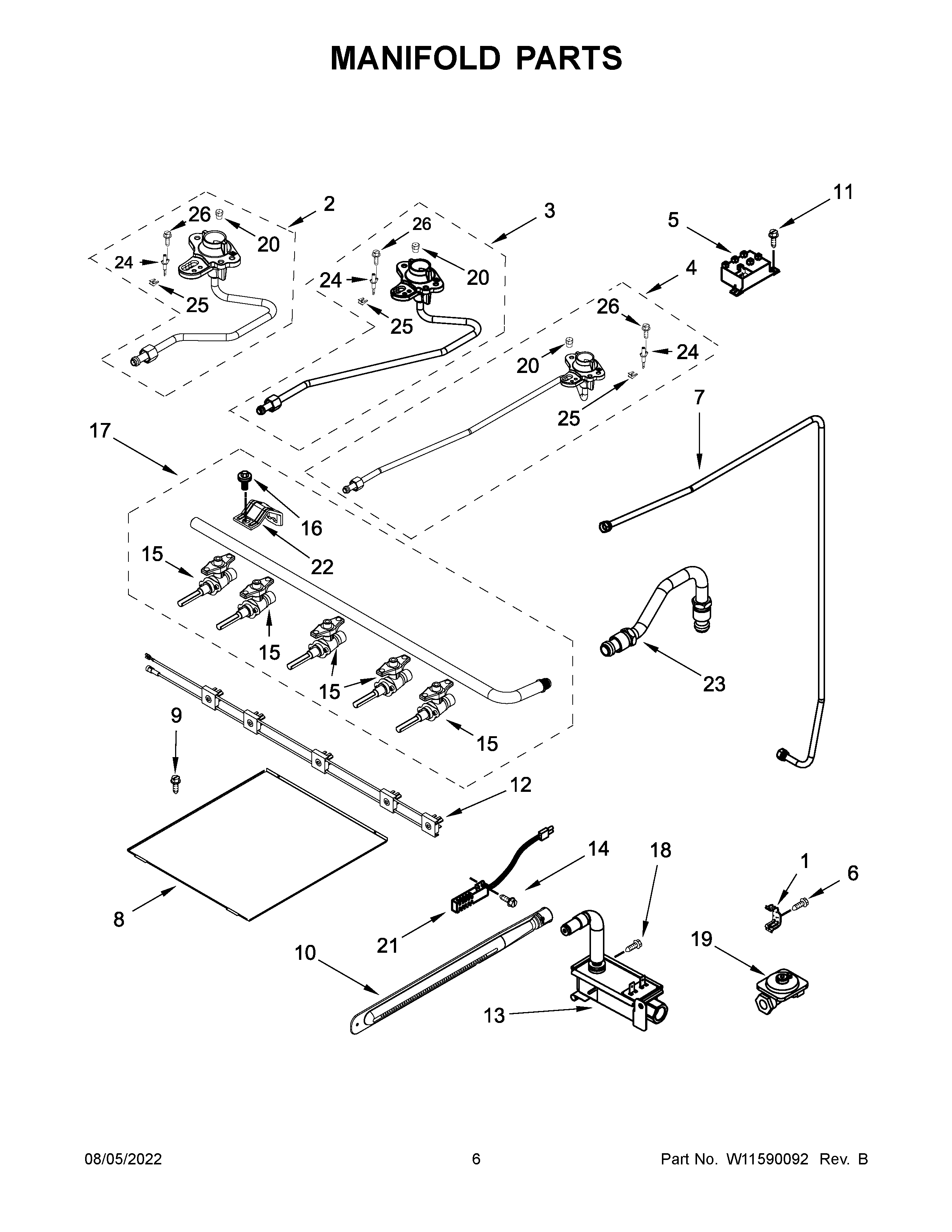

WFG505M0BW3 04 – MANIFOLD PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10619560 Whirlpool LP Conversion Kit
1	98007410 Whirlpool Oven Mounting Bracket
2A	W11590059 Whirlpool Orifice Holder
2	W11590058 Whirlpool Orifice Holder
3	ASSEMBLY, TUBING (CENTER)
4	W11590060 Whirlpool Orifice Holder
4A	W11590248 Whirlpool Orifice Holder
5	W11565127 Whirlpool Spark Module
6	WP98007225 Whirlpool Screw Assembly
7	W11628651 Whirlpool Gas Tubing
8	W11688713 Whirlpool Burner Baffle
9	WP3400832 Whirlpool Screw
10	W11220387 Whirlpool Oven Burner
11	W10837731 Whirlpool Screw Assembly
12	W10836473 Whirlpool Wire Harness
13	W11590251 Whirlpool Gas Valve
14	W11676351 Whirlpool Screw
15B	VALVE, SADDLE (RIGHT REAR)
15	W11590252 Whirlpool Burner Valve
15A	VALVE, SADDLE (LEFT REAR)
16	98017517 Whirlpool Oven Screw
17	W11450018 Whirlpool Manufactured Pipe
18	98013634 Whirlpool Oven Screw
19	W11590292 Whirlpool Regulator
20B	W11590293 Whirlpool Orifice Spud
20A	ORIFICE (8K) (CENTER)
20	W11700316 Whirlpool Orifice
20C	W11712434 Whirlpool Orifice
21	IGNTR-OVEN
22	W10574737 Whirlpool Mounting Bracket
23	W11684515 Whirlpool Range Gas Tubing
24	W11688146 Whirlpool Surface Igniter
24A	W11666003 Whirlpool Range Surface Igniter
25	W11684564 Whirlpool Clip Assembly
26	W11241230 Whirlpool Screw
