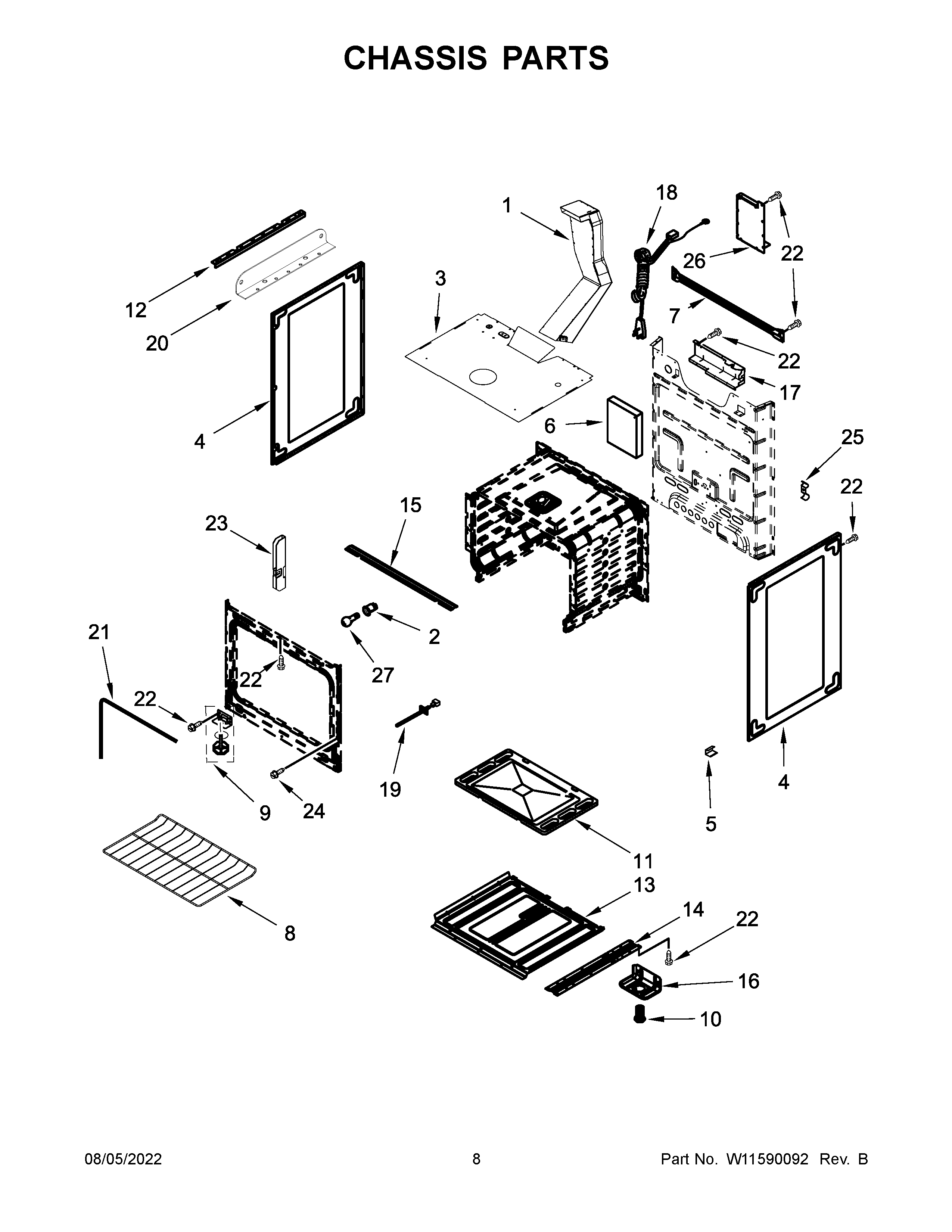

WFG505M0BW3 05 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10537475 Whirlpool Insulation
NI	W11688850 Whirlpool Insulation
NI	98004294 Whirlpool Insulation Wire
1	BOX, FLUE
2	W10856866 Whirlpool Light Socket
3	W10636342 Whirlpool Shield
4A	W10816996 Whirlpool Side Panel
5	CLIP, OVEN BOTTON
6	COUNTERWEIGHT (BLACK AND WHITE MODELS)
7	98015363 Whirlpool Oven Support
8	WPW10550642 Whirlpool Oven Rack
9	W10819918 Whirlpool Leveling Foot
10	WPW10058460 Whirlpool Appliance Levelling Leg
11	W11098799 Whirlpool Oven Bottom Assembly
12	W10577312 Whirlpool Brace Panel
13	W10670197 Whirlpool Microwave Bottom Baffle
14	W10520269 Whirlpool Base Rail
15	W10545322 Whirlpool Support
16	BRACKET, FOOT
17	W10549293 Whirlpool Access Cover
18	W11173616 Whirlpool Power Cord
19	WPW10181986 Whirlpool Oven Sensor
20	SIDE PANEL, SUPPORT
21	GASKT-DOOR RANGE
22	W10837731 Whirlpool Screw Assembly
23	W11161898 Whirlpool Hinge Receiver
24	WP98008545 Whirlpool Screw
25	CLIP, TUBING
26	W10538845 Whirlpool Access Cover
27	W10888179 Whirlpool Light Bulb Assembly
